407 - 12-9193

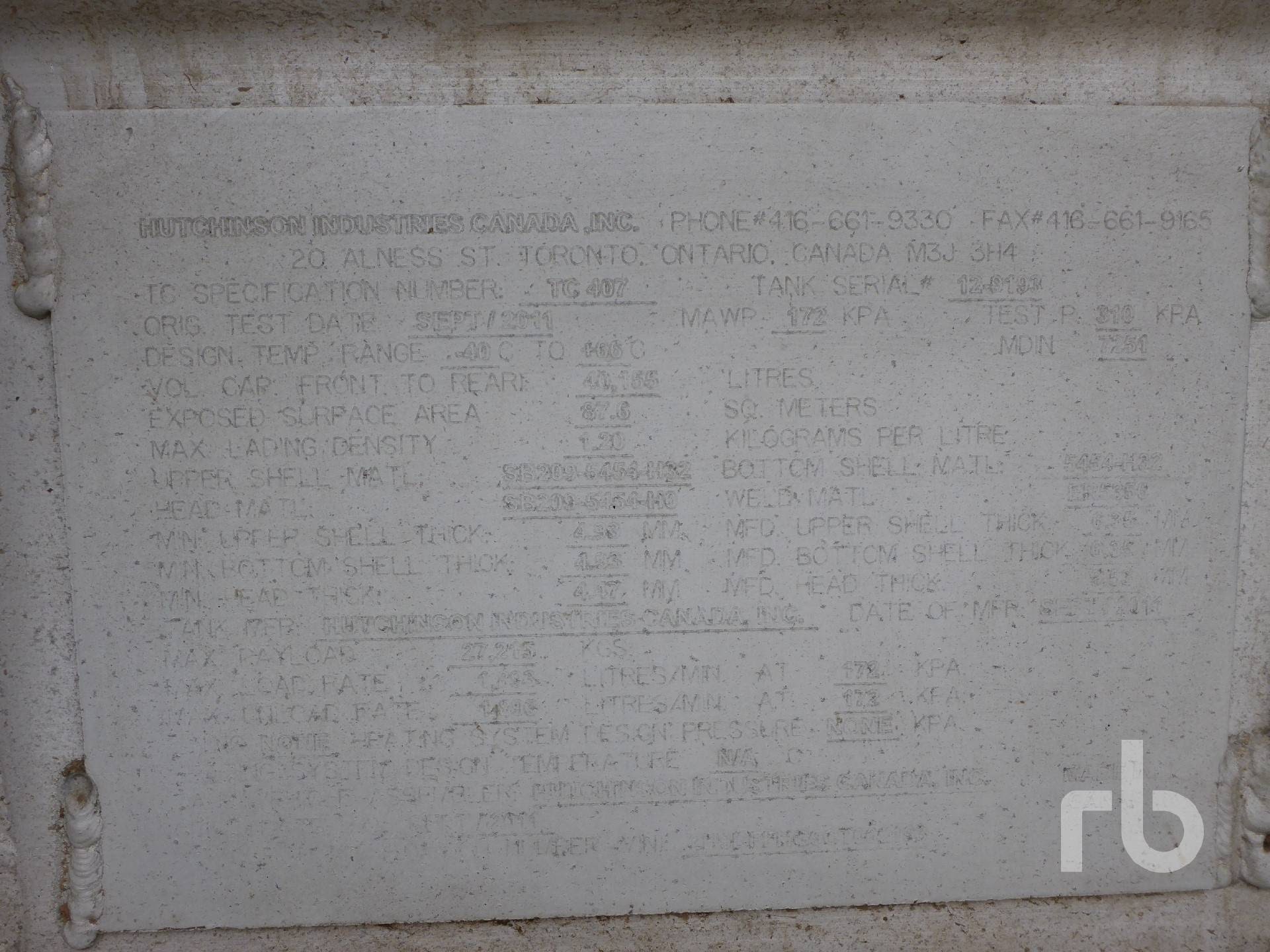

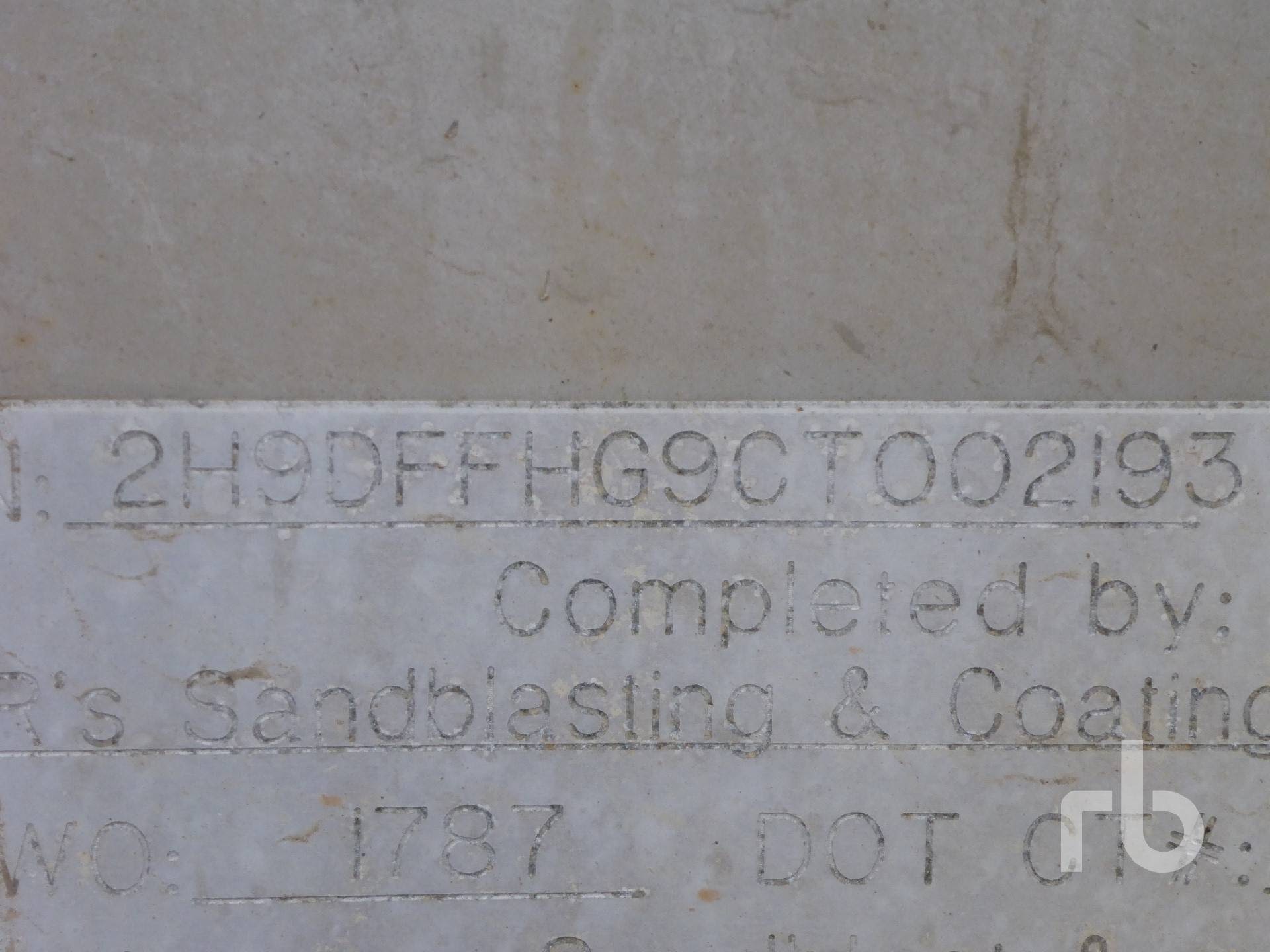

Identification Plate Images
Key Information
- Pic Number
- 131
- Specification
- 407
- Serial Number
- 12-9193
- Manufacturer
- Hutchinson
- MFG Year
- 2011
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 45.0 psi
- Temperature Range
- -40 to 66
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 40155 L
- Max Payload
- 27215 kg
- Max Density
- 1.2 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.375 | 0.176 |
| Top Shell | 0.25 | 0.194 |
| Bottom Shell | 0.25 | 0.194 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 40155 | 87.6 |
