407 - G1-45677

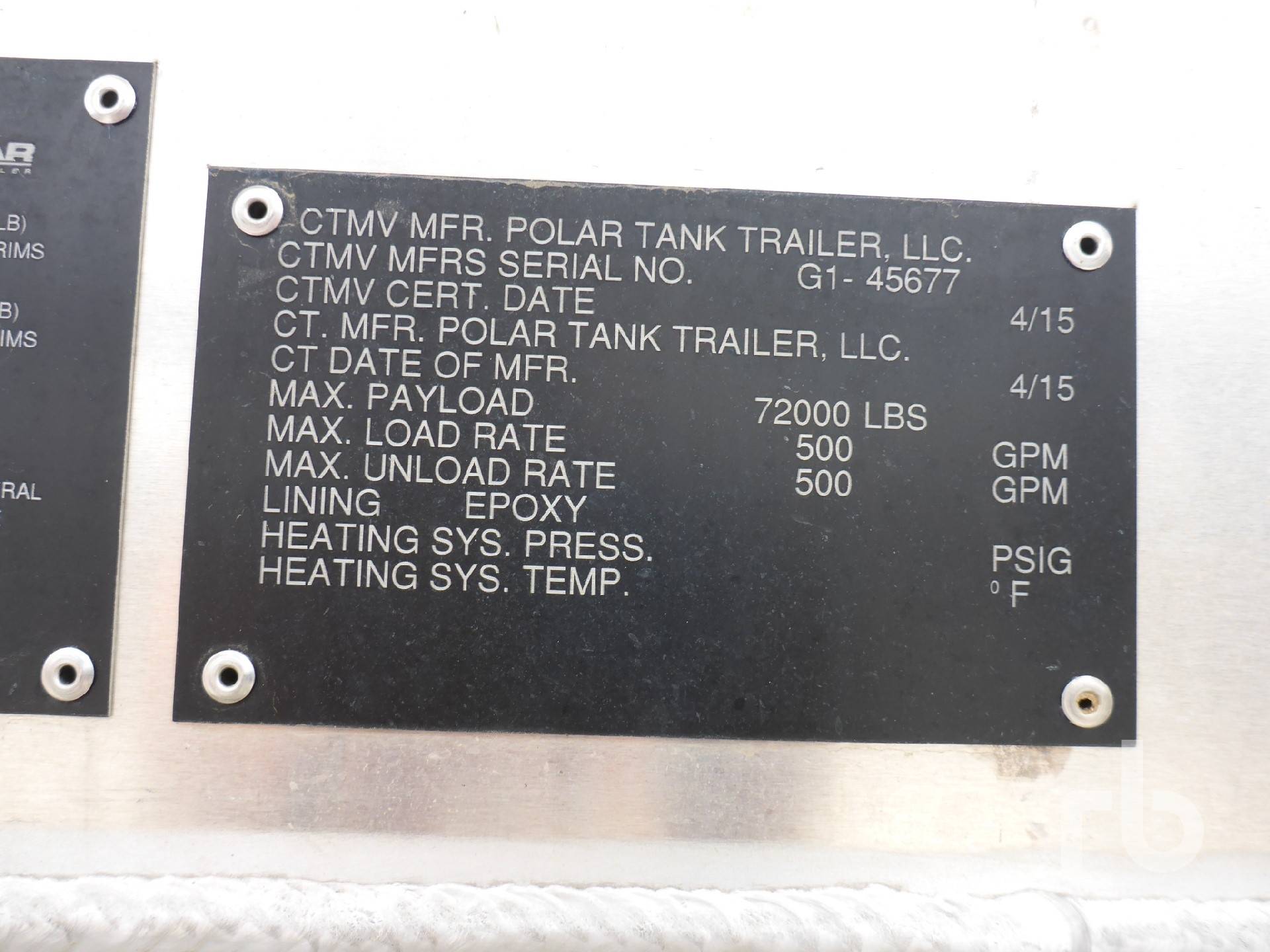

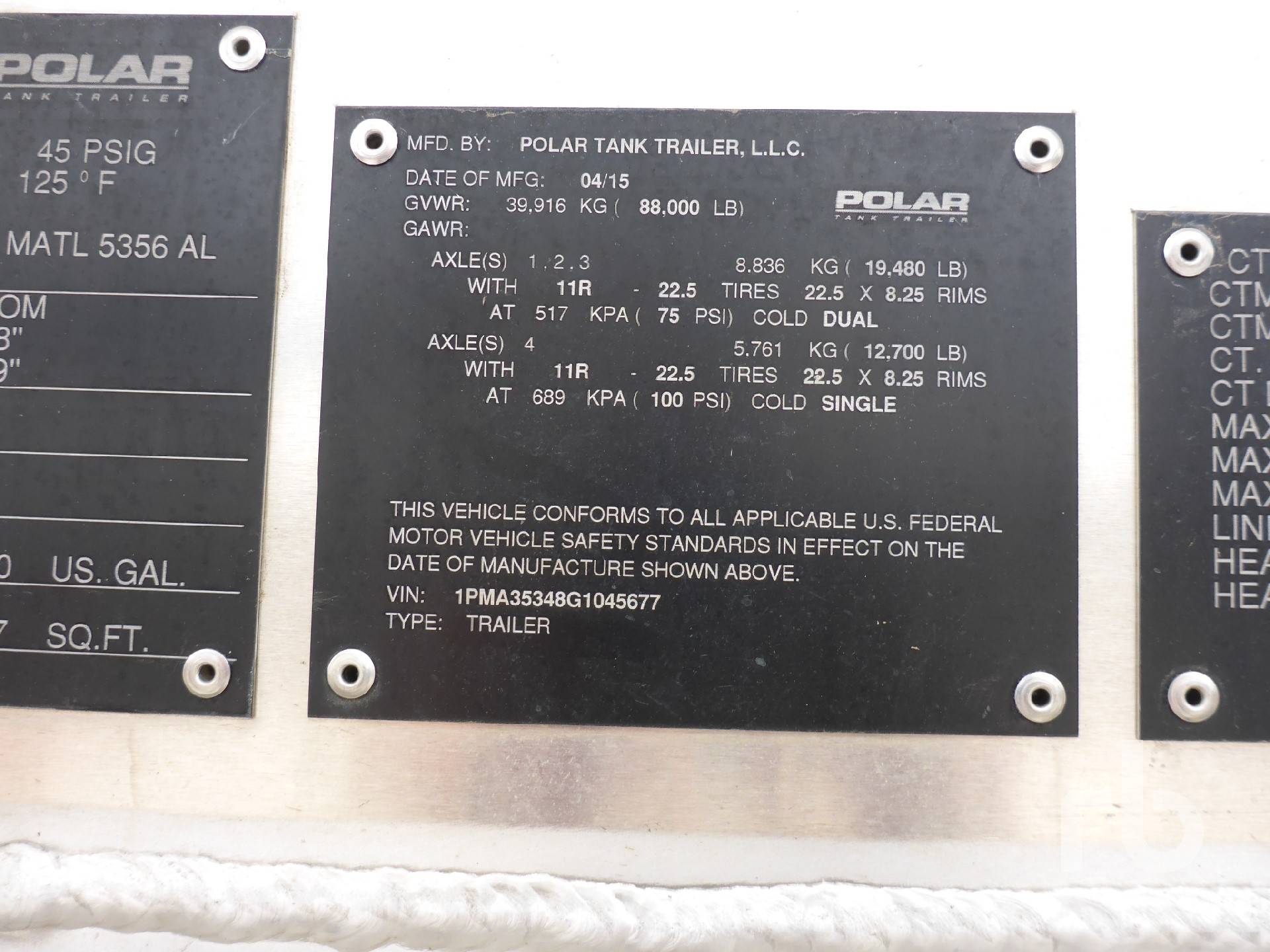

Identification Plate Images
Key Information
- Pic Number
- 134
- Specification
- 407
- Serial Number
- G1-45677
- Manufacturer
- Polar Tank
- MFG Year
- 2015
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 45.0 psi
- Temperature Range
- -20 to 125F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 45425 L
- Max Payload
- 32659 kg
- Max Density
- 1.56 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.375 | 0.239 |
| Top Shell | 0.219 | 0.194 |
| Side Shell | 0.219 | 0.194 |
| Bottom Shell | 0.249 | 0.238 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 22712 | 49.9 |
| 2 | 22712 | 49.9 |
