406 - NULL6-217?1-2A

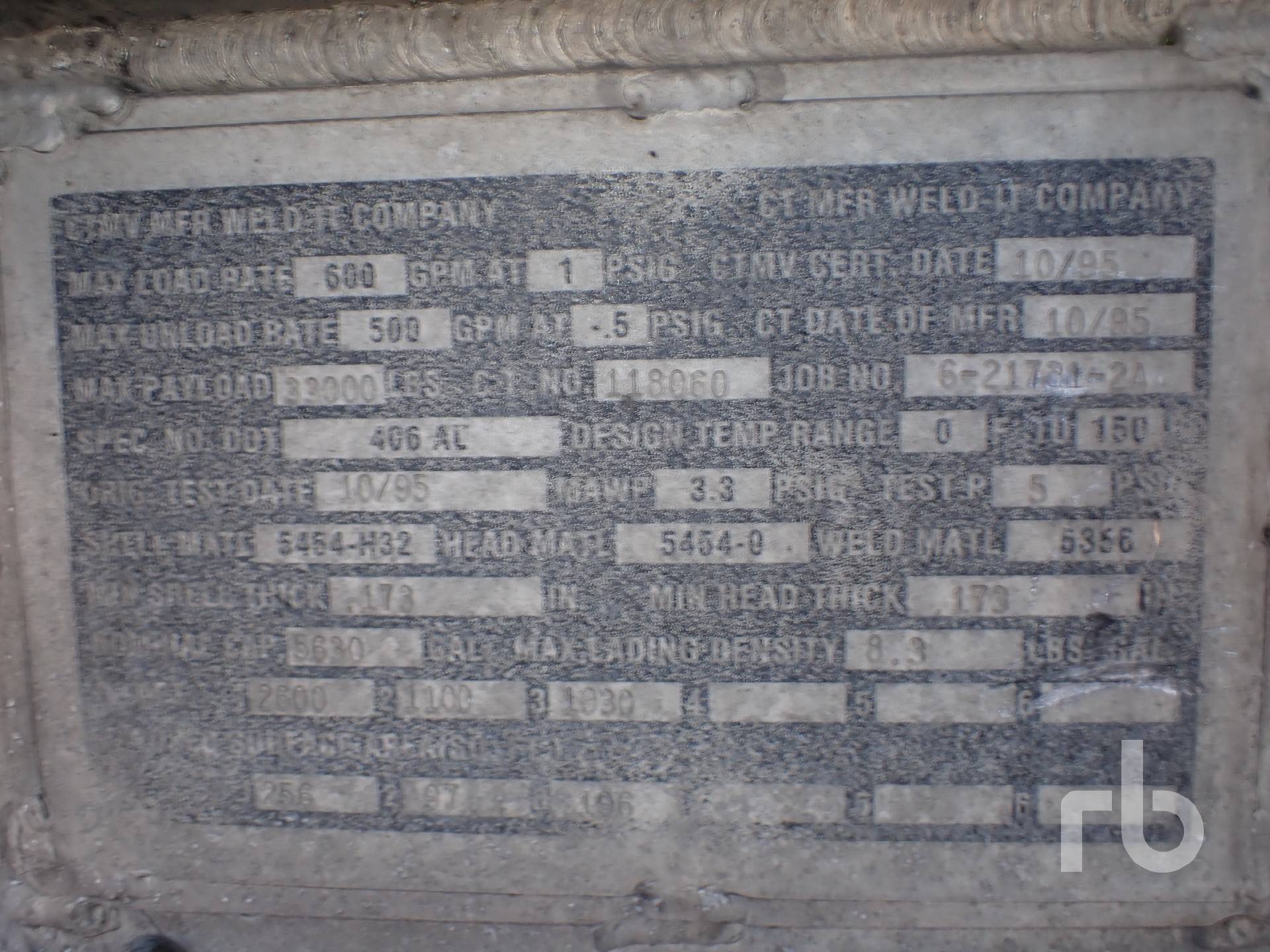

Identification Plate Images
Key Information
- Pic Number
- 172
- Specification
- 406
- Serial Number
- NULL6-217?1-2A
- Manufacturer
- Weld-It Company
- MFG Year
- 1995
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- 0 to 150F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 21312 L
- Max Payload
- 14969 kg
- Max Density
- 0.99 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | - | 0.173 |
| Shell | - | 0.173 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 9842 | 23.8 |
| 2 | 4164 | 9 |
| 3 | 7306 | 18.2 |
