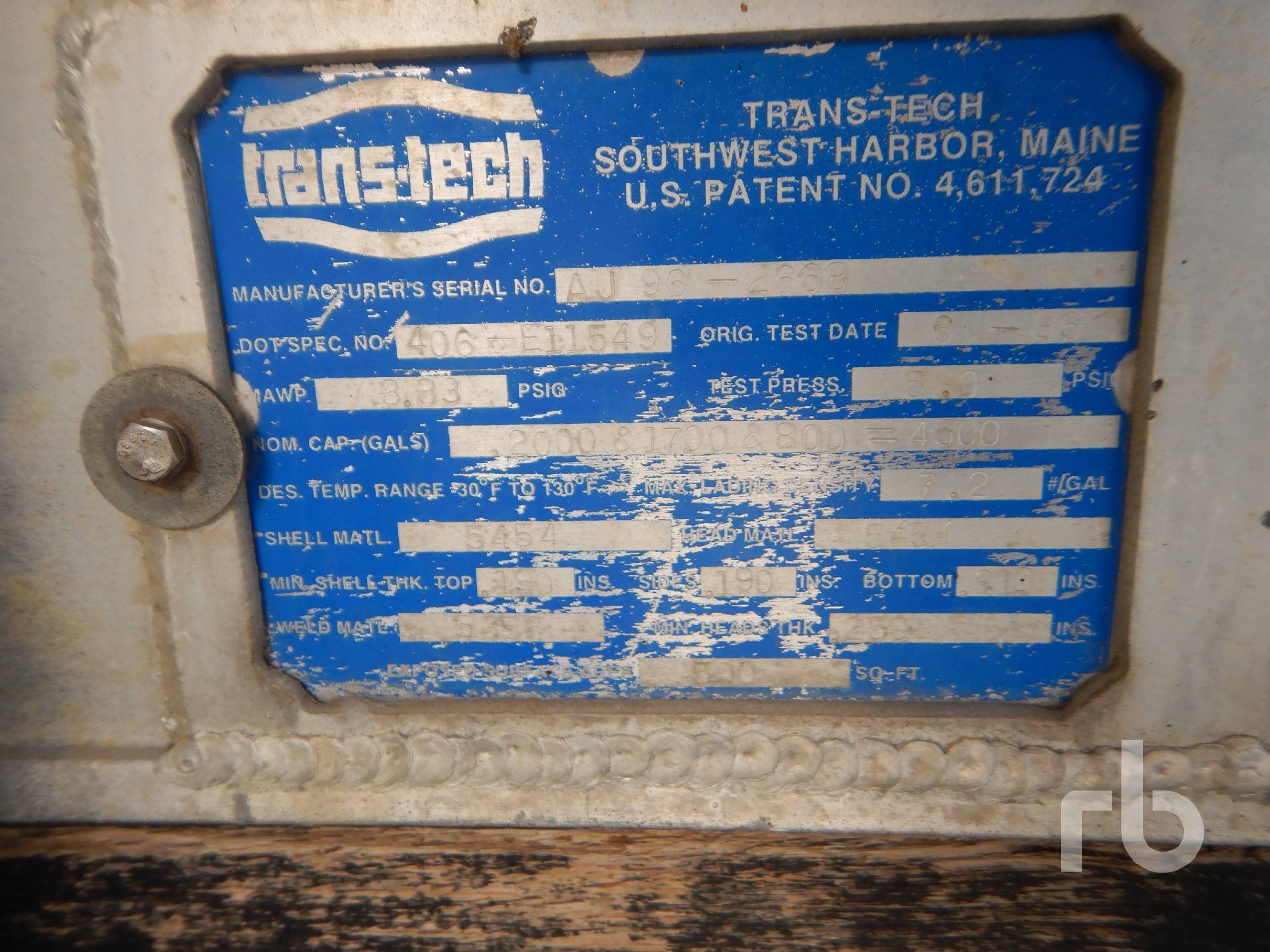

406 - AJ 96-2668
Key Information
- Pic Number
- 189
- Specification
- 406
- Serial Number
- AJ 96-2668
- Manufacturer
- Trans-Tech
- MFG Year
- 1996
Technical Specifications
- MAWP
- 3.33 psi
- Test Pressure
- 5.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 17034 L
- Max Payload
- 14696 kg
- Max Density
- 0.86 kg/L
Component Thickness Details
Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
---|---|---|
Head | - | 0.25 |
Top Shell | - | 0.19 |
Side Shell | - | 0.19 |
Compartment Details
Compartment | Volume (L) | Exposed Surface (sq.m) |
---|---|---|
1 | 7571 | - |
2 | 6435 | - |
3 | 3028 | - |
