406 - 50484

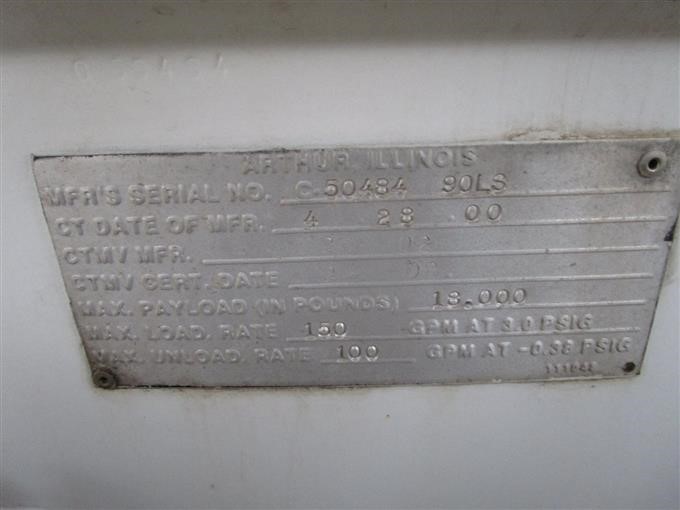

Identification Plate Images
Key Information
- Pic Number
- 199
- Specification
- 406
- Serial Number
- 50484
- Manufacturer
- Progress Tank
- MFG Year
- 2000
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40 to 140F
- Head Material
- ASTM A569
- Shell Material
- ASTM A569
- Weld Material
- ER-70S-7
- Total Volume
- 9464 L
- Max Payload
- 8165 kg
- Max Density
- 0.86 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | - | 0.129 |
| Top Shell | - | 0.129 |
| Side Shell | - | 0.129 |
| Bottom Shell | - | 0.129 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 2650 | 9.3 |
| 2 | 2271 | 5 |
| 3 | 1893 | 3.4 |
| 4 | 1514 | 3.6 |
| 5 | 1136 | 6.9 |
