406 - 1PMA24324W5001520

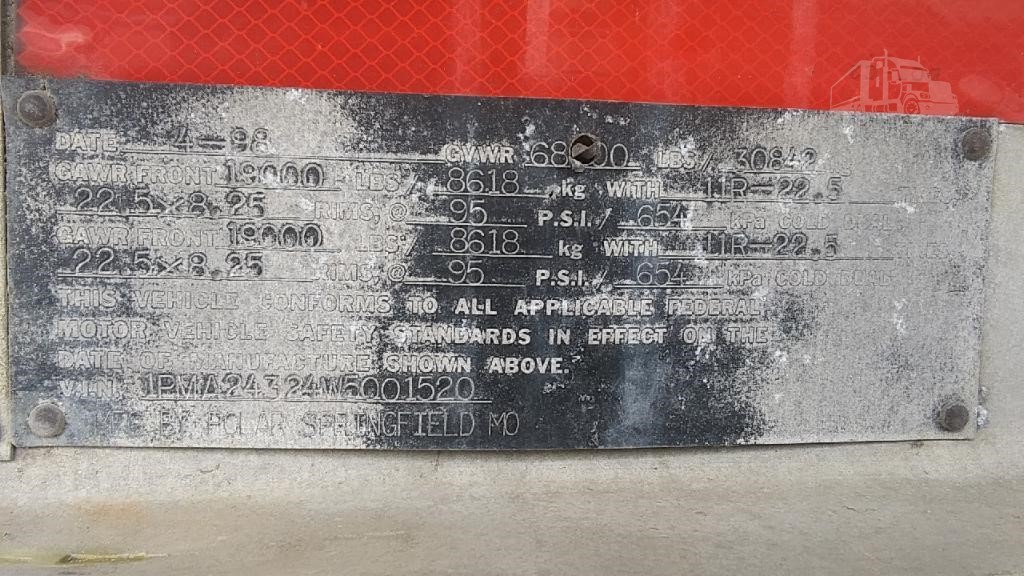

Identification Plate Images
Key Information
- Pic Number
- 202
- Specification
- 406
- Serial Number
- 1PMA24324W5001520
- Manufacturer
- Polar Tank
- MFG Year
- 1998
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -20 to 120F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 35961 L
- Max Density
- 0.86 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 13249 | 30.2 |
| 2 | 7571 | 17.8 |
| 3 | 4542 | 11.6 |
| 4 | 10599 | 24.1 |
