406 - 1PMA24428W5001325

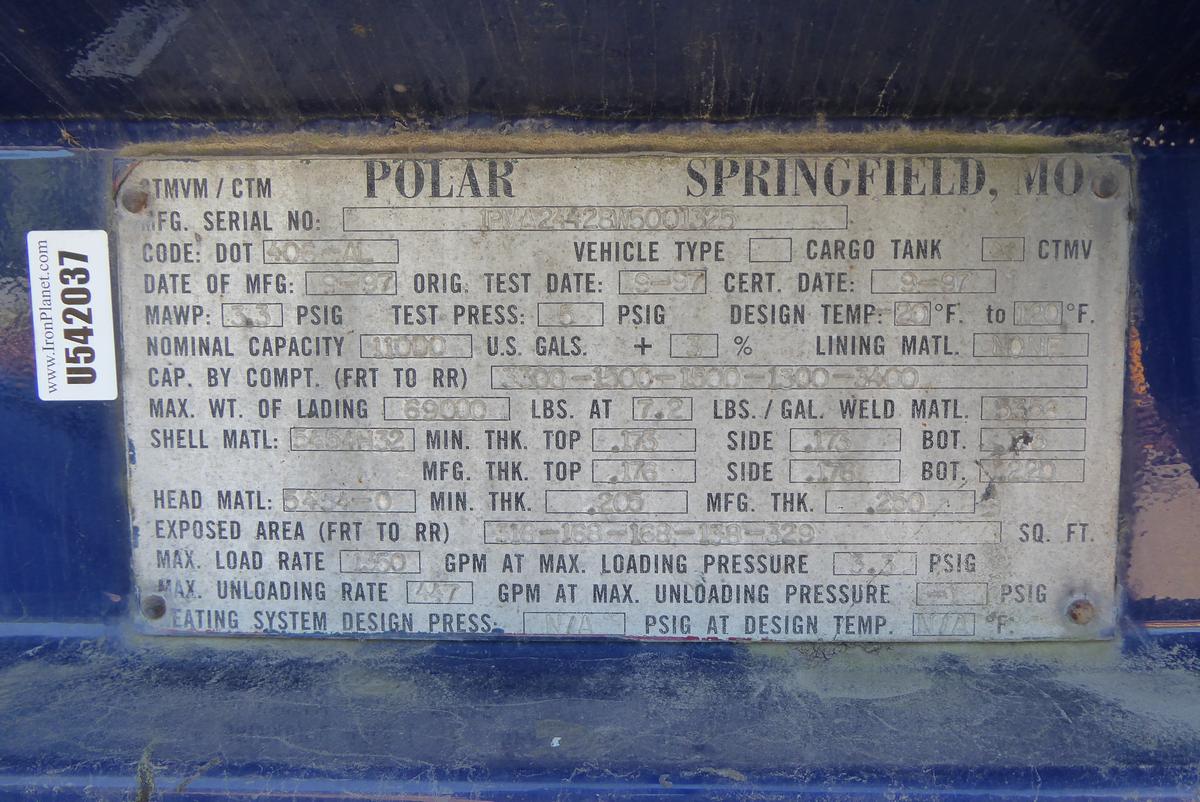

Identification Plate Images
Key Information
- Pic Number
- 203
- Specification
- 406
- Serial Number
- 1PMA24428W5001325
- Manufacturer
- Polar Tank
- MFG Year
- 1997
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -20 to 120F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 41640 L
- Max Density
- 0.86 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.205 |
| Top Shell | 0.176 | 0.173 |
| Side Shell | 0.176 | 0.173 |
| Bottom Shell | 0.22 | 0.173 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 12492 | 29.4 |
| 2 | 5678 | 15.6 |
| 3 | 5678 | 15.6 |
| 4 | 4921 | 12.8 |
| 5 | 12870 | 30.6 |
