406 - 2AEASYAH3XR000338

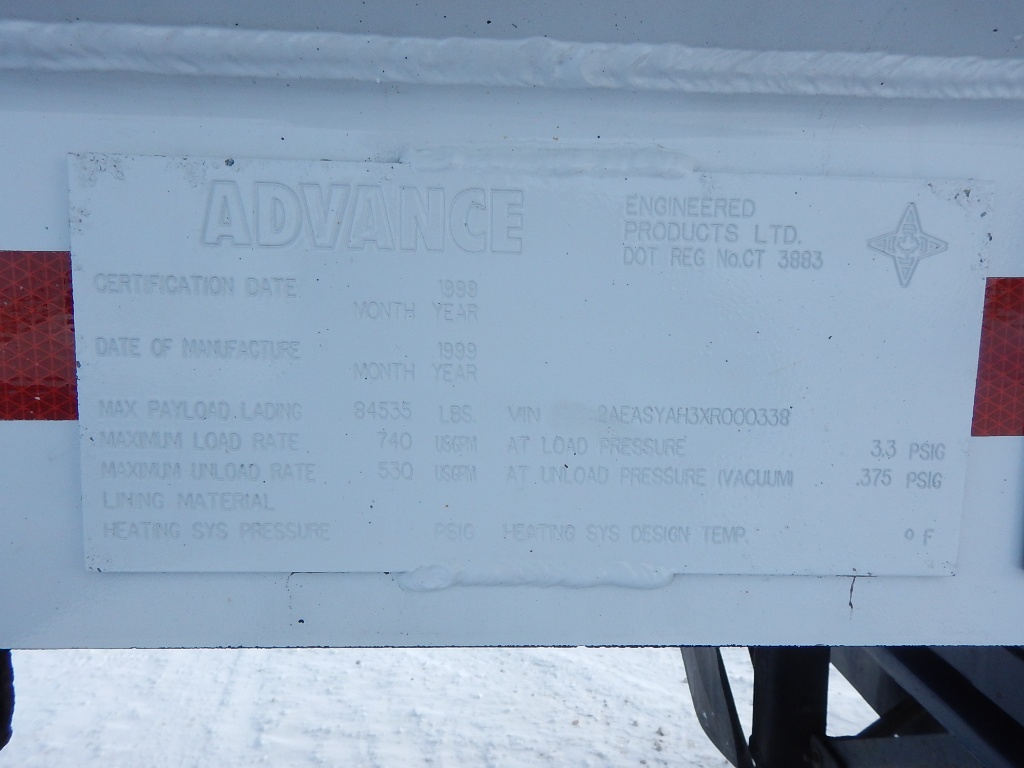

Identification Plate Images
Key Information
- Pic Number
- 205
- Specification
- 406
- Serial Number
- 2AEASYAH3XR000338
- Manufacturer
- Advance
- MFG Year
- 1999
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40 to 120F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 52504 L
- Max Payload
- 38344 kg
- Max Density
- 0.84 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.235 |
| Shell | 0.188 | 0.173 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 16001 | 31.4 |
| 2 | 5500 | 8.7 |
| 3 | 6999 | 11.3 |
| 4 | 9002 | 14.7 |
| 5 | 15002 | 29.6 |
