406 - 5HTAB4428X7H62655

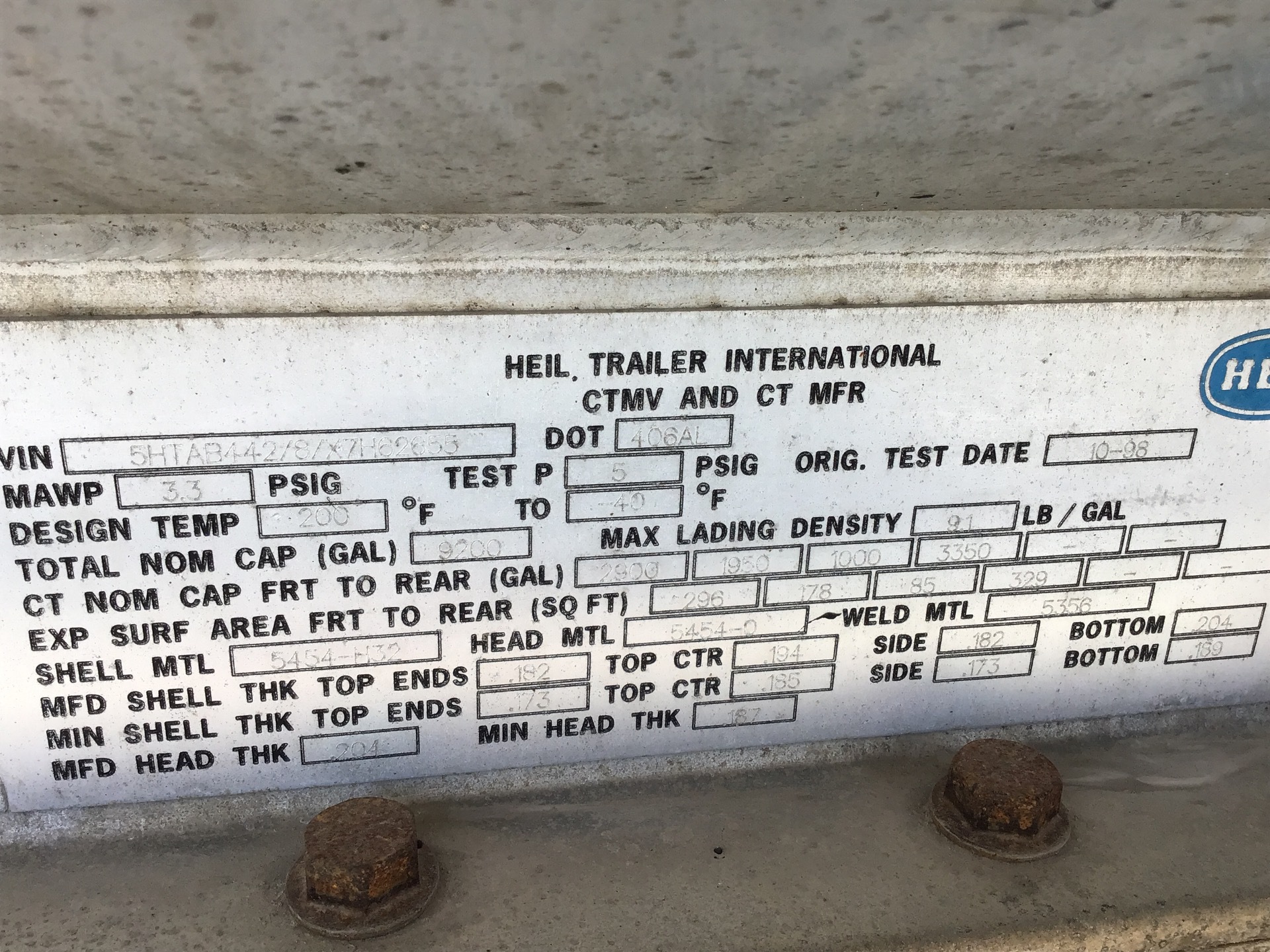

Identification Plate Images
Key Information
- Pic Number
- 211
- Specification
- 406
- Serial Number
- 5HTAB4428X7H62655
- Manufacturer
- Heil
- MFG Year
- 1998
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- 200F to -40F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 34826 L
- Max Density
- 1.09 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.204 | 0.187 |
| Top Shell | 0.182 | 0.173 |
| Side Shell | 0.182 | 0.173 |
| Bottom Shell | 0.204 | 0.189 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 10978 | 27.5 |
| 2 | 7382 | 16.5 |
| 3 | 3785 | 7.9 |
| 4 | 12681 | 30.6 |
