406 - 5HTAB4322X7H63463

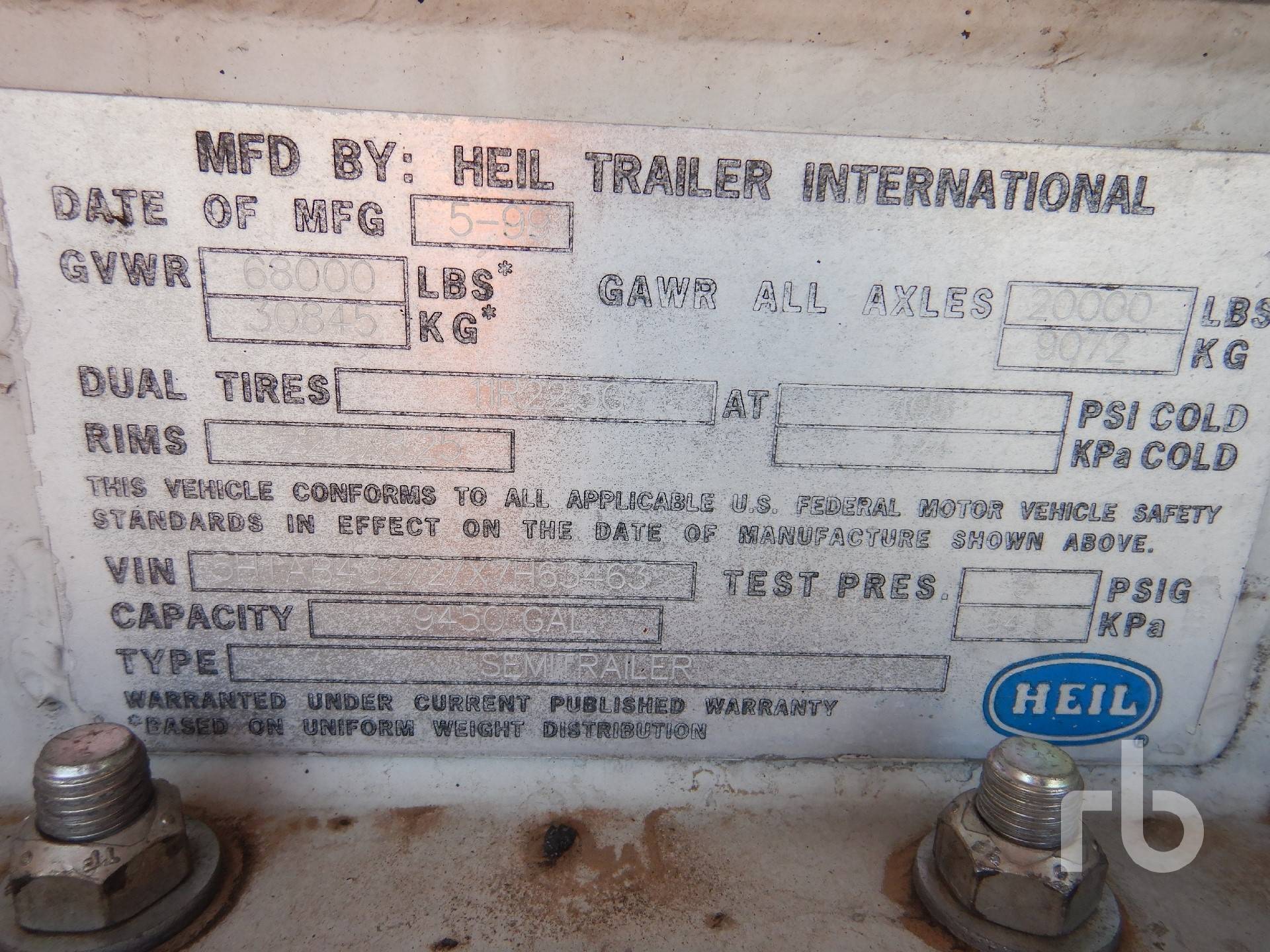

Identification Plate Images
Key Information
- Pic Number
- 212
- Specification
- 406
- Serial Number
- 5HTAB4322X7H63463
- Manufacturer
- Heil
- MFG Year
- 1999
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- 200F to -40F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 35772 L
- Max Density
- 1.04 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 10410 | 24.8 |
| 2 | 6624 | 13.5 |
| 3 | 7571 | 15.4 |
| 4 | 11167 | 26.4 |
