406 - 5HTAM252/8/X7D63573

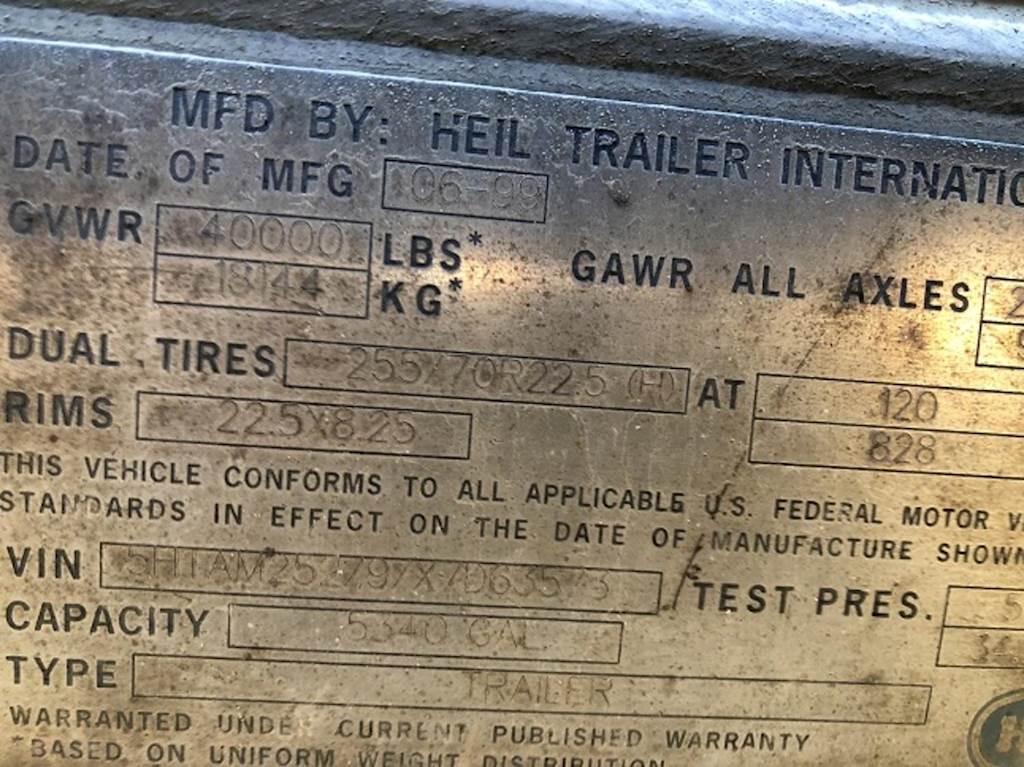

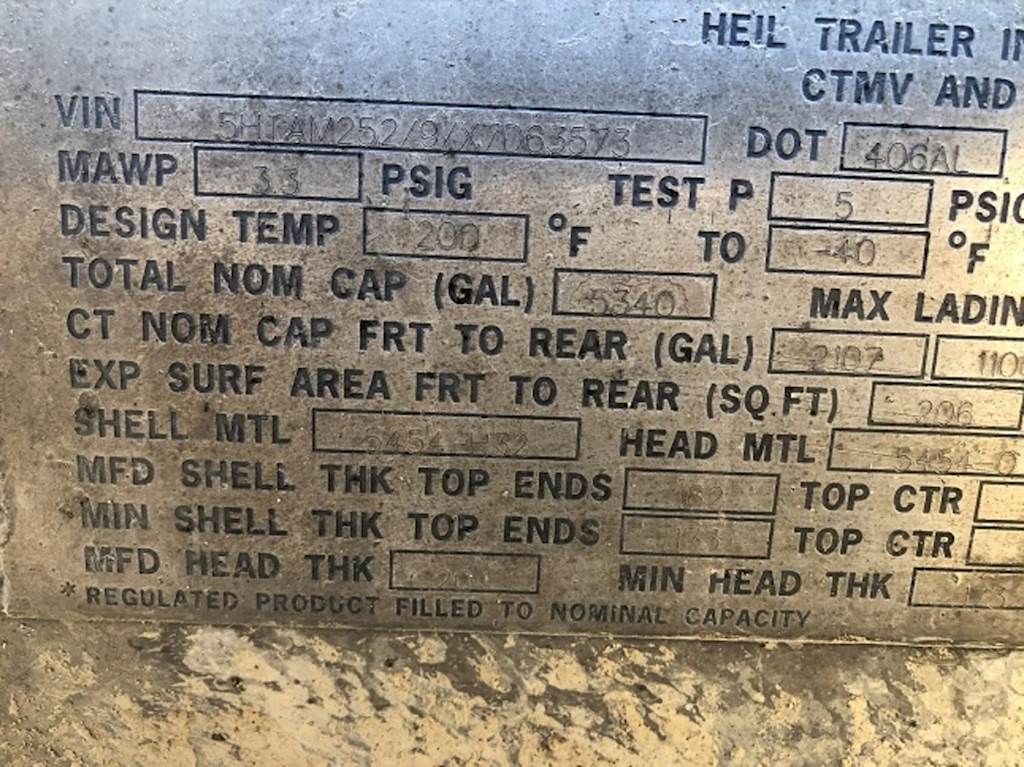

Identification Plate Images
Key Information
- Pic Number
- 214
- Specification
- 406
- Serial Number
- 5HTAM252/8/X7D63573
- Manufacturer
- Heil
- MFG Year
- 1998
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- 200F to -40F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 20116 L
- Max Density
- 0.93 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Top Shell | 0.182 | 0.173 |
| Side Shell | 0.182 | 0.173 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 7976 | 19.1 |
| 2 | 4164 | 7.8 |
| 3 | 7976 | 19.1 |
