406 - 2R9S1A5D6XC010070

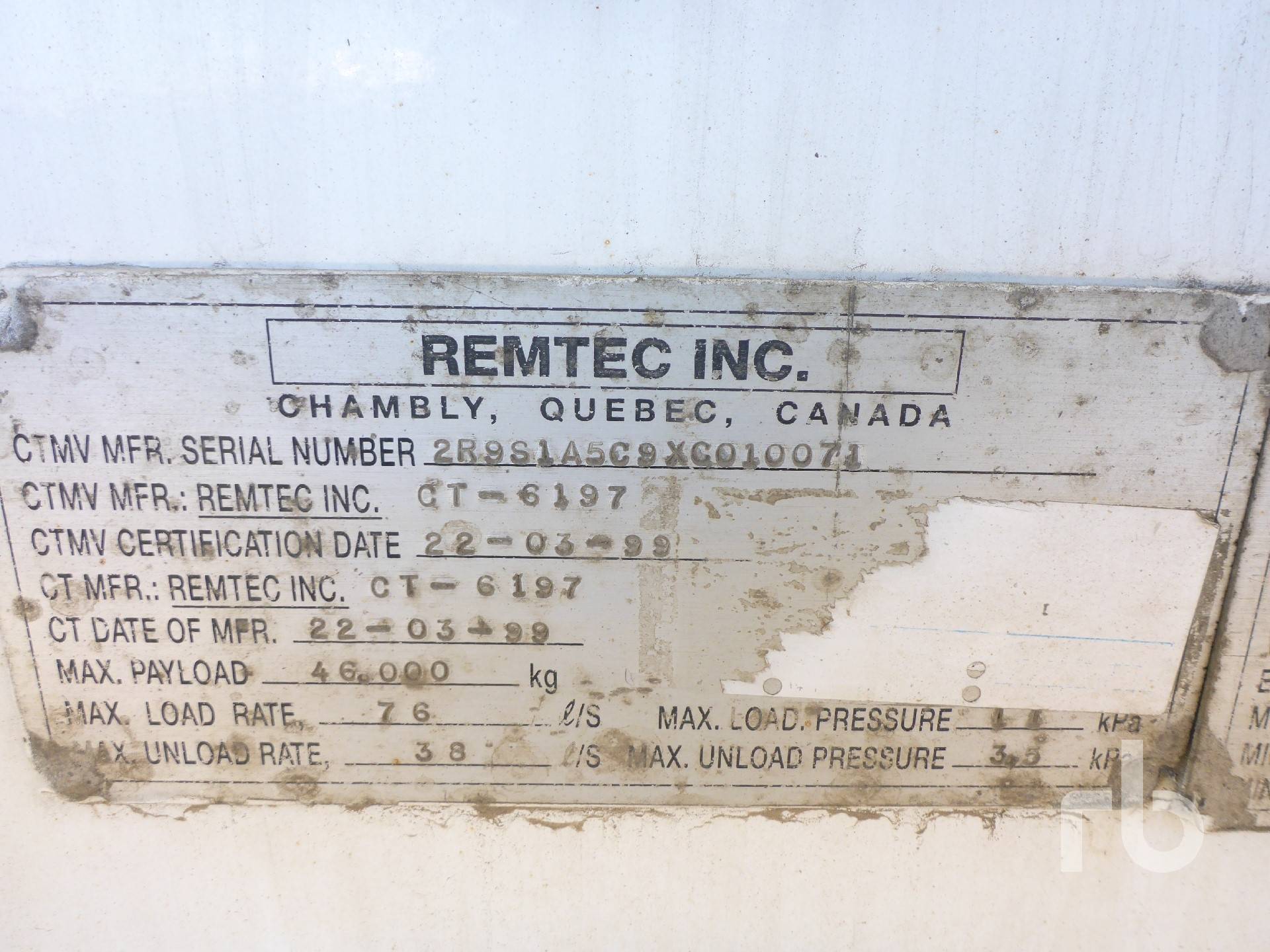

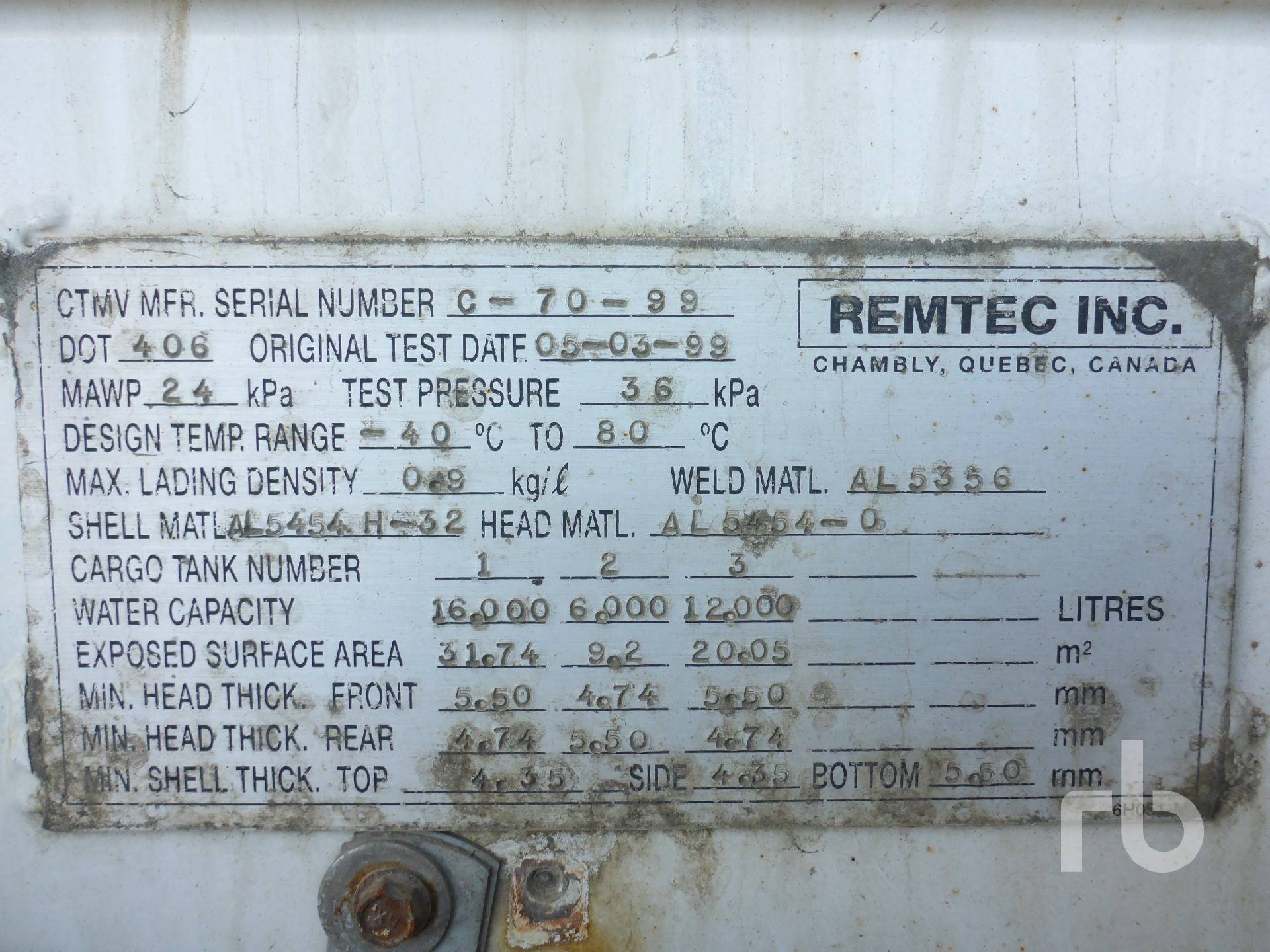

Identification Plate Images
Key Information
- Pic Number
- 216
- Specification
- 406
- Serial Number
- 2R9S1A5D6XC010070
- Manufacturer
- Remtec Inc.
- MFG Year
- 1999
Technical Specifications
- Temperature Range
- -40 to 80C
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 34000 L
- Max Payload
- 46000 kg
- Max Density
- 0.89 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | - | 0.2165354 |
| Top Shell | - | 0.1712598 |
| Side Shell | - | 0.1712598 |
| Bottom Shell | - | 0.2165354 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 16000 | 31.7 |
| 2 | 6000 | 9.2 |
| 3 | 12000 | 20.1 |
