406 - 2AEARPAC5YR000191

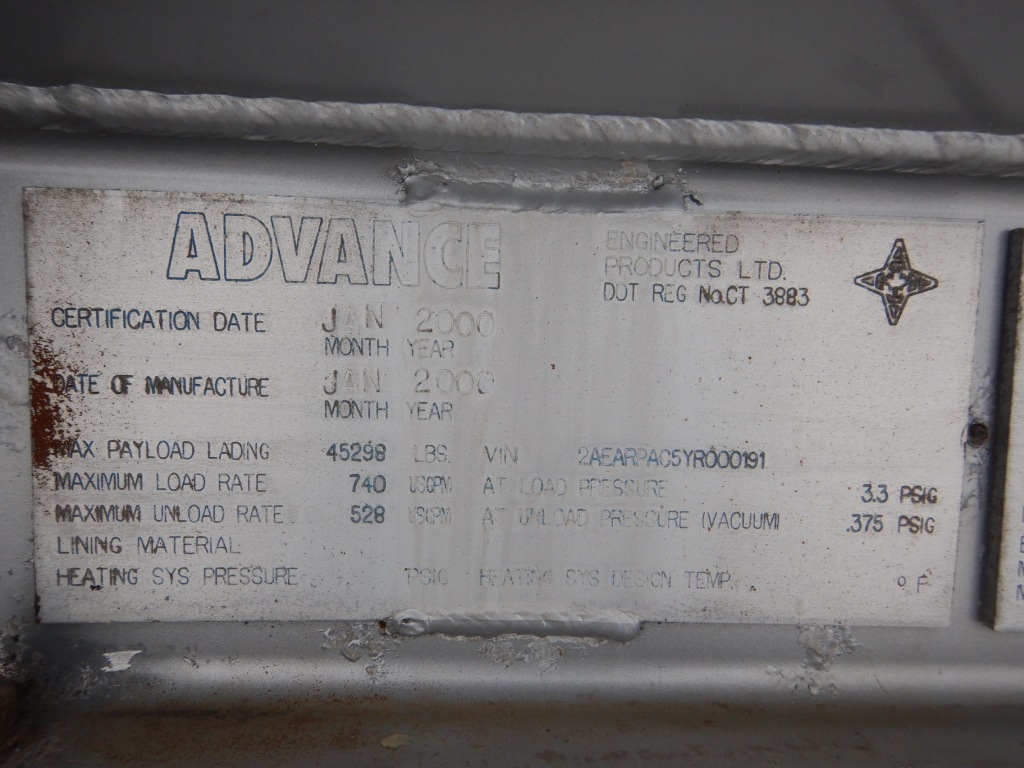

Identification Plate Images
Key Information
- Pic Number
- 219
- Specification
- 406
- Serial Number
- 2AEARPAC5YR000191
- Manufacturer
- Advance
- MFG Year
- 2000
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40 to 120F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 29504 L
- Max Payload
- 20547 kg
- Max Density
- 0.84 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.235 |
| Shell | 0.188 | 0.173 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 10001 | 17.7 |
| 2 | 9501 | 16.7 |
| 3 | 10001 | 21.6 |
