406 - 2AEABTAF5YR000182

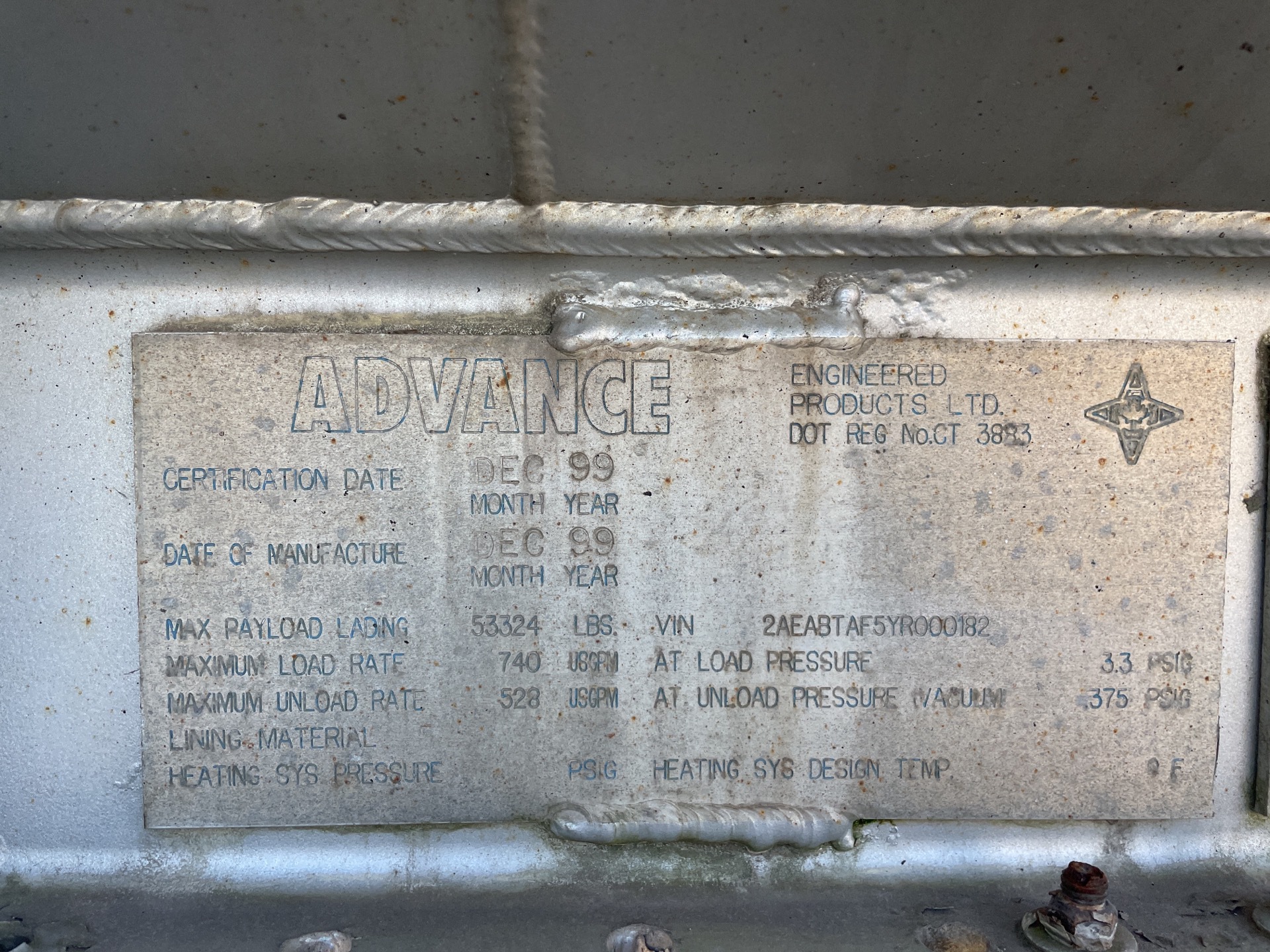

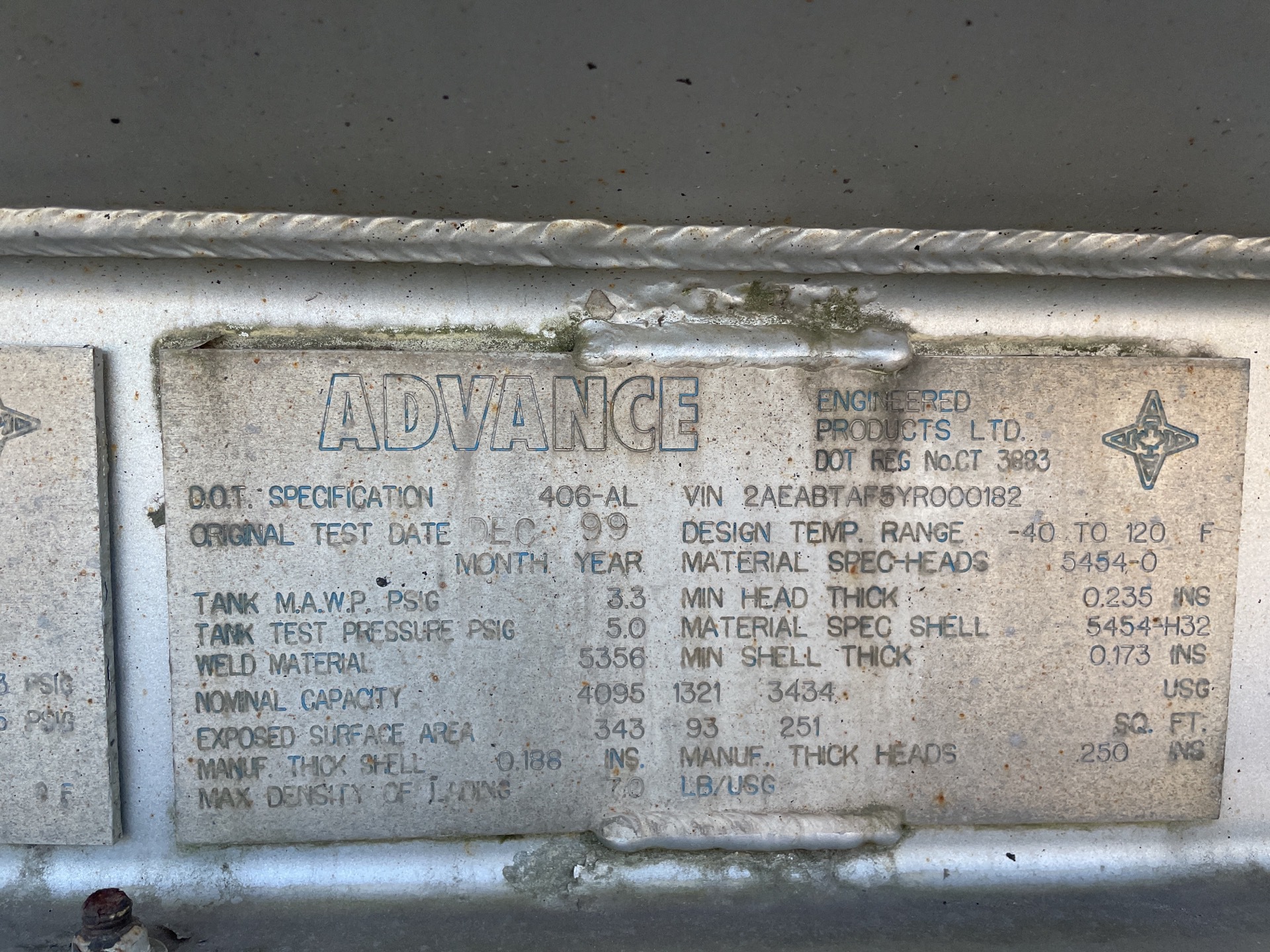

Identification Plate Images
Key Information
- Pic Number
- 306
- Specification
- 406
- Serial Number
- 2AEABTAF5YR000182
- Manufacturer
- Advance
- MFG Year
- 1999
- Tank Configuration
- B Train - Lead Unit
- # of Compartments
- 3
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 33501 L
- Max Payload
- 24187 kg
- Max Density
- 0.84 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | - | 0.235 |
| Shell | - | 0.173 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 15501 | 31.9 |
| 2 | 5001 | 8.6 |
| 3 | 12999 | 23.3 |
