406 - ST-N5849-00

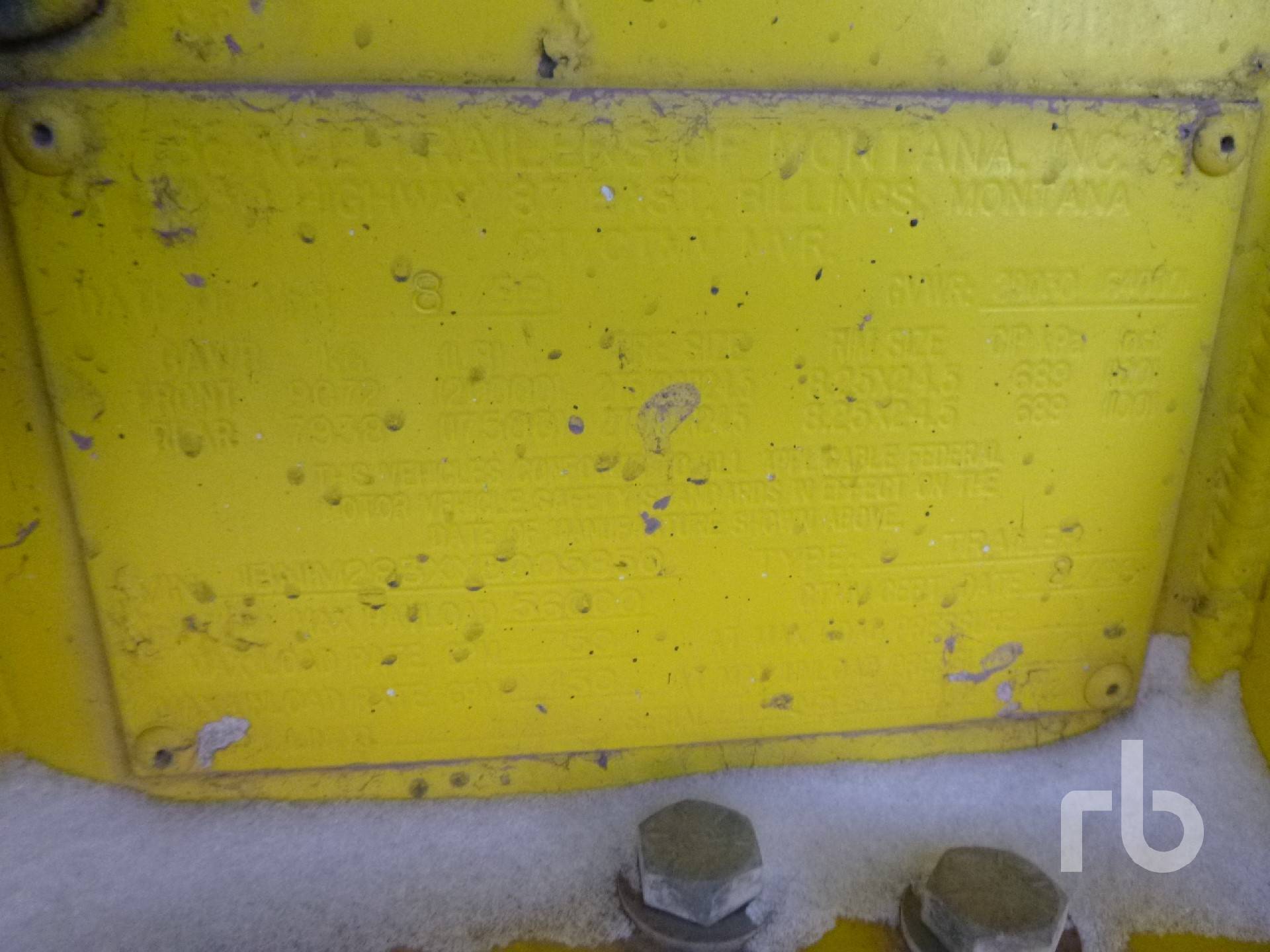

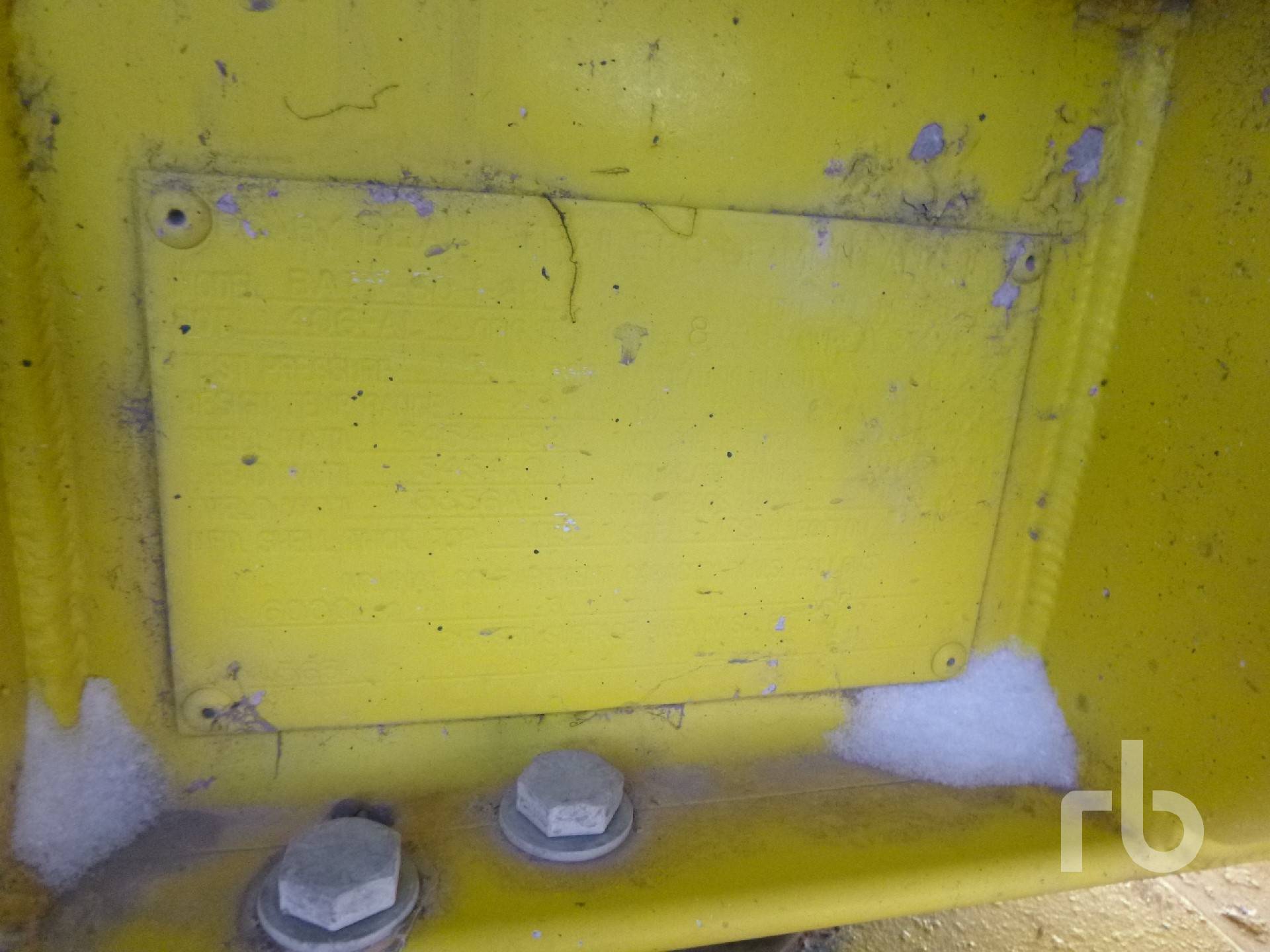

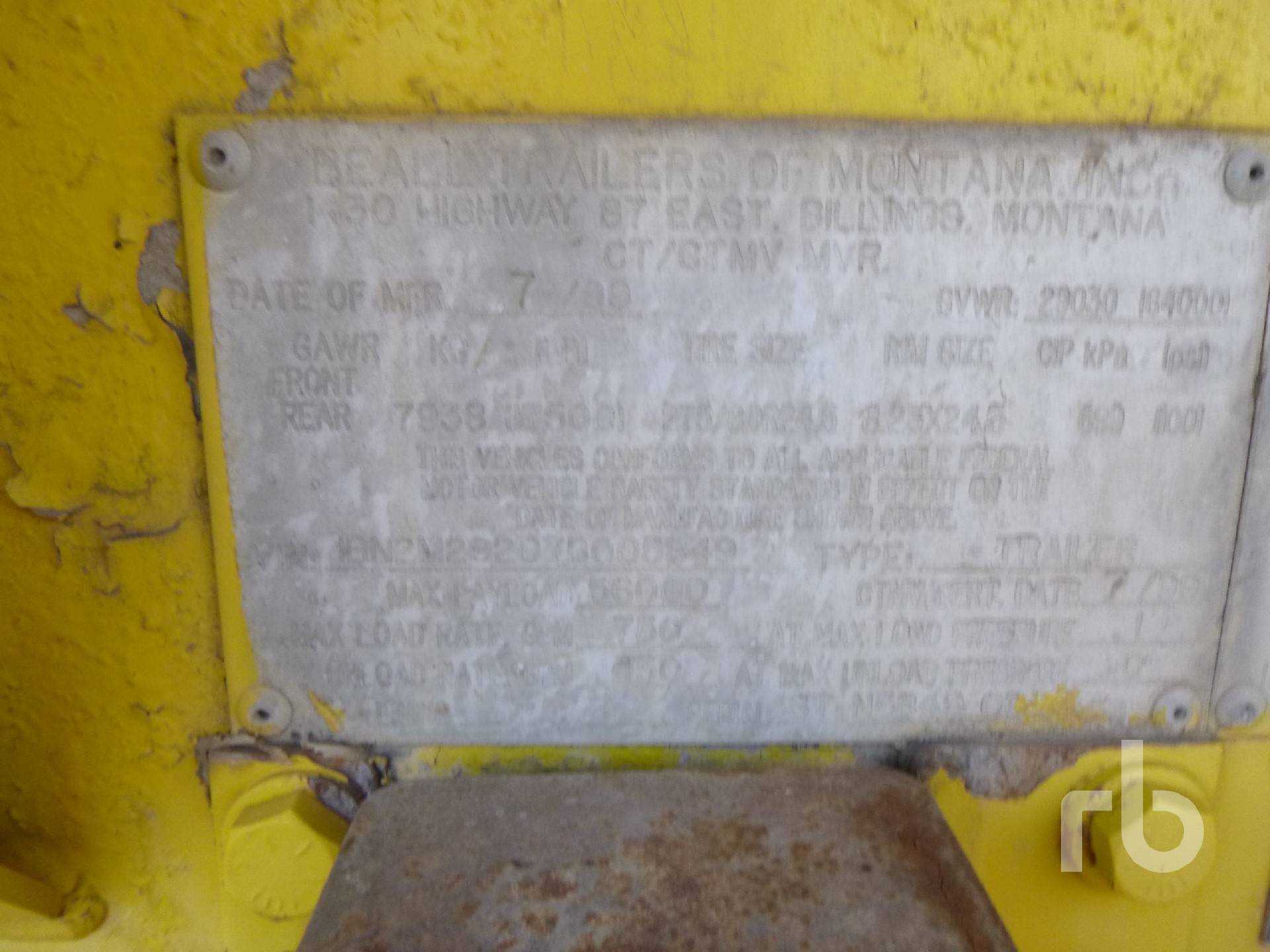

Identification Plate Images
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 22712 L
- Max Payload
- 25401 kg
- Max Density
- 0.93 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.196 | 0.173 |
| Top Shell | 0.179 | N/A |
| Side Shell | 0.179 | N/A |
| Bottom Shell | 0.188 | N/A |
| Shell | - | 0.16 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 12113 | 29.2 |
| 2 | 10599 | 22.9 |
