406 - 00.10703

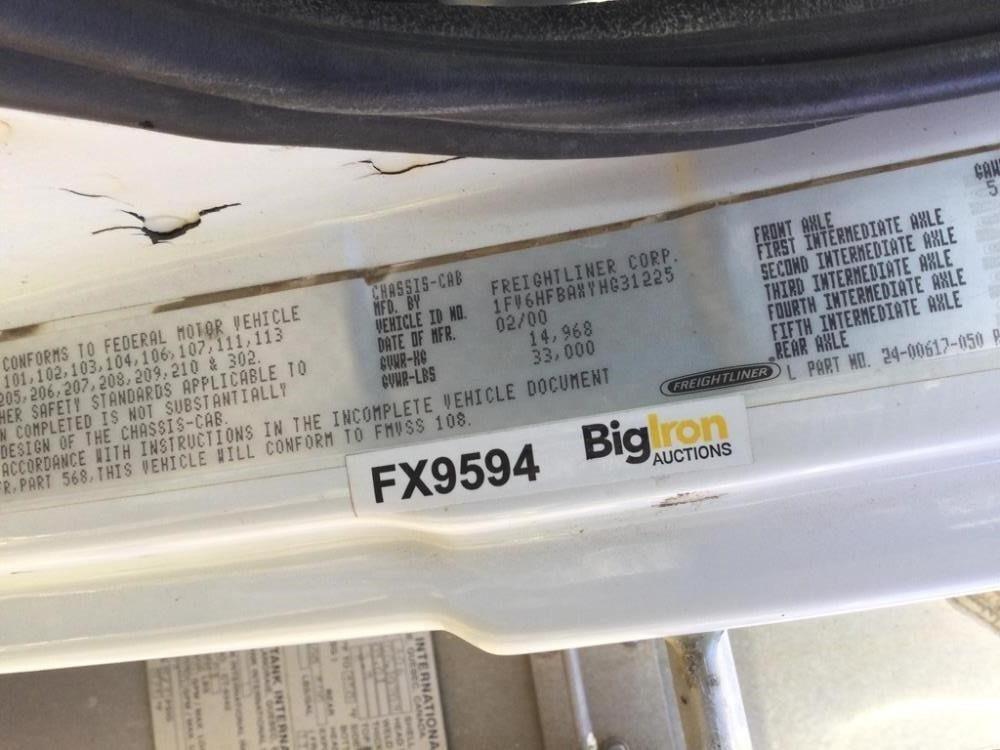

Identification Plate Images
Key Information
- Pic Number
- 309
- Specification
- 406
- Serial Number
- 00.10703
- Manufacturer
- Almac Tank International Inc.
- MFG Year
- 2001
- Tank Configuration
- Tandem Axle Tank Truck
- # of Compartments
- 5
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 11735 L
- GVWR
- 33000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.188 | 0.173 |
| Top Shell | 0.188 | 0.151 |
| Side Shell | 0.188 | 0.151 |
| Bottom Shell | 0.25 | 0.151 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 3028 | 10.9 |
| 2 | 3028 | 10.9 |
| 3 | 1893 | 10 |
| 4 | 1893 | 10 |
| 5 | 1893 | 10 |
