406 - 5HTAM44275717H64994

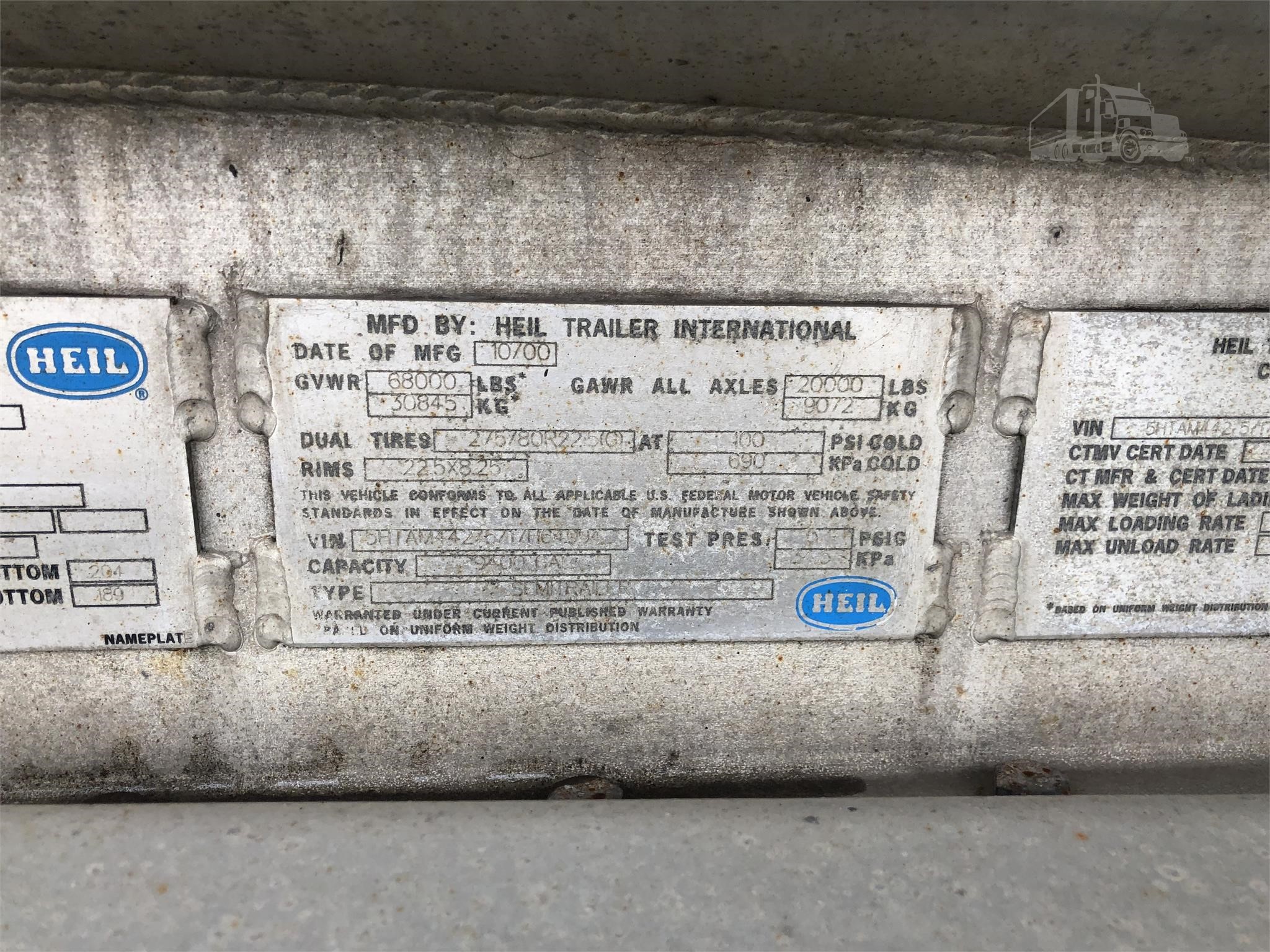

Identification Plate Images
Key Information
- Pic Number
- 311
- Specification
- 406
- Serial Number
- 5HTAM44275717H64994
- Manufacturer
- Heil
- MFG Year
- 2000
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 4
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 35583 L
- Max Payload
- 26308 kg
- Max Density
- 0.99 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.204 | 0.173 |
| Top Shell | 0.182 | 0.173 |
| Side Shell | 0.184 | 0.173 |
| Bottom Shell | 0.204 | 0.189 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 12870 | 31.7 |
| 2 | 7571 | 16.1 |
| 3 | 4164 | 8.3 |
| 4 | 10978 | 26.7 |
