407 - BEL-91-1003

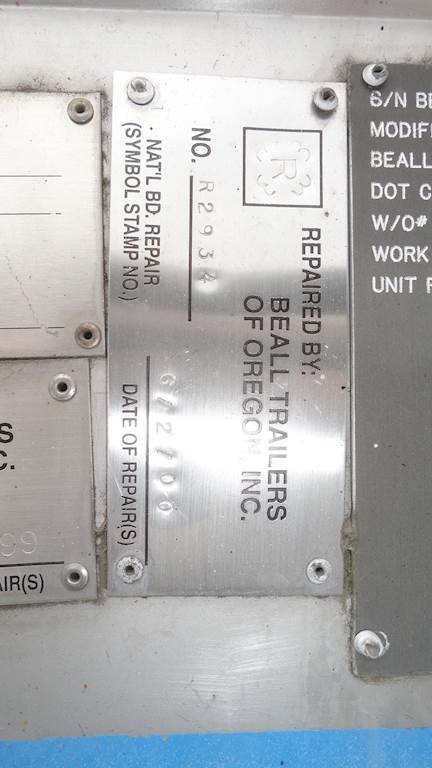

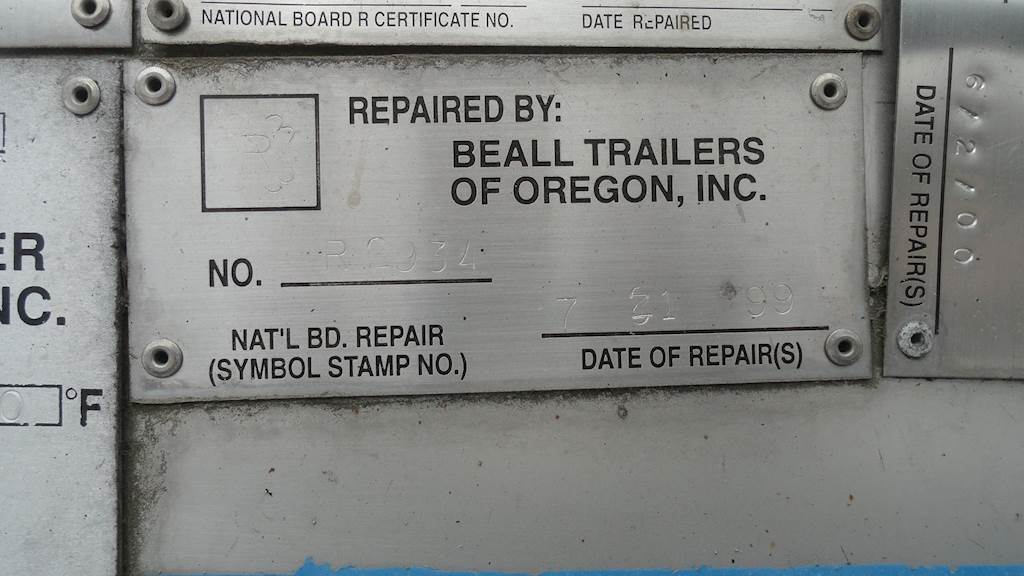

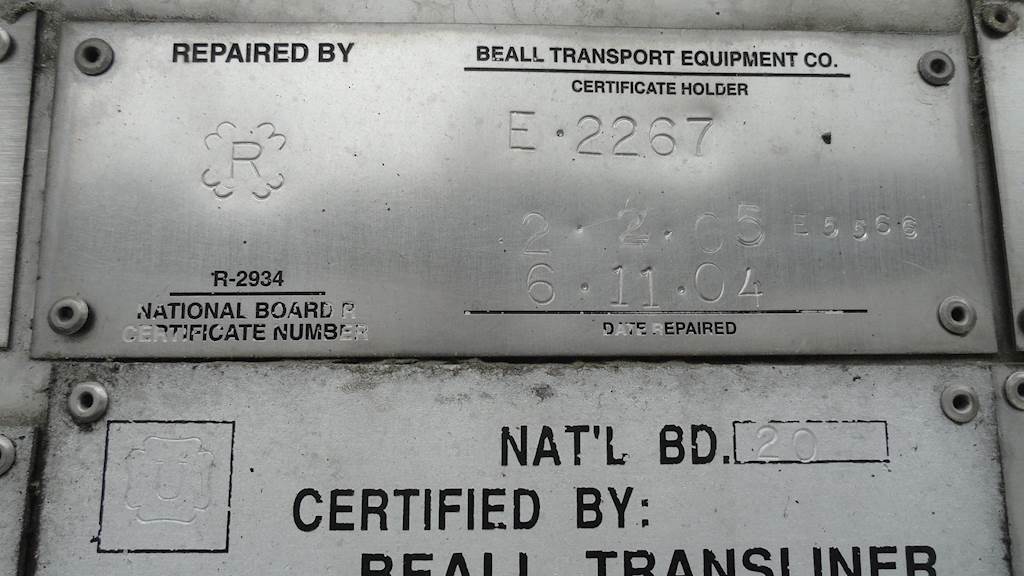

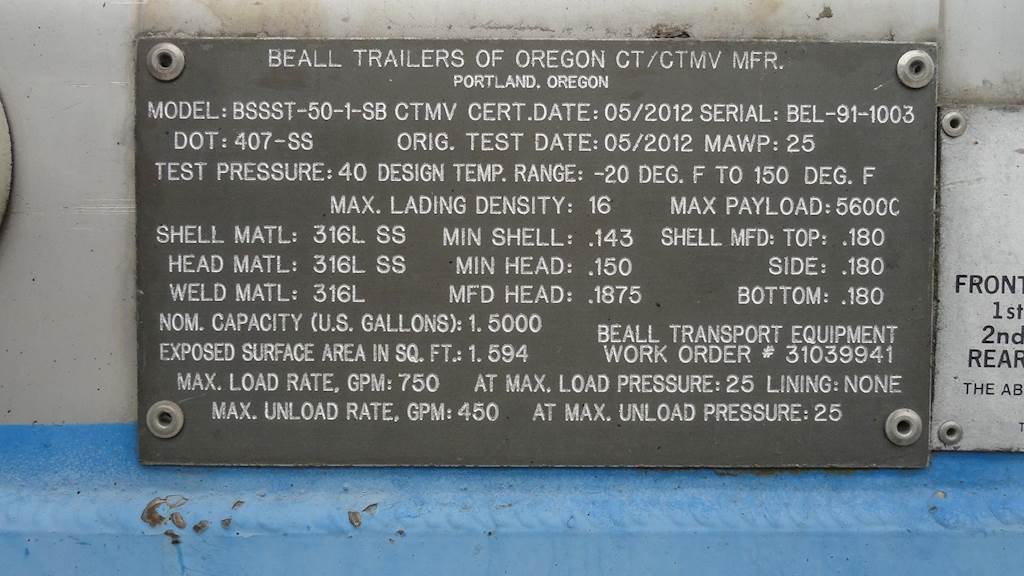

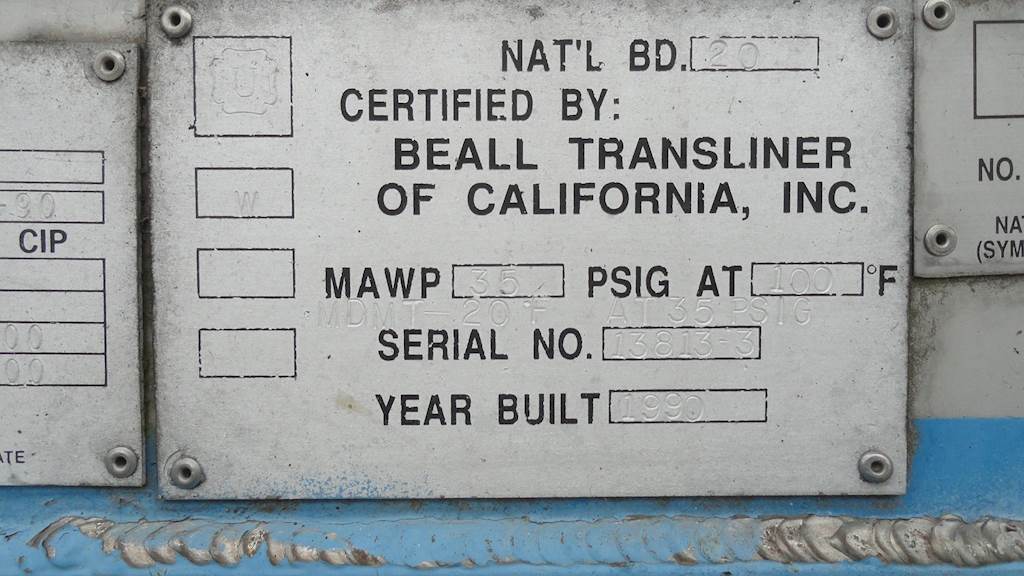

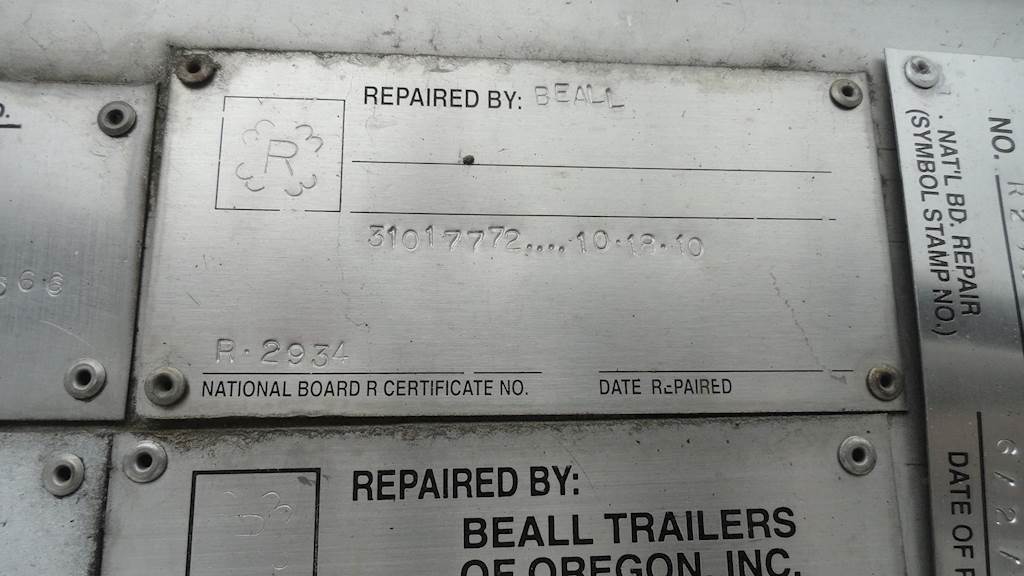

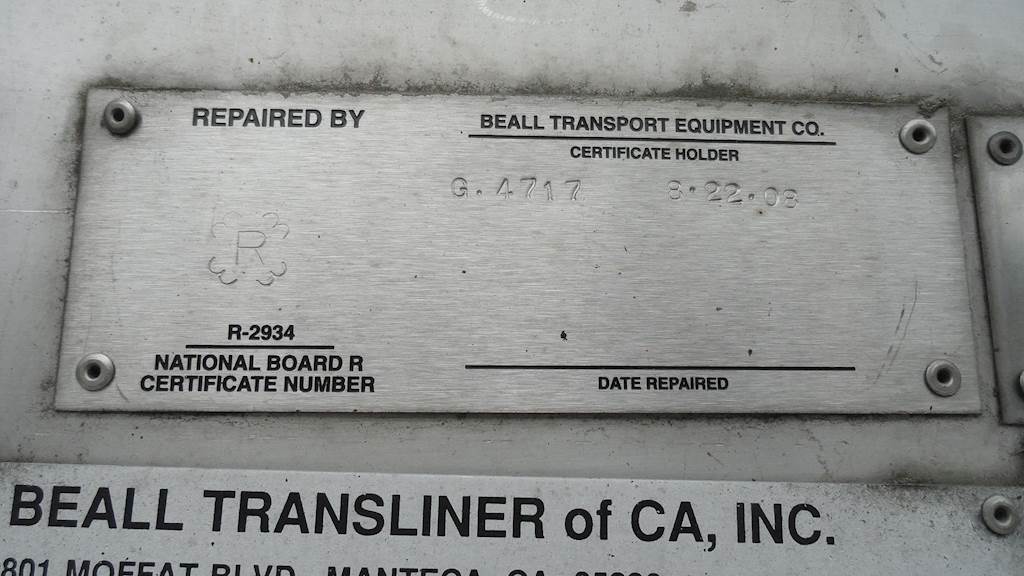

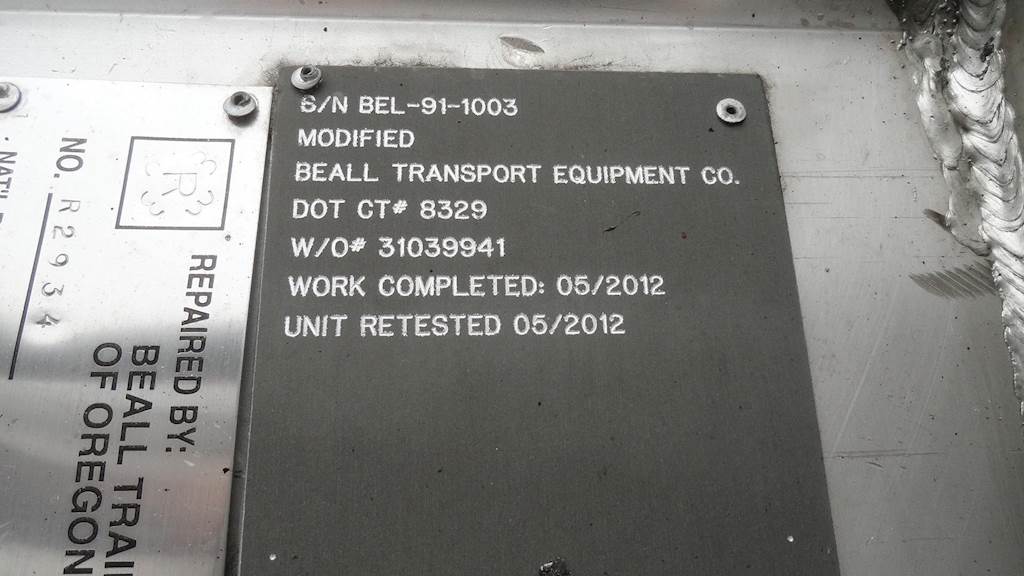

Identification Plate Images
Key Information
- Pic Number
- 312
- Specification
- 407
- Serial Number
- BEL-91-1003
- Manufacturer
- Beall
- MFG Year
- 2012
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 40.0 psi
- Head Material
- 316L SS
- Shell Material
- 316L SS
- Weld Material
- 316L
- Total Volume
- 18927 L
- Max Payload
- 25401 kg
- Max Density
- 1.92 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.1875 | 0.15 |
| Top Shell | 0.18 | 0.143 |
| Side Shell | 0.18 | 0.143 |
| Bottom Shell | 0.18 | 0.143 |
| Shell | - | 0.143 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 18927 | 55.2 |
