407 - V1-17969

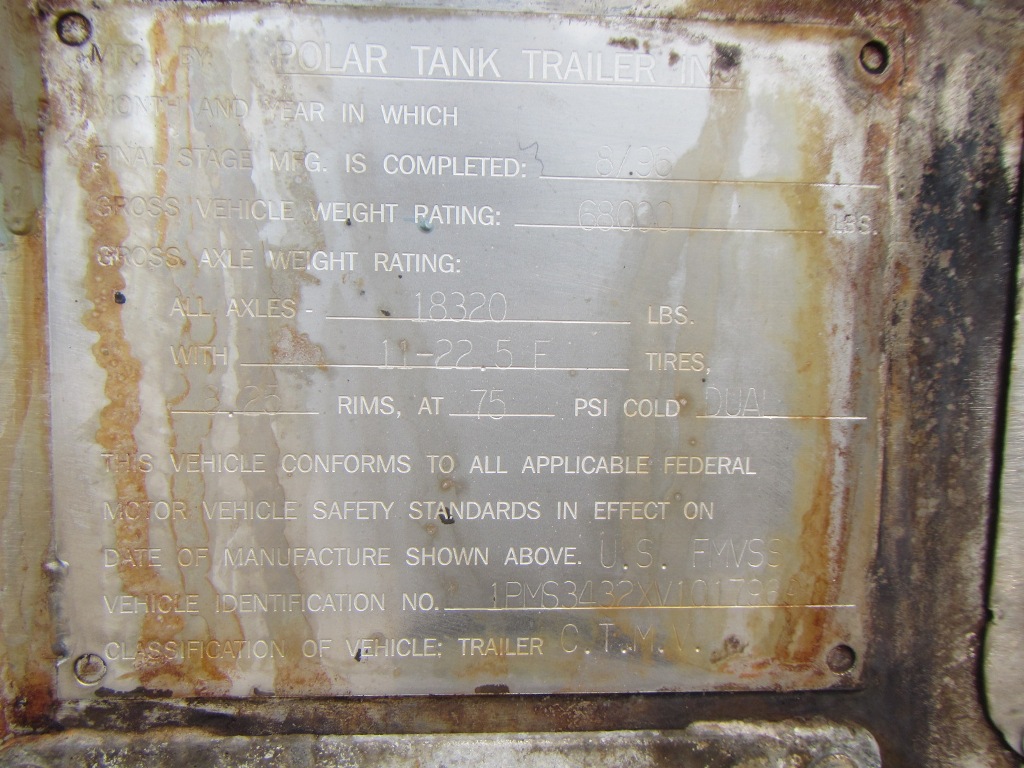

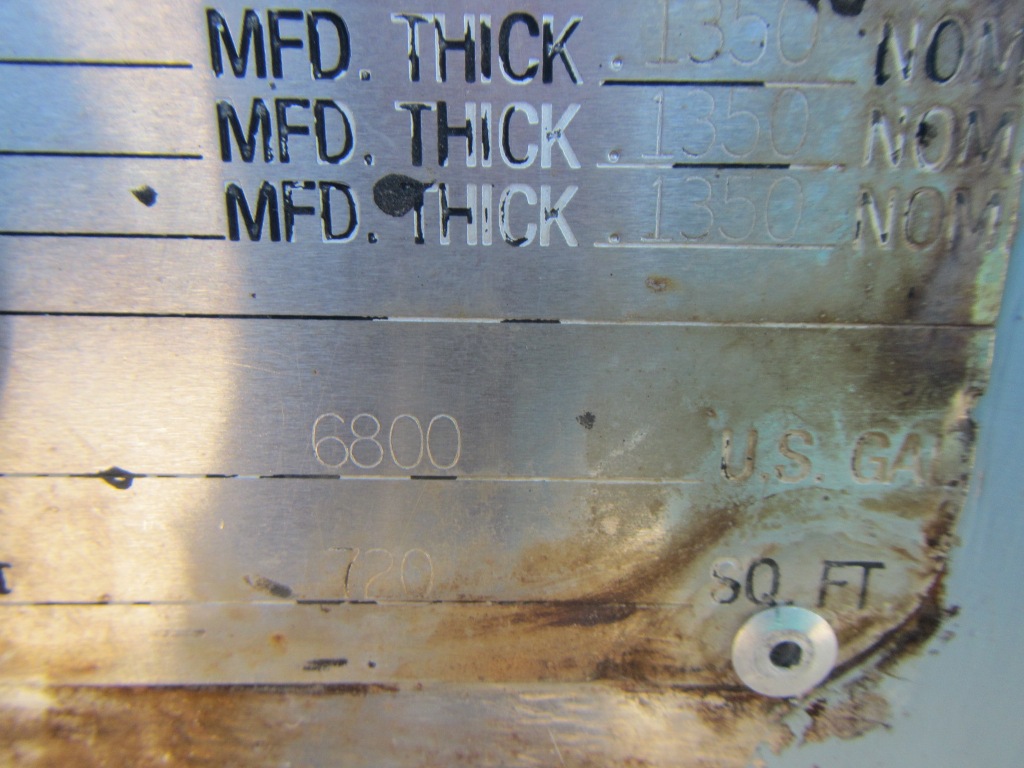

Identification Plate Images
Key Information
- Pic Number
- 318
- Specification
- 407
- Serial Number
- V1-17969
- Manufacturer
- Polar Tank
- MFG Year
- 1996
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 45.0 psi
- Temperature Range
- -30F to 300F
- Head Material
- T316LSS
- Shell Material
- T316LSS
- Weld Material
- T316LSS
- Total Volume
- 25741 L
- Max Density
- 1.56 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.135 | 0.115 |
| Top Shell | 0.135 | 0.115 |
| Side Shell | 0.135 | 0.115 |
| Bottom Shell | 0.135 | 0.115 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 25741 | 66.9 |
