407 - 10BFAB3368F0B8063

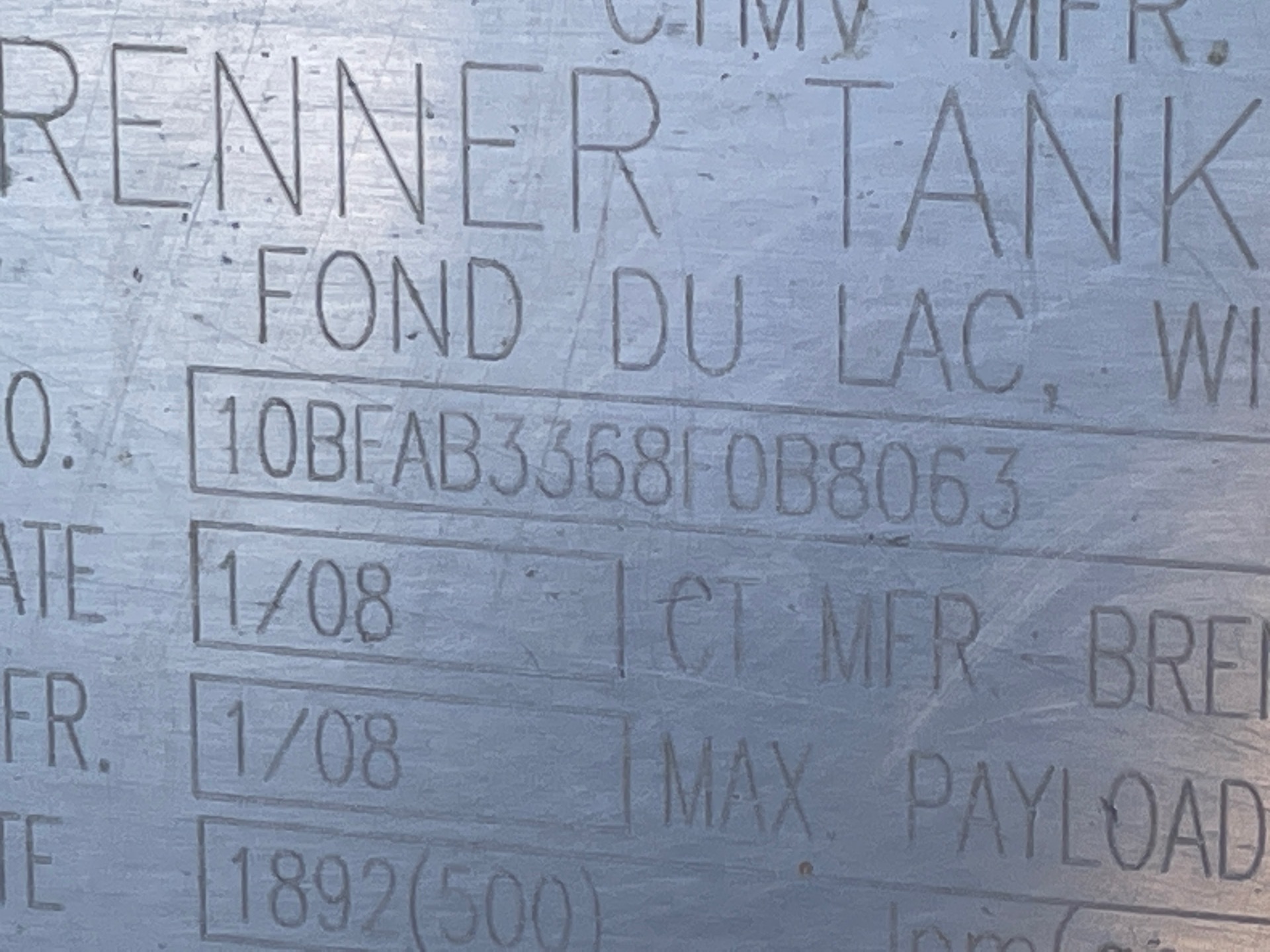

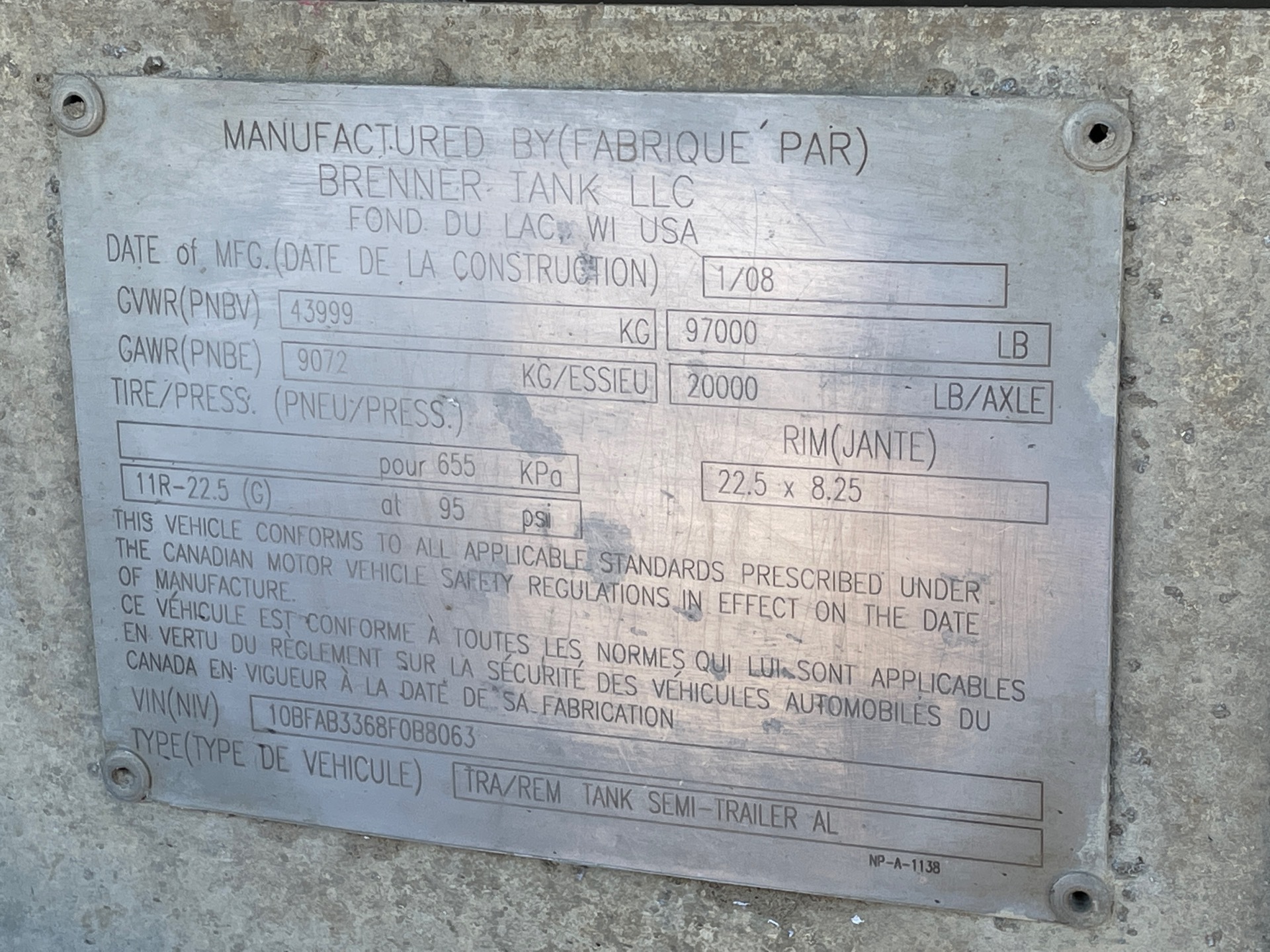

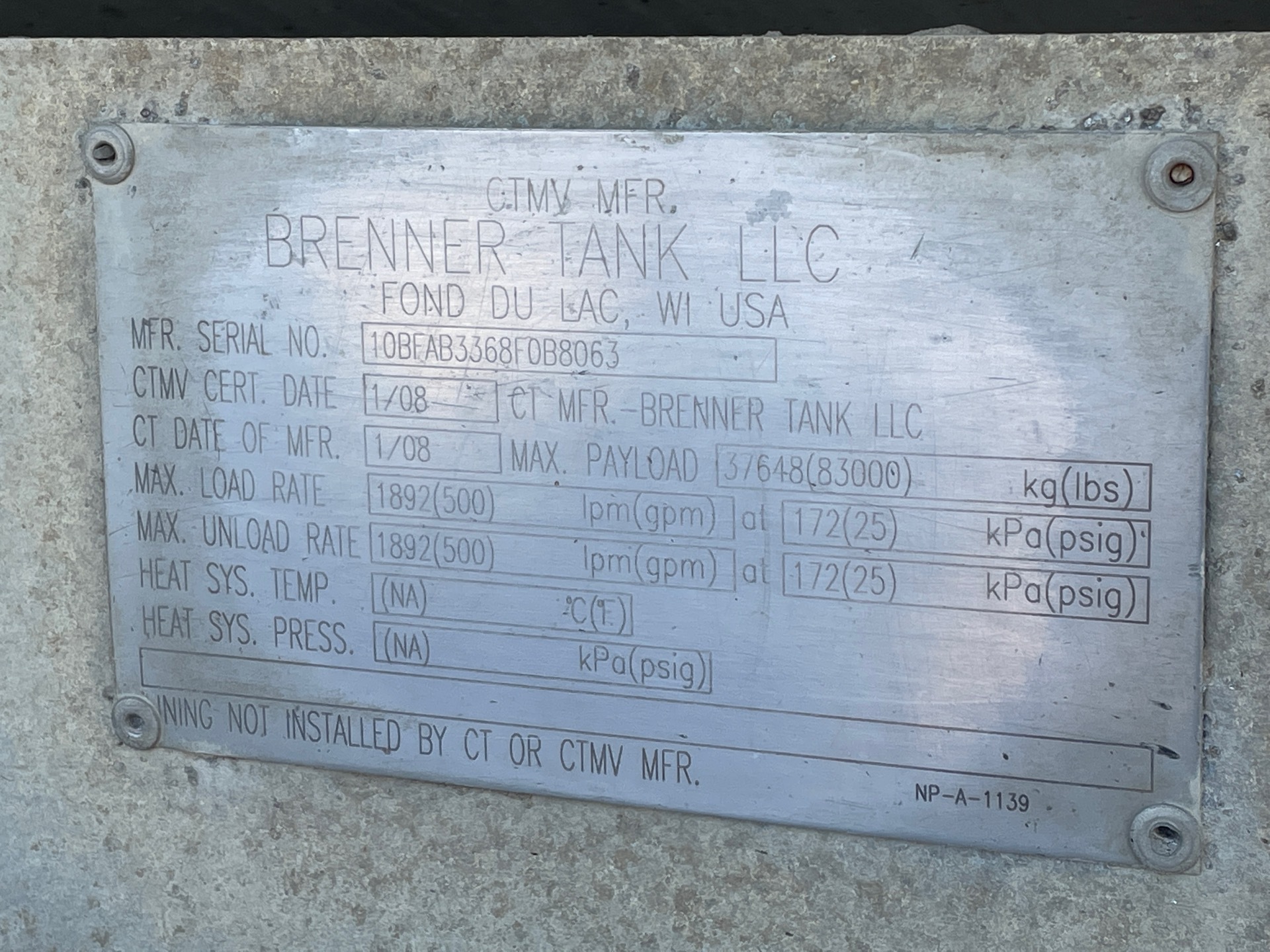

Identification Plate Images
Key Information
- Pic Number
- 330
- Specification
- 407
- Serial Number
- 10BFAB3368F0B8063
- Manufacturer
- Brenner
- MFG Year
- 2008
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 45.0 psi
- Temperature Range
- -20F to 150F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 37854 L
- Max Payload
- 37648 kg
- Max Density
- 1.56 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.235 | 0.195 |
| Top Shell | 0.235 | 0.211 |
| Side Shell | 0.235 | 0.211 |
| Bottom Shell | 0.235 | 0.211 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 37854 | 86.2 |
