412 - 505_506

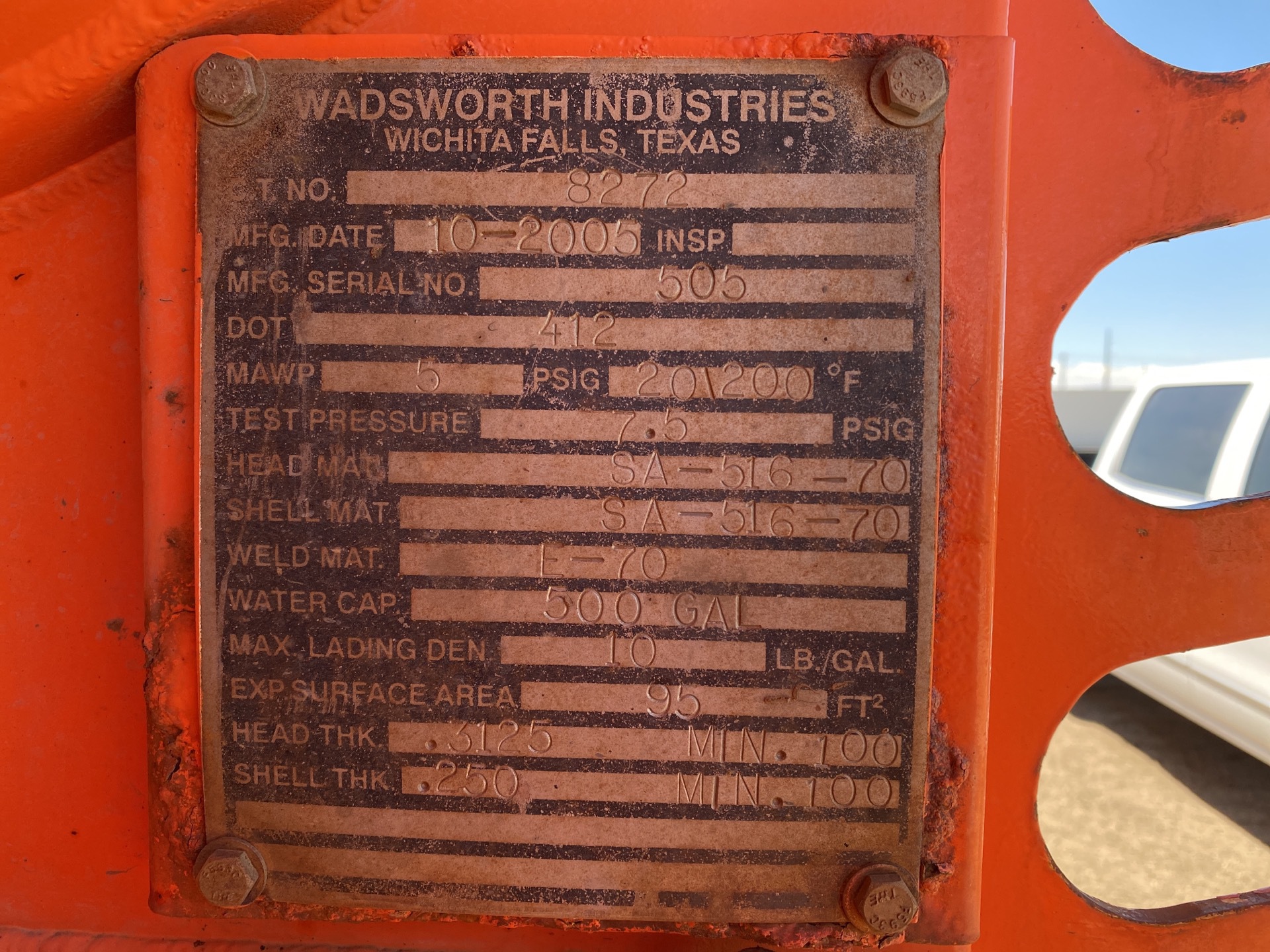

Identification Plate Images
Key Information
- Pic Number
- 333
- Specification
- 412
- Serial Number
- 505_506
- Manufacturer
- Wadsworth Industries
- MFG Year
- 2005
- Tank Configuration
- Tandem Axle Tank Truck
- # of Compartments
- 2
Technical Specifications
- MAWP
- 5.0 psi
- Test Pressure
- 7.5 psi
- Head Material
- SA 516-70
- Shell Material
- SA 516-70
- Weld Material
- E-70
- Total Volume
- 3785 L
- Max Density
- 1.2 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.3125 | 0.1 |
| Shell | 0.25 | 0.1 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 1893 | 8.8 |
| 2 | 1893 | 8.8 |
