412 - V2-18114

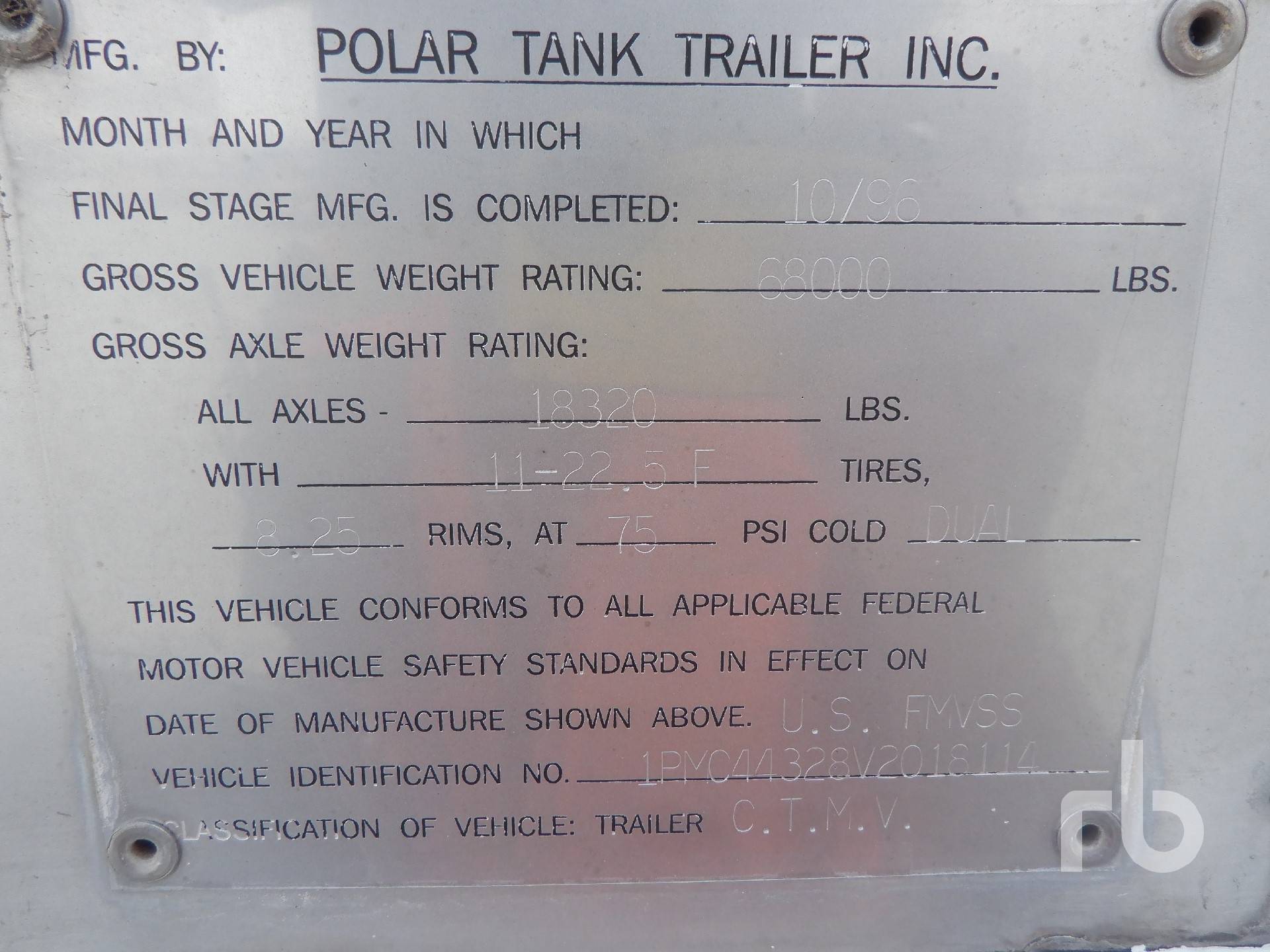

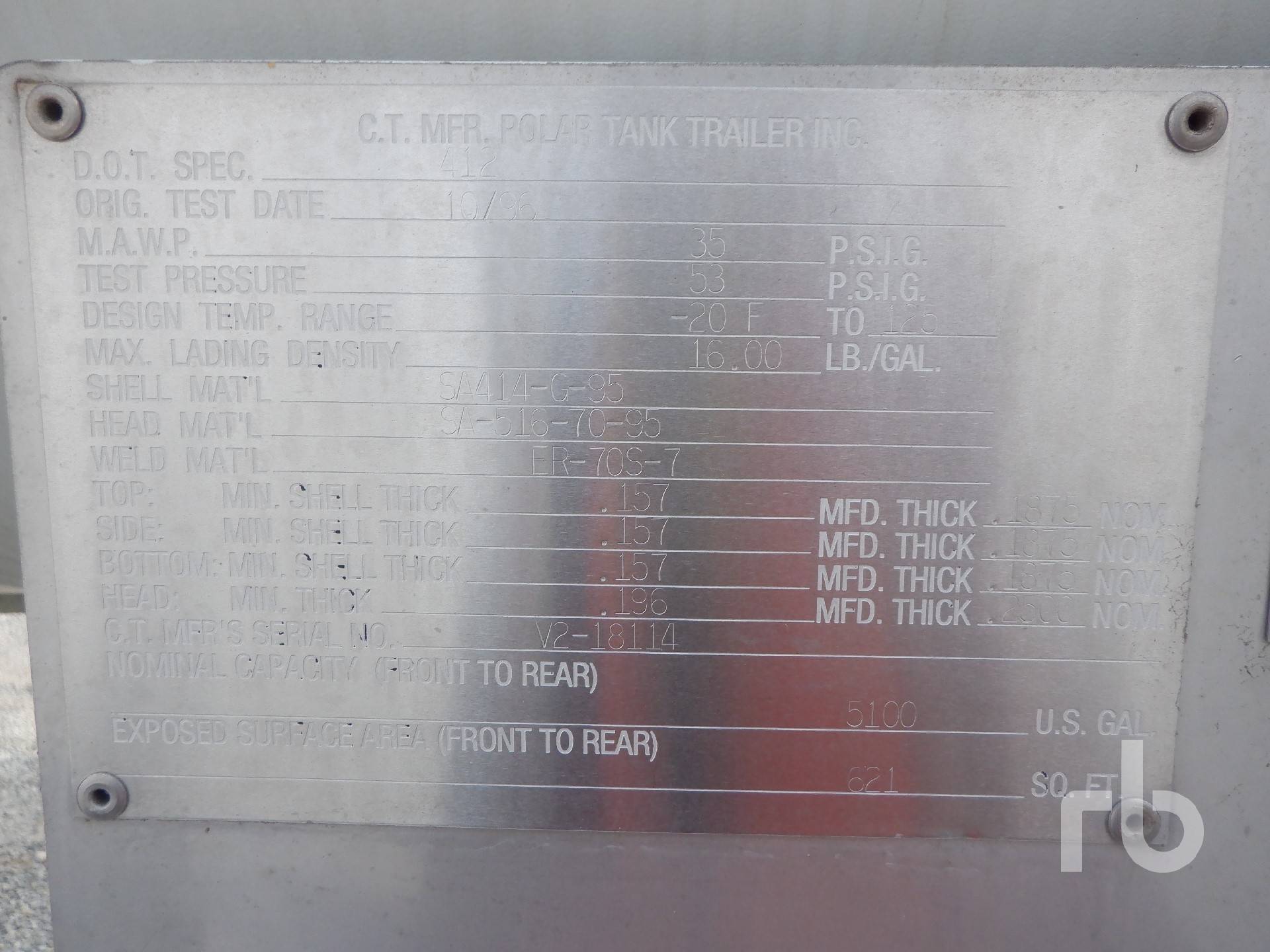

Identification Plate Images
Key Information
- Pic Number
- 335
- Specification
- 412
- Serial Number
- V2-18114
- Manufacturer
- Polar Tank
- MFG Year
- 1996
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 35.0 psi
- Test Pressure
- 53.0 psi
- Temperature Range
- -20F to 125F
- Head Material
- SA 414-G-95
- Shell Material
- SA 516-70-95
- Weld Material
- ER-70S-7
- Total Volume
- 19306 L
- Max Payload
- 26308 kg
- Max Density
- 1.92 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.196 |
| Top Shell | 0.1875 | 0.157 |
| Side Shell | 0.1875 | 0.157 |
| Bottom Shell | 0.1875 | 0.157 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 19306 | 57.7 |
