406 - TT29089

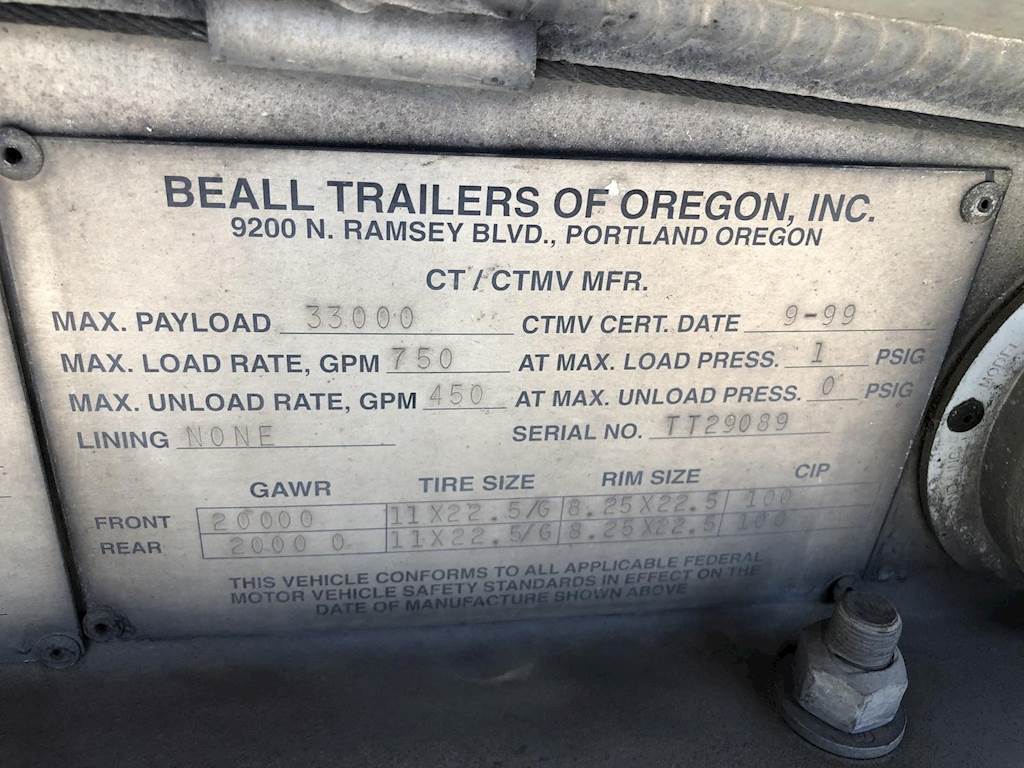

Identification Plate Images
Key Information
- Pic Number
- 38
- Specification
- 406
- Serial Number
- TT29089
- Manufacturer
- Beall
- MFG Year
- 2000
- Tank Configuration
- Single Axle Trailer
- # of Compartments
- 3
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -29 to 65.6
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 20819 L
- Max Density
- 0.9 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.196 | 0.173 |
| Top Shell | 0.173 | N/A |
| Side Shell | 0.173 | N/A |
| Bottom Shell | 0.188 | N/A |
| Shell | - | 0.16 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 8214 | 19.5 |
| 2 | 4391 | 7.9 |
| 3 | 8214 | 19.5 |
