406 Crude - 2KAST93784K000288

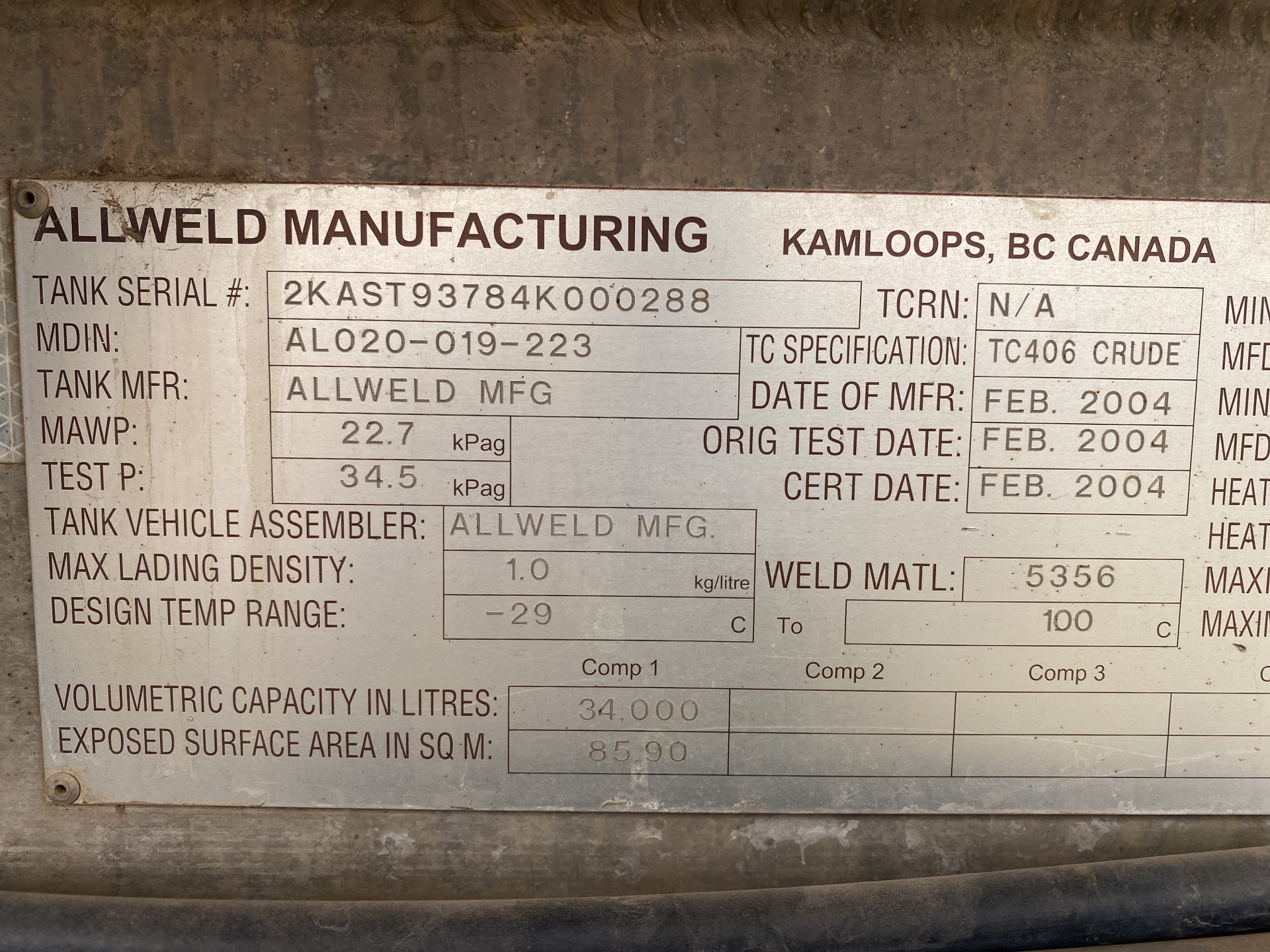

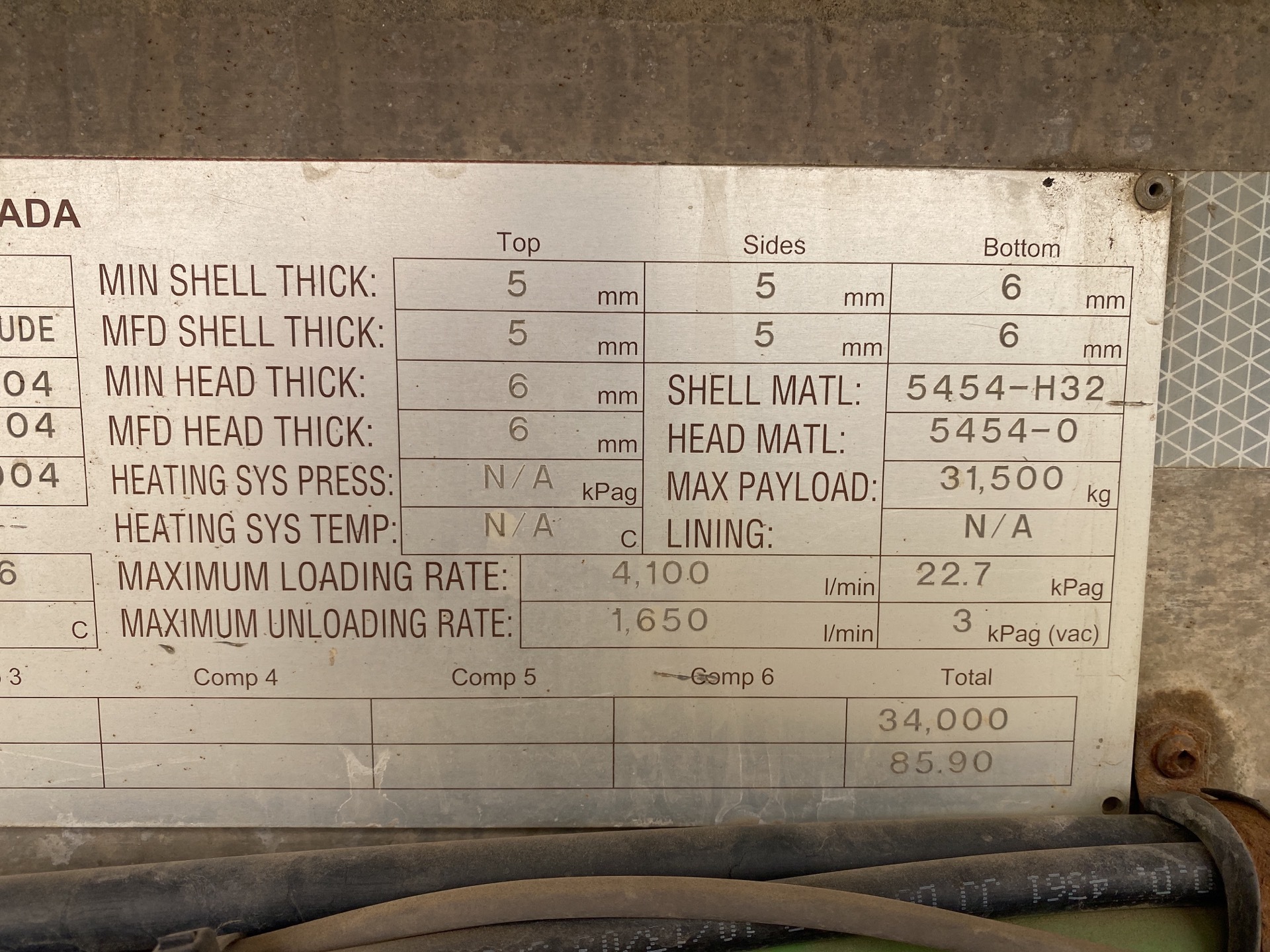

Identification Plate Images
Key Information
- Pic Number
- 424
- Specification
- 406 Crude
- Serial Number
- 2KAST93784K000288
- Manufacturer
- Allweld Manufacturing
- MFG Year
- 2004
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -29C to 100C
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 34000 L
- Max Payload
- 31500 kg
- Max Density
- 1 kg/L
- GVWR
- 52911 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.2362205 | 0.2362205 |
| Top Shell | 0.1968504 | 0.1968504 |
| Side Shell | 0.1968504 | 0.1968504 |
| Bottom Shell | 0.2362205 | 0.2362205 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 34000 | 85.9 |
