406 - 2AEABRAH97V000146

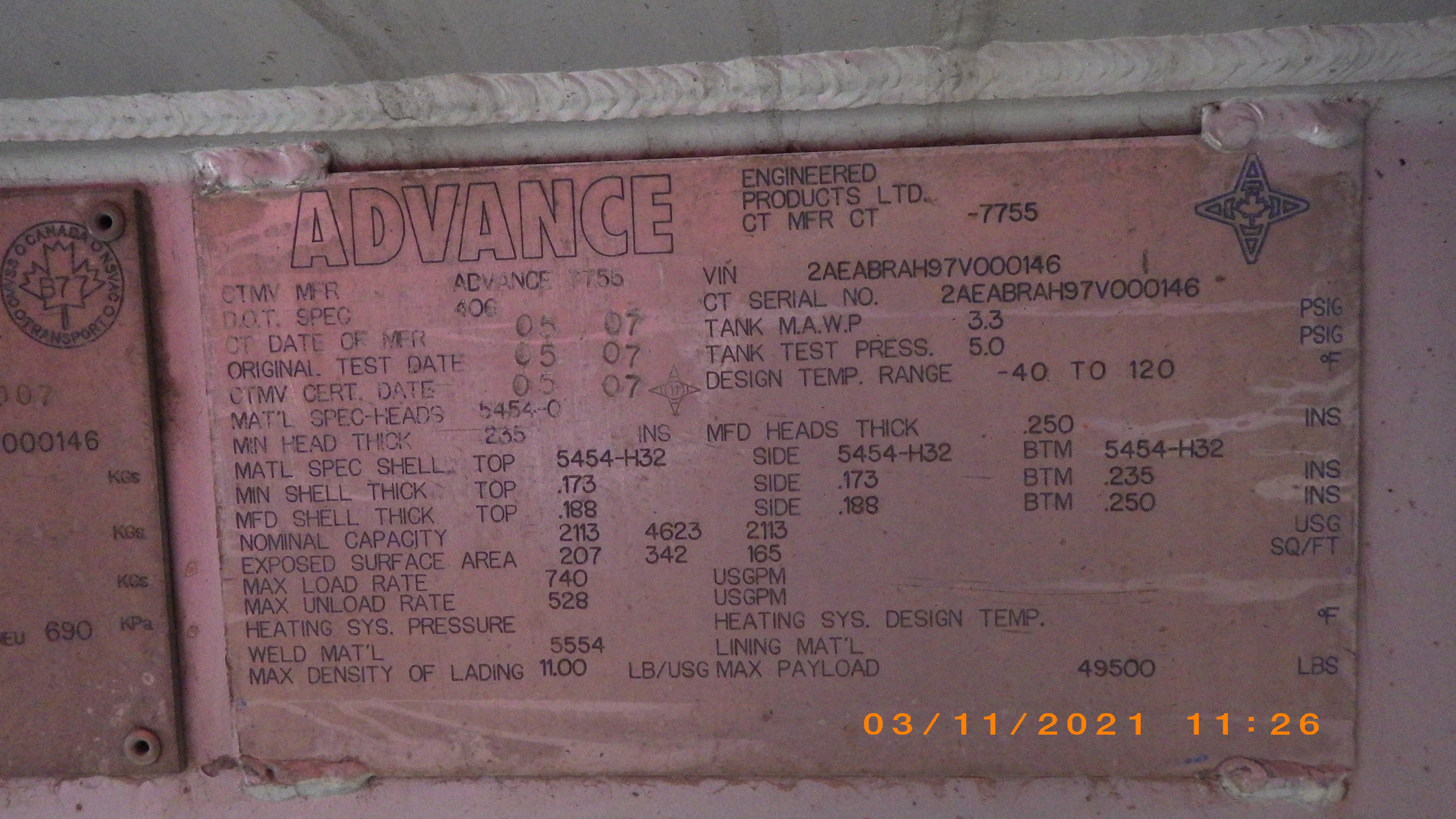

Identification Plate Images
Key Information
- Pic Number
- 431
- Specification
- 406
- Serial Number
- 2AEABRAH97V000146
- Manufacturer
- Advance
- MFG Year
- 2007
- # of Compartments
- 3
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5554
- Total Volume
- 33497 L
- Max Payload
- 22453 kg
- Max Density
- 1.32 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.235 |
| Top Shell | 0.188 | 0.173 |
| Side Shell | 0.188 | 0.173 |
| Bottom Shell | 0.25 | 0.235 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 7999 | 19.2 |
| 2 | 17500 | 31.8 |
| 3 | 7999 | 15.3 |
