406 - C54-03

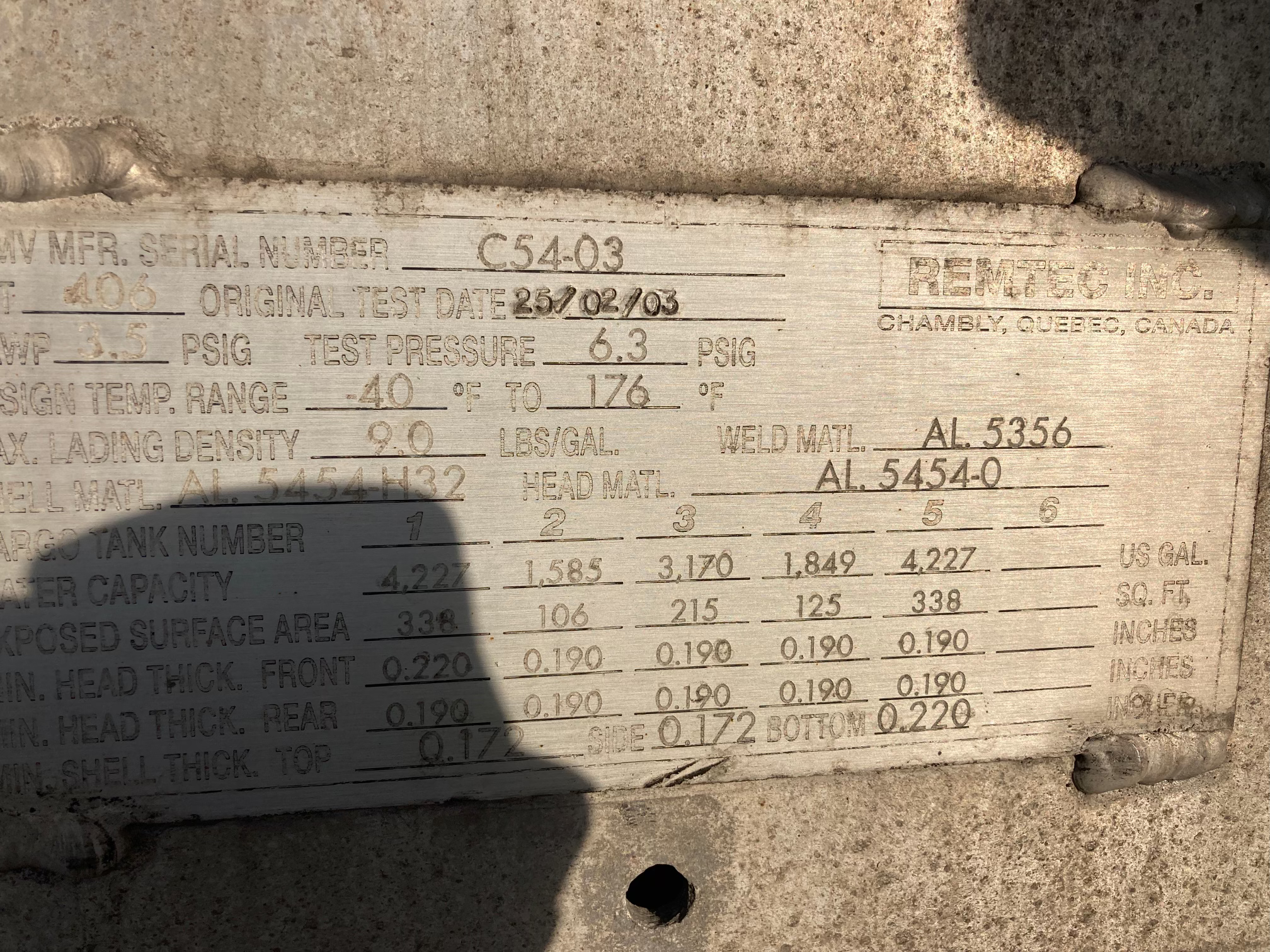

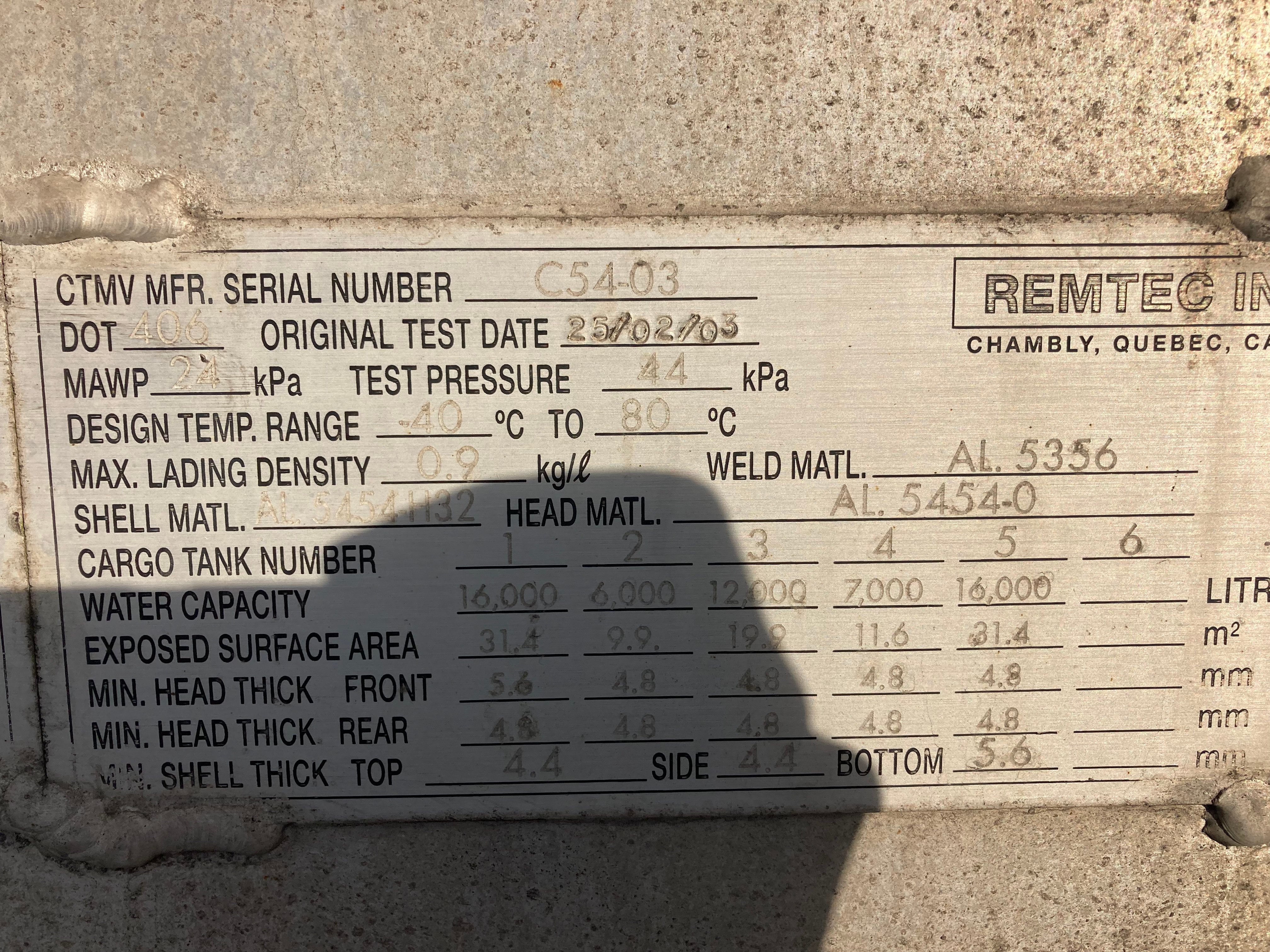

Identification Plate Images
Key Information
- Pic Number
- 433
- Specification
- 406
- Serial Number
- C54-03
- Manufacturer
- Remtec Inc.
- MFG Year
- 2003
- # of Compartments
- 5
Technical Specifications
- MAWP
- 3.5 psi
- Test Pressure
- 6.3 psi
- Temperature Range
- -40C to 80C
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 57000 L
- Max Density
- 1.08 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 16000 | 31.4 |
| 2 | 6000 | 9.9 |
| 3 | 12000 | 19.9 |
| 4 | 7000 | 11.6 |
| 5 | 16000 | 31.4 |
