406 - 14-16921

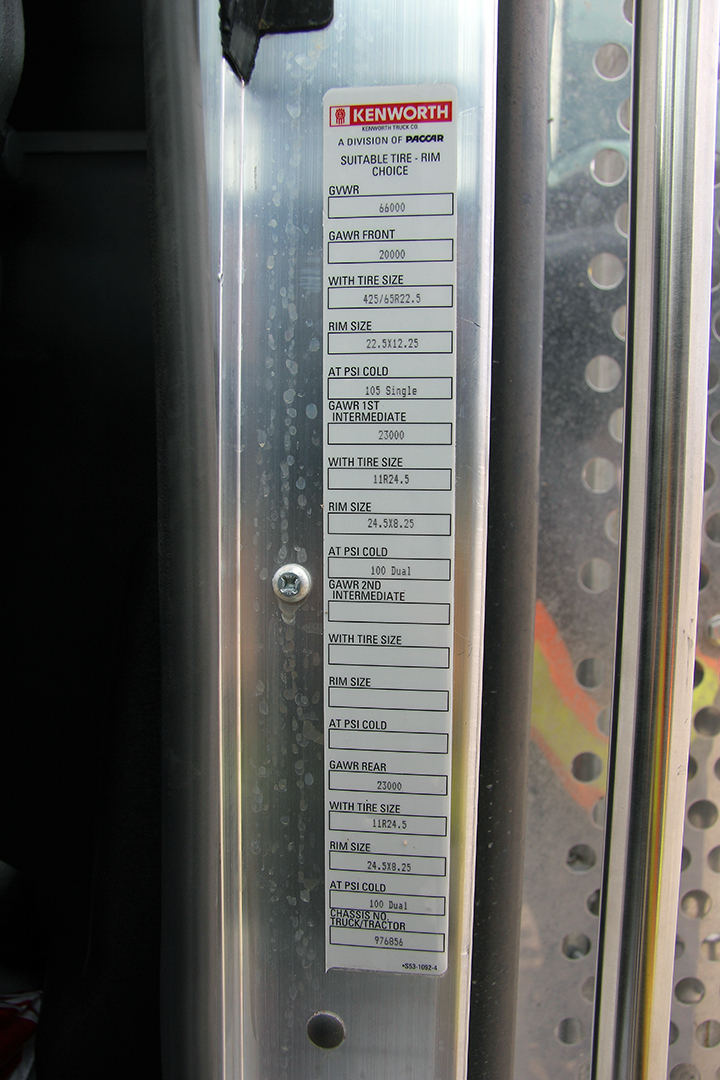

Identification Plate Images
Key Information
- Pic Number
- 434
- Specification
- 406
- Serial Number
- 14-16921
- Manufacturer
- Almac Tank International Inc.
- MFG Year
- 2015
- Tank Configuration
- Tandem Axle Tank Truck
- # of Compartments
- 4
Technical Specifications
- MAWP
- 3.0 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40C to 66C
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 18267 L
- Max Payload
- 16440 kg
- Max Density
- 0.9 kg/L
- GVWR
- 66000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.187 | 0.173 |
| Top Shell | 0.187 | 0.151 |
| Side Shell | 0.187 | 0.151 |
| Bottom Shell | 0.25 | 0.151 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 2978 | 13 |
| 2 | 4155 | 15 |
| 3 | 7948 | 23 |
| 4 | 3186 | 12 |
