406 - 05-6786

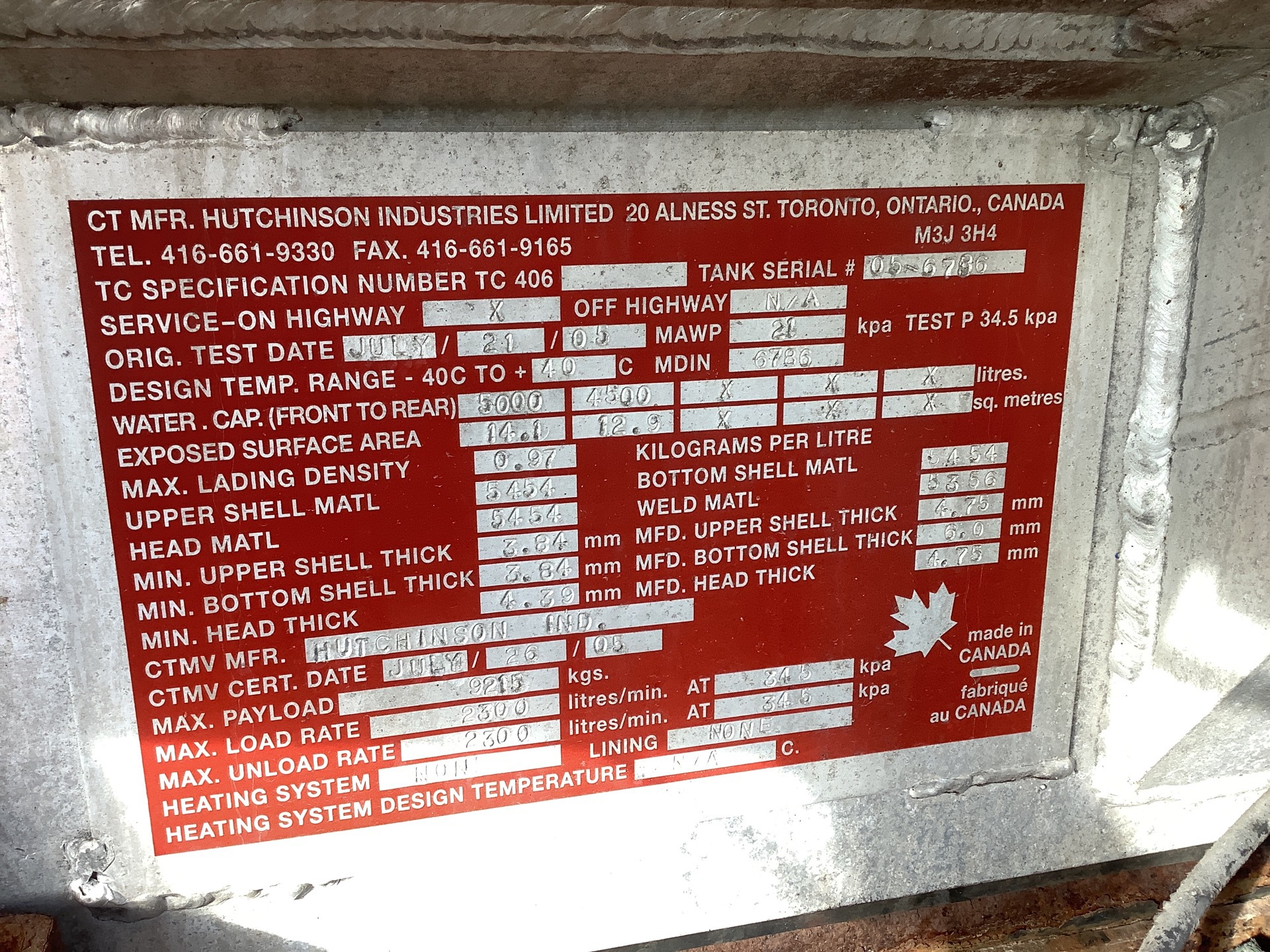

Identification Plate Images
Key Information
- Pic Number
- 448
- Specification
- 406
- Serial Number
- 05-6786
- Manufacturer
- Hutchinson
- MFG Year
- 2005
- Tank Configuration
- Single Axle Tank Truck
- # of Compartments
- 2
Technical Specifications
- MAWP
- 3.0 psi
- Test Pressure
- 5.0 psi
- Head Material
- 5454
- Shell Material
- 5454
- Weld Material
- 5356
- Total Volume
- 9500 L
- Max Payload
- 9215 kg
- Max Density
- 0.97 kg/L
- GVWR
- 33000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.187 | 0.173 |
| Top Shell | 0.187 | 0.151 |
| Bottom Shell | 0.236 | 0.151 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 5000 | 14.1 |
| 2 | 4500 | 12.9 |
