406 - 46AT3061M62641749

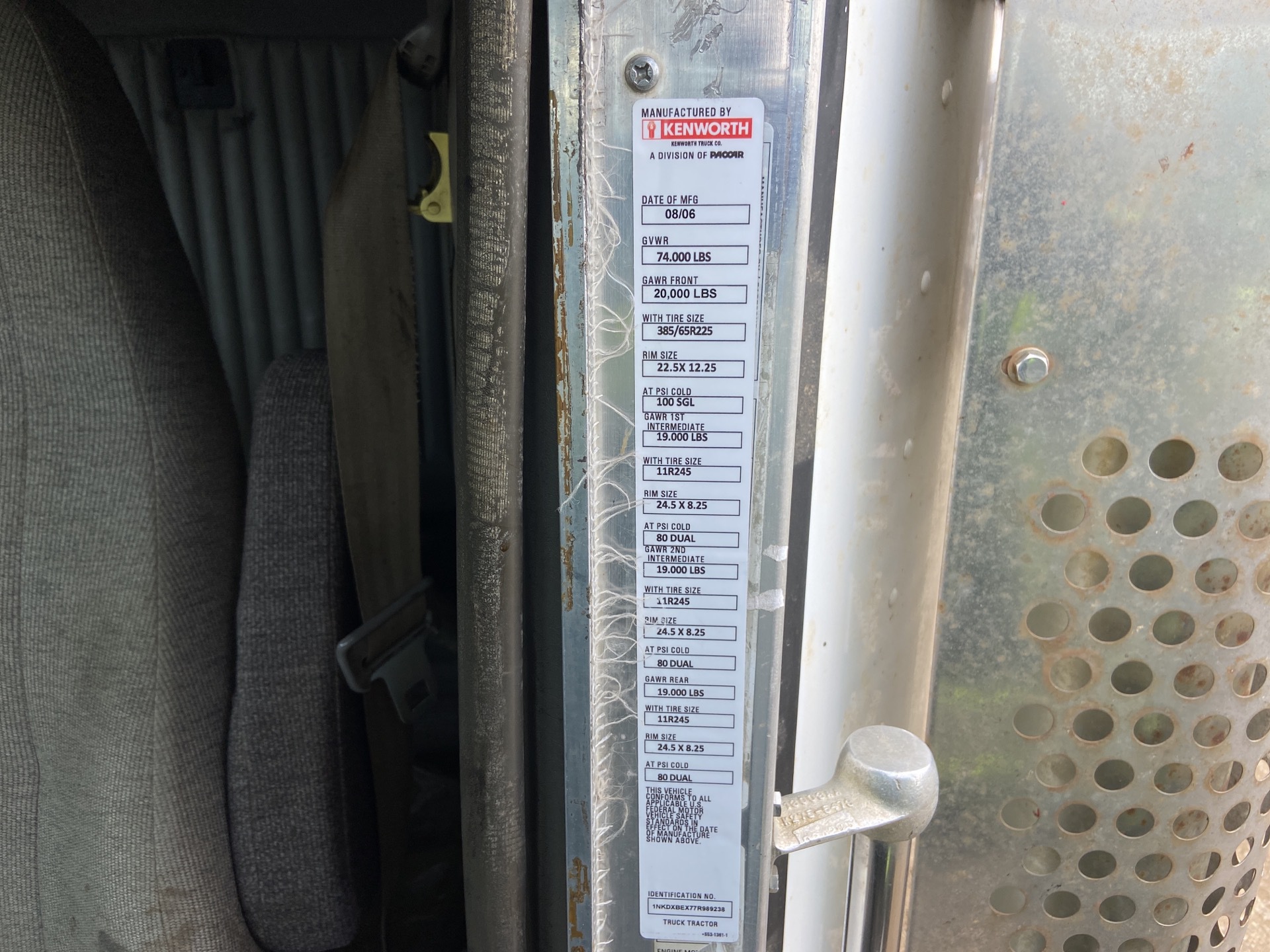

Identification Plate Images
Key Information
- Pic Number
- 450
- Specification
- 406
- Serial Number
- 46AT3061M62641749
- Manufacturer
- Goldec Hamms
- MFG Year
- 2006
- Tank Configuration
- Tridem Tank Truck
- # of Compartments
- 1
Technical Specifications
- MAWP
- 3.0 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -29 to 38C
- Head Material
- A1011
- Shell Material
- A36/A1011
- Weld Material
- E70S-6
- Total Volume
- 20280 L
- Max Payload
- 17505 kg
- Max Density
- 0.86 kg/L
- GVWR
- 74000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.1344 | 0.1076 |
| Top Shell | 0.1344 | 0.1076 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 20280 | 49 |
