407 - 5HTDL423X95J22917

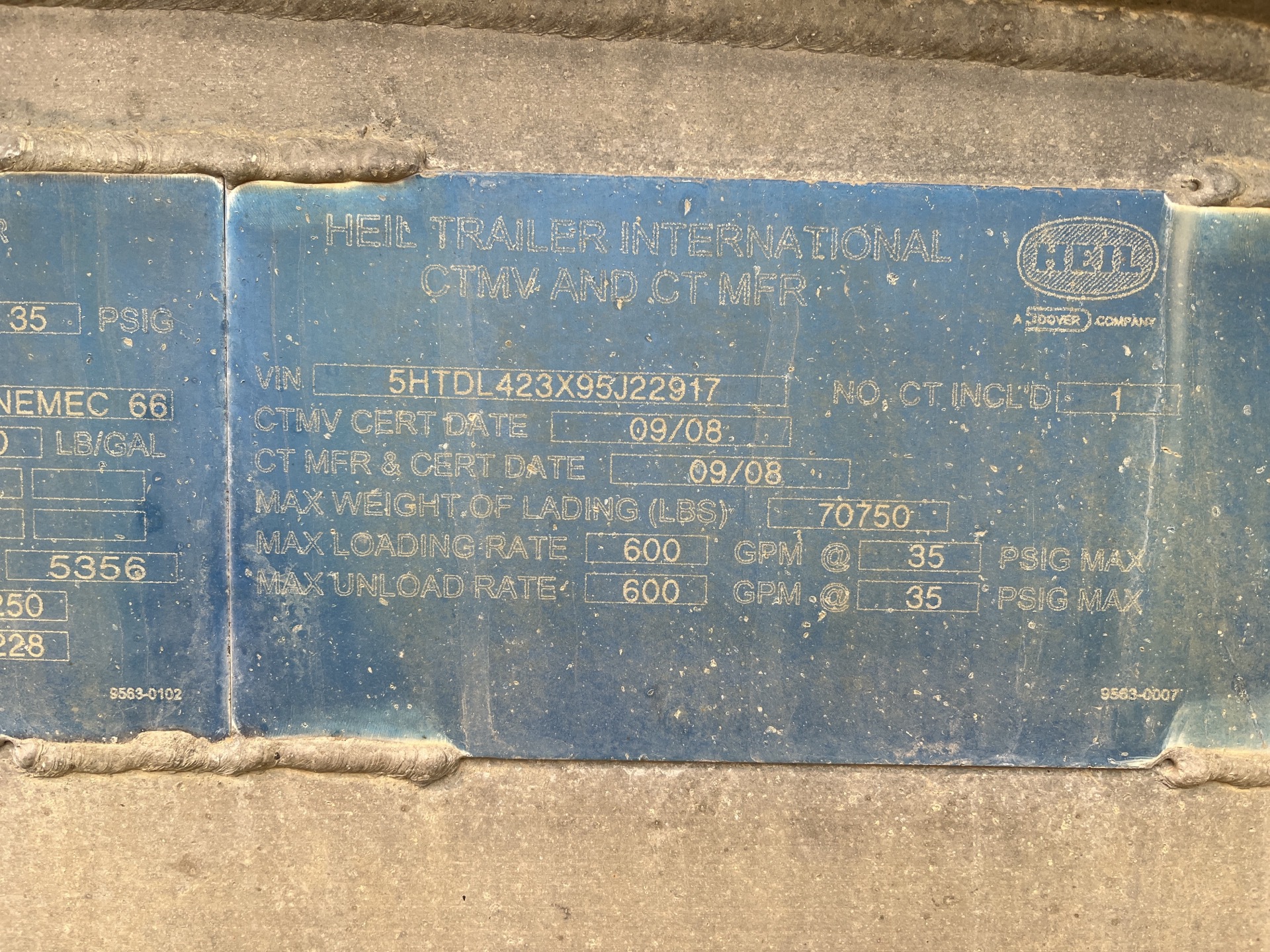

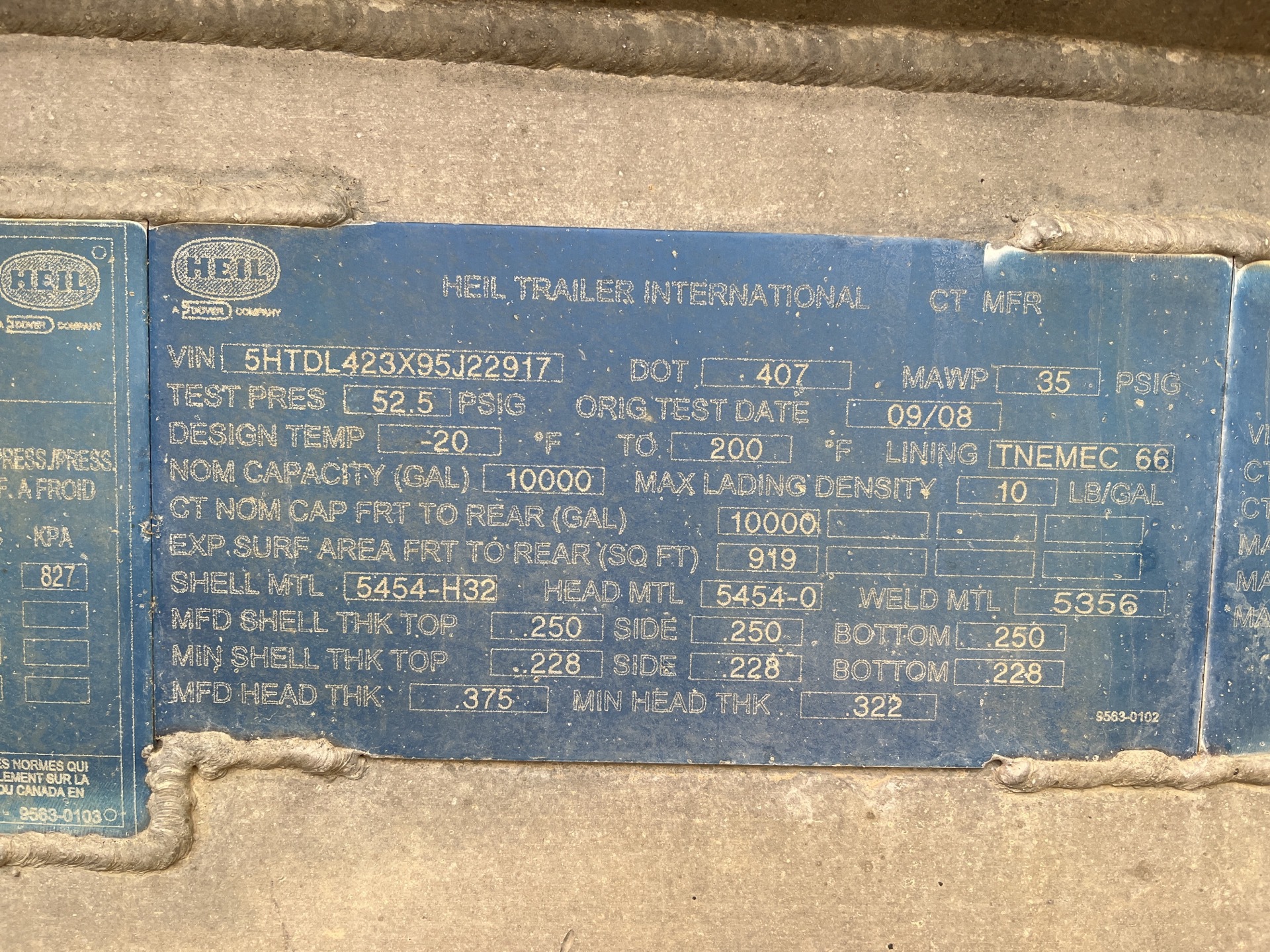

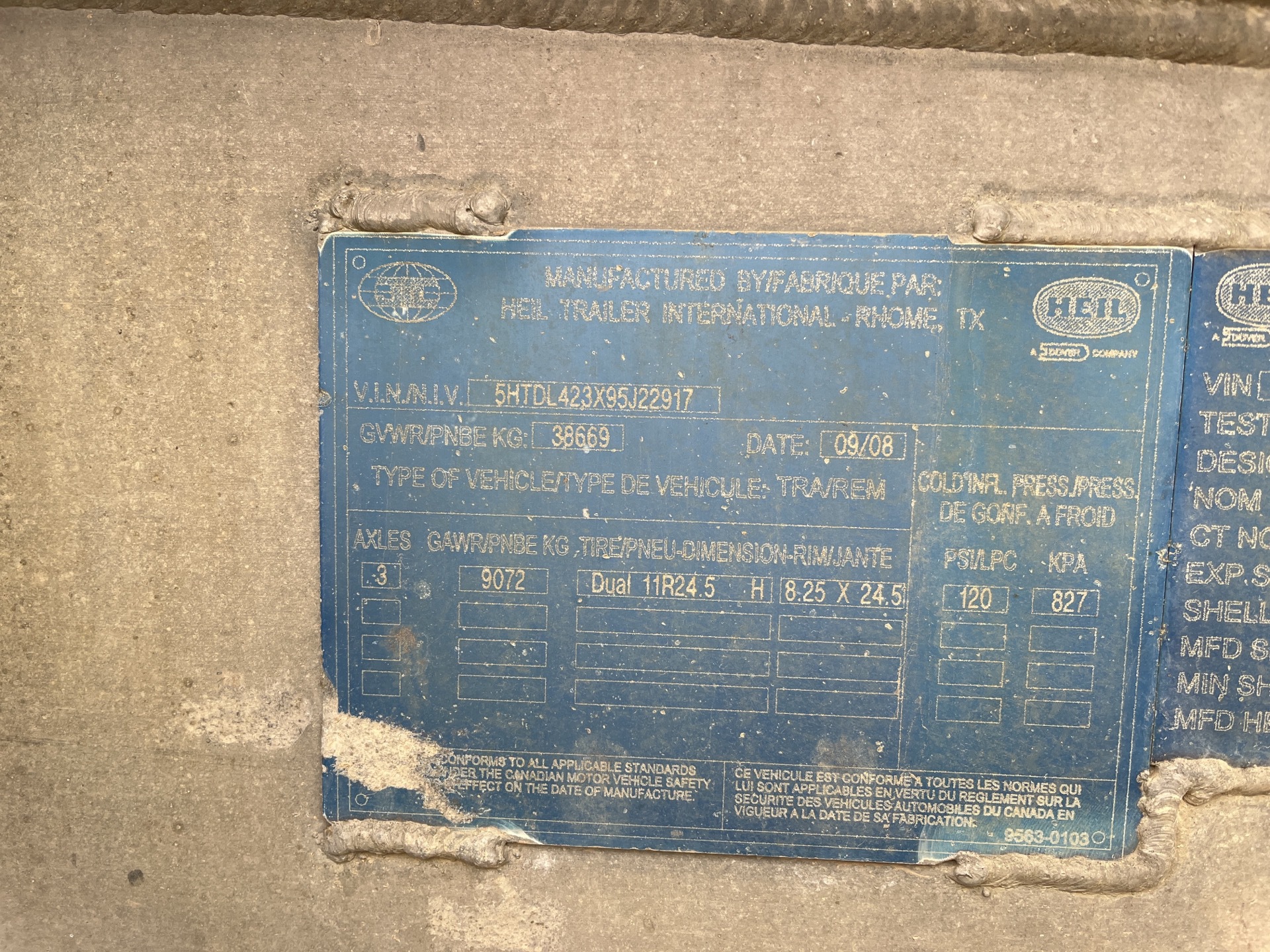

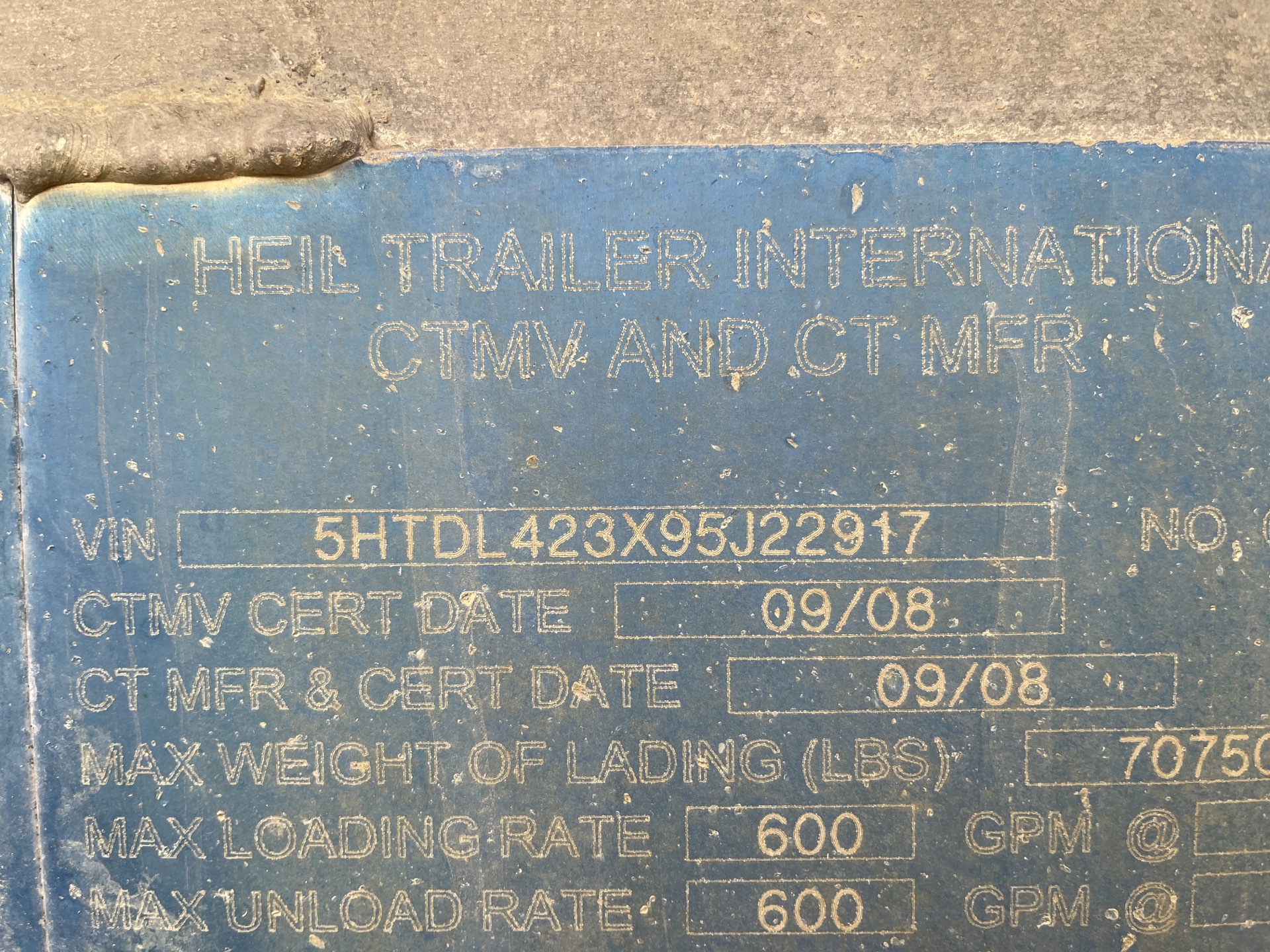

Identification Plate Images
Key Information
- Pic Number
- 452
- Specification
- 407
- Serial Number
- 5HTDL423X95J22917
- Manufacturer
- Heil
- MFG Year
- 2008
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 35.0 psi
- Test Pressure
- 52.5 psi
- Temperature Range
- -20F to 200F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 37854 L
- Max Payload
- 32092 kg
- Max Density
- 1.2 kg/L
- GVWR
- 85251 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.375 | 0.322 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 37854 | 85.4 |
