407 - 11818

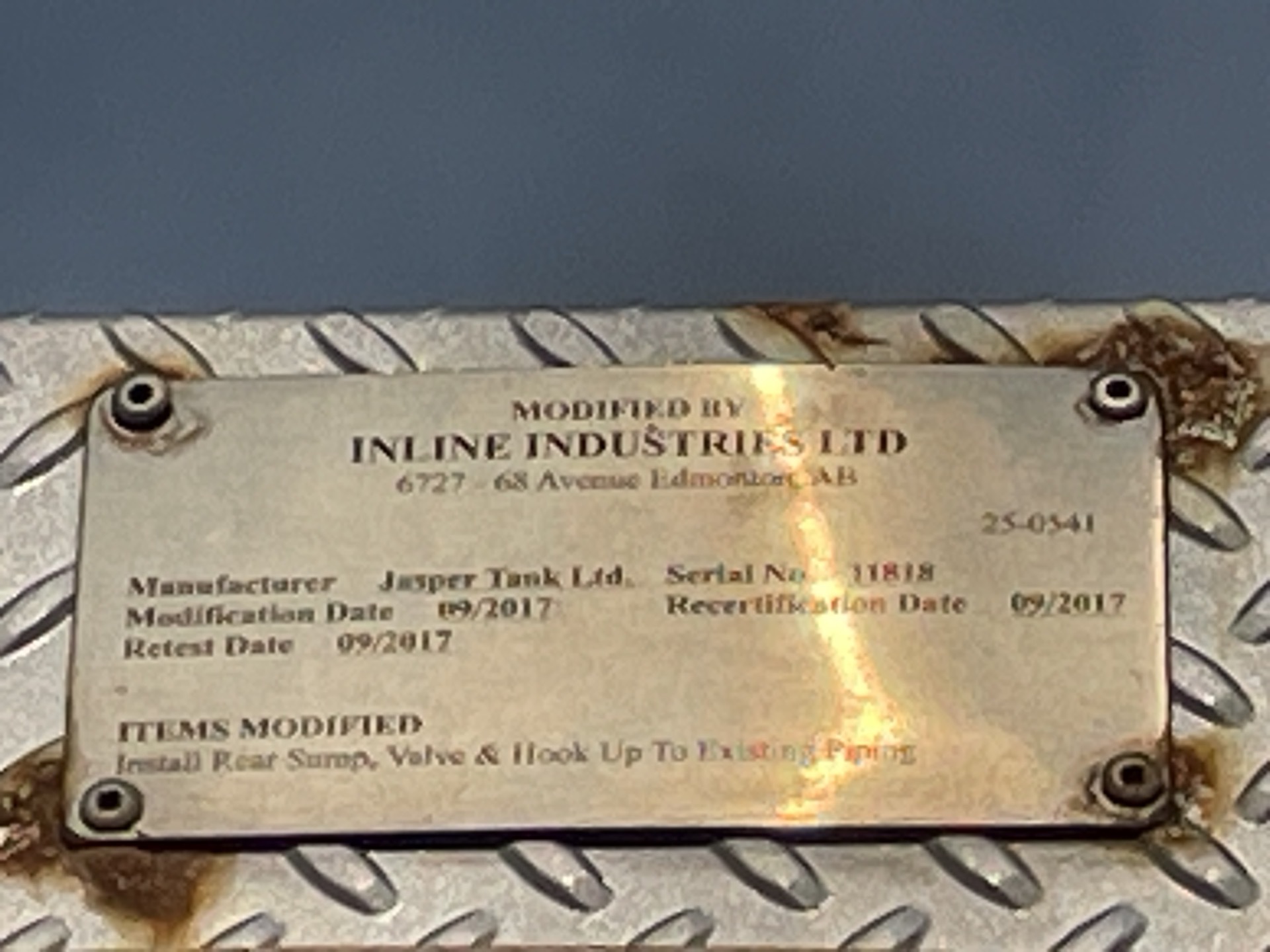

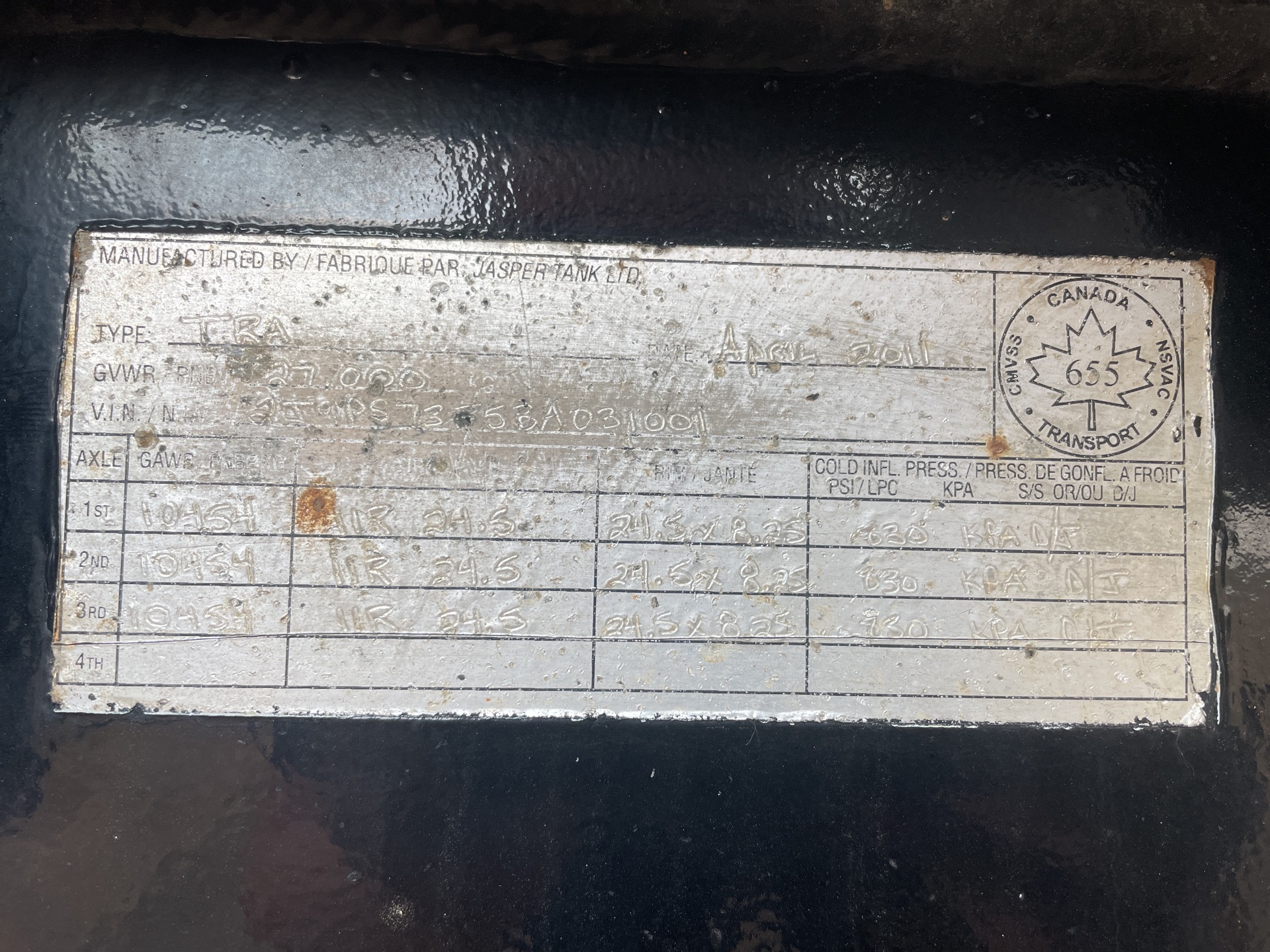

Identification Plate Images
Key Information
- Pic Number
- 455
- Specification
- 407
- Serial Number
- 11818
- Manufacturer
- Jasper Tank
- MFG Year
- 2011
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 40.0 psi
- Temperature Range
- -29C to 93C
- Head Material
- SA 285
- Shell Material
- SA 36
- Weld Material
- ER70S-6
- Total Volume
- 21321 L
- Max Payload
- 21321 kg
- Max Density
- 1 kg/L
- GVWR
- 59525 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.225 |
| Top Shell | 0.187 | 0.169 |
| Bottom Shell | 0.187 | 0.169 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 21321 | 49.3 |
