406 - 40289

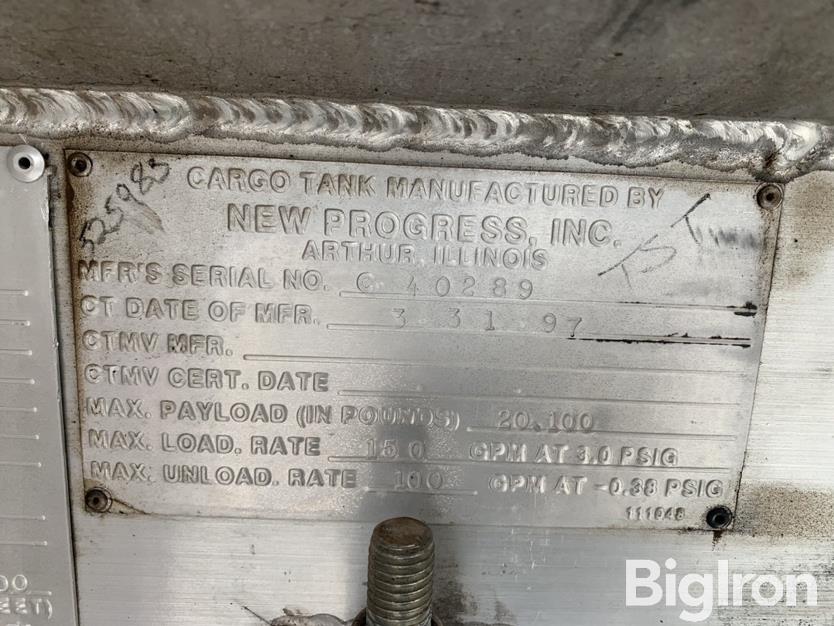

Identification Plate Images
Key Information
- Pic Number
- 484
- Specification
- 406
- Serial Number
- 40289
- Manufacturer
- New Progress
- MFG Year
- 1997
- Tank Configuration
- Single Axle Tank Truck
- # of Compartments
- 4
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40 to 140F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 10599 L
- Max Payload
- 9117 kg
- Max Density
- 0.86 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | - | 0.18 |
| Top Shell | - | 0.2 |
| Side Shell | - | 0.152 |
| Bottom Shell | - | 0.238 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 3028 | 10 |
| 2 | 3028 | 7.1 |
| 3 | 3028 | 6.6 |
| 4 | 1514 | 6.6 |
