406 - ST-8440-06

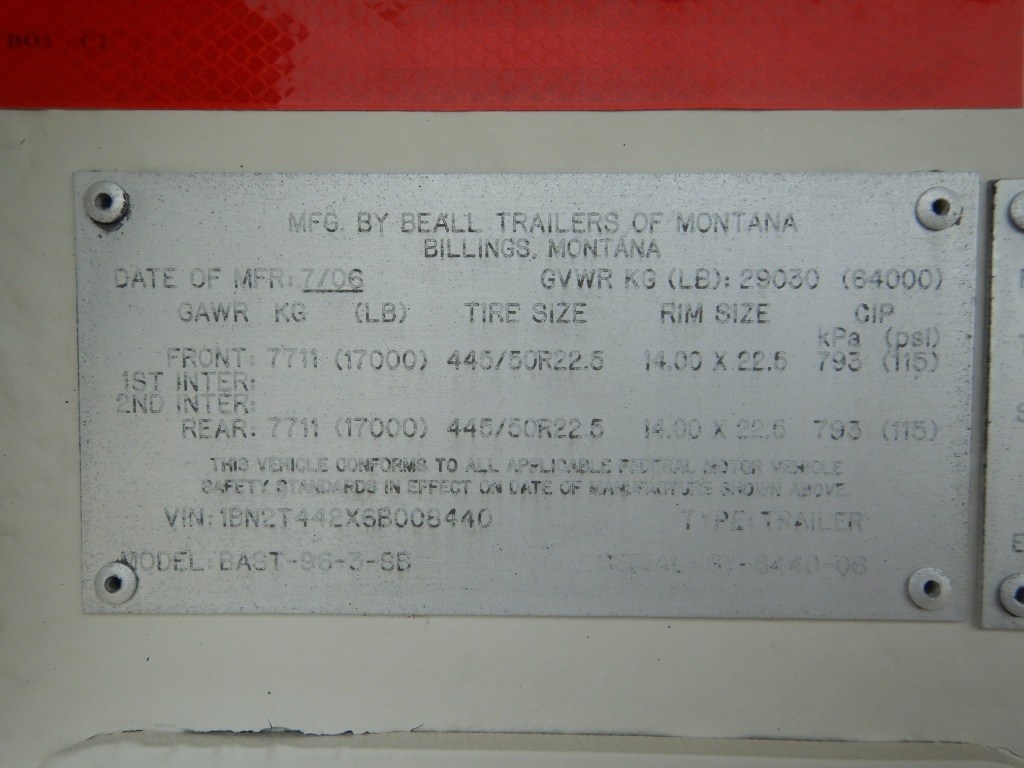

Identification Plate Images
Key Information
- Pic Number
- 495
- Specification
- 406
- Serial Number
- ST-8440-06
- Manufacturer
- Beall
- MFG Year
- 2006
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 3
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 36340 L
- Max Payload
- 25401 kg
- Max Density
- 0.9 kg/L
- GVWR
- 64000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.196 | 0.173 |
| Top Shell | 0.179 | 0.173 |
| Side Shell | 0.179 | 0.173 |
| Bottom Shell | 0.188 | 0.173 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 16656 | 38.5 |
| 2 | 4921 | 9.9 |
| 3 | 14763 | 34.4 |
