406 - C-52679

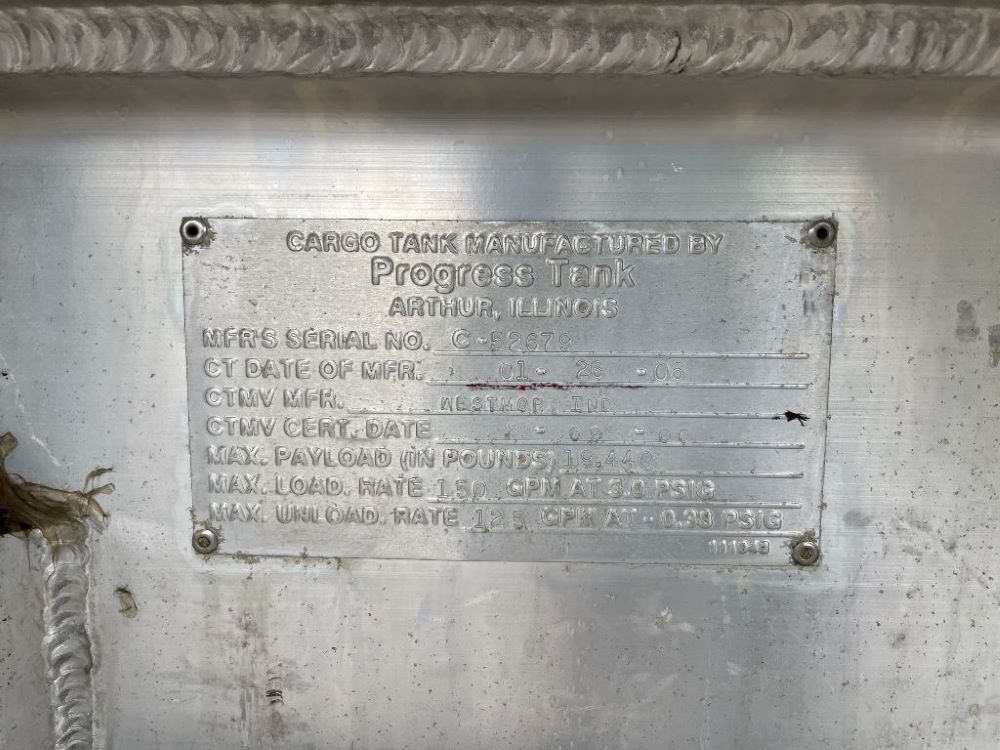

Identification Plate Images
Key Information
- Pic Number
- 496
- Specification
- 406
- Serial Number
- C-52679
- Manufacturer
- Progress Tank
- MFG Year
- 2006
- Tank Configuration
- Single Axle Tank Truck
- # of Compartments
- 5
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40F to 140F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 10221 L
- Max Payload
- 8818 kg
- Max Density
- 0.86 kg/L
- GVWR
- 33000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | - | 0.18 |
| Top Shell | - | 0.2 |
| Side Shell | - | 0.152 |
| Bottom Shell | - | 0.238 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 2650 | 8.6 |
| 2 | 2271 | 5.6 |
| 3 | 1893 | 4.6 |
| 4 | 1893 | 4.6 |
| 5 | 1514 | 6.6 |
