407 - 2L9TS5324WD079048

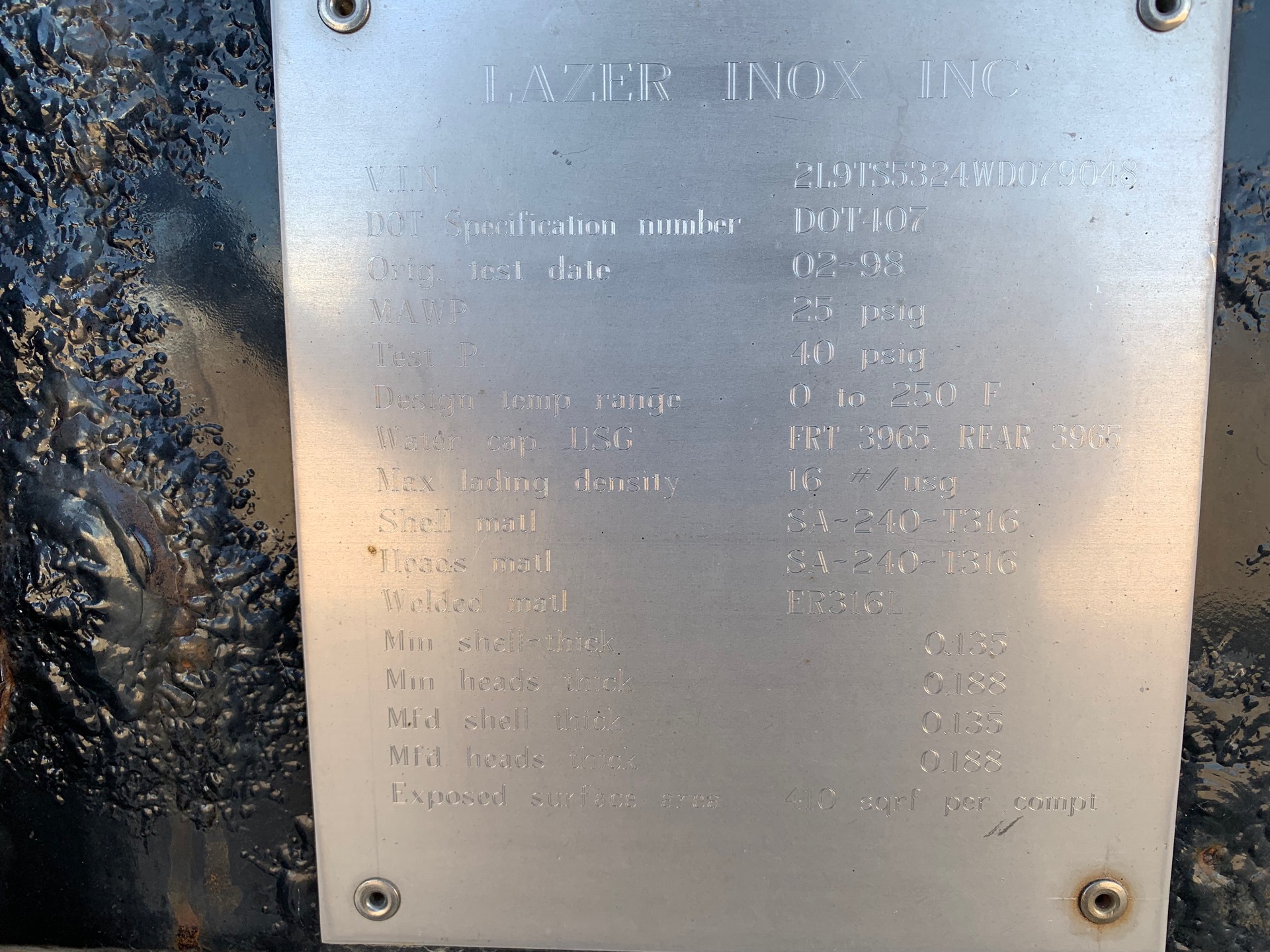

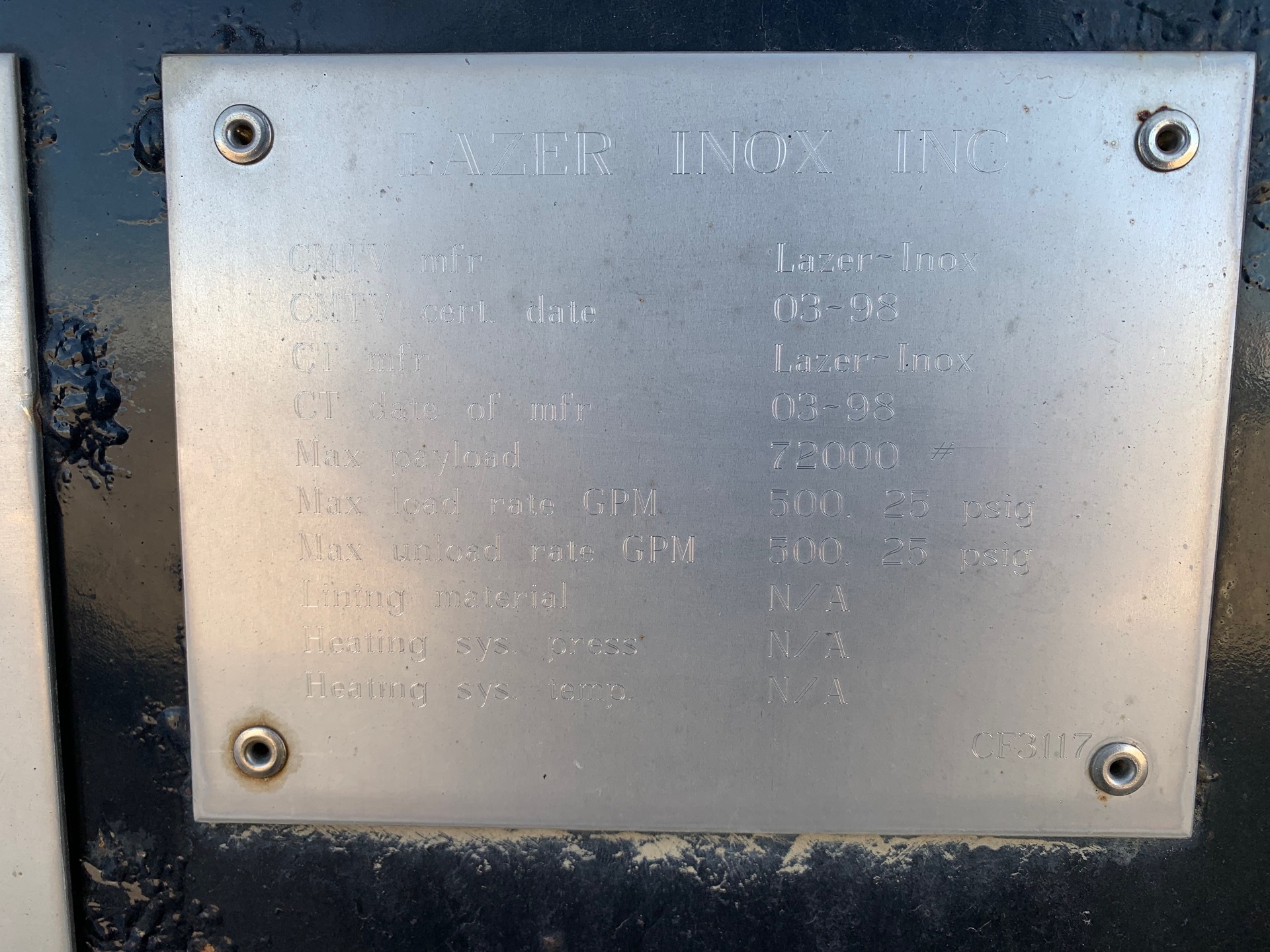

Identification Plate Images
Key Information
- Pic Number
- 511
- Specification
- 407
- Serial Number
- 2L9TS5324WD079048
- Manufacturer
- Lazer Inox
- MFG Year
- 1998
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 2
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 40.0 psi
- Temperature Range
- 0 to 250F
- Head Material
- SA-240 T316
- Shell Material
- SA-240 T316
- Weld Material
- ER316L
- Total Volume
- 30018 L
- Max Payload
- 32659 kg
- Max Density
- 1.92 kg/L
- GVWR
- 38500 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.188 | 0.188 |
| Shell | 0.135 | 0.135 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 15009 | 38.1 |
| 2 | 15009 | 38.1 |
