407 - 2B9E6D654X4007410

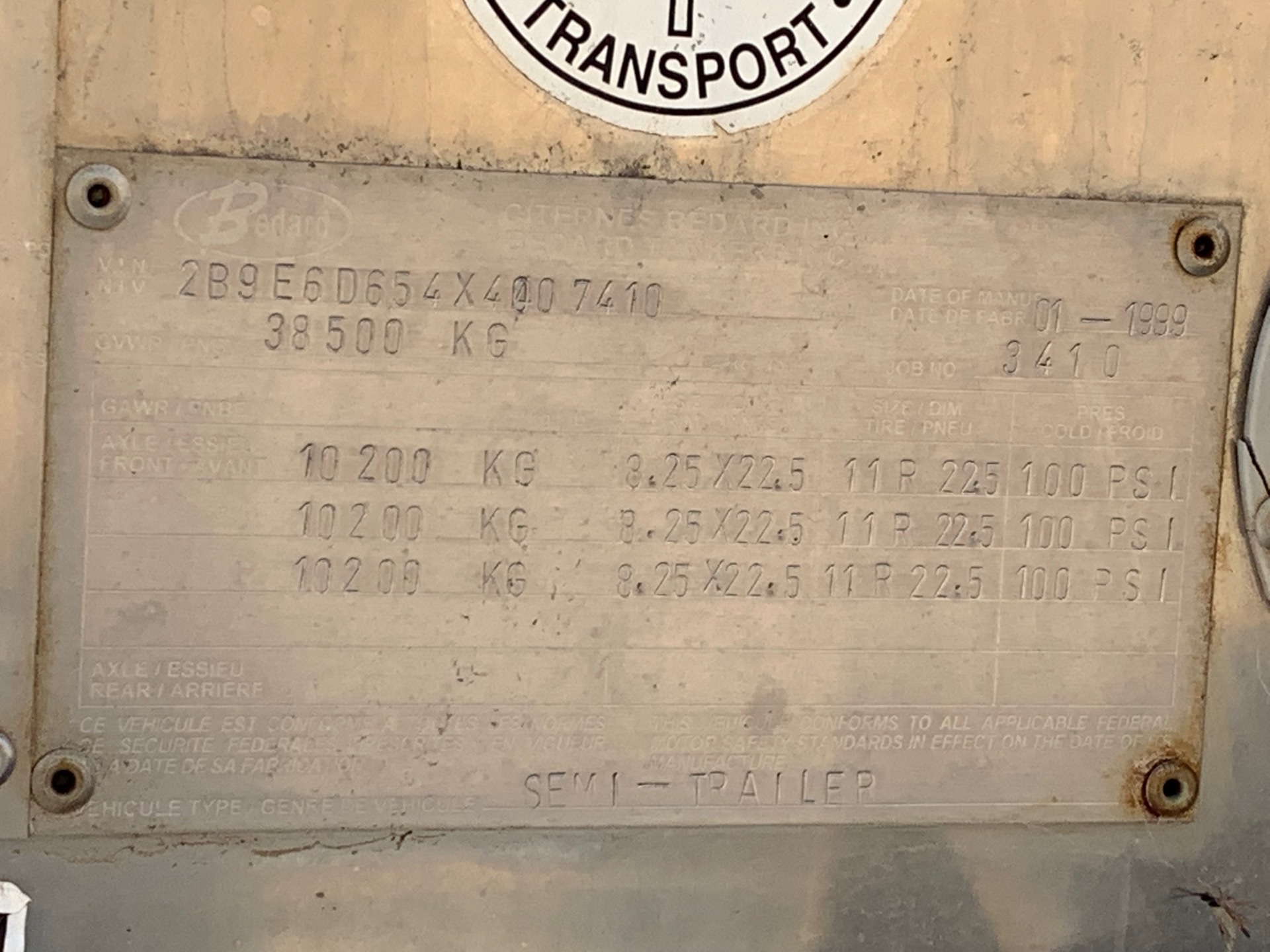

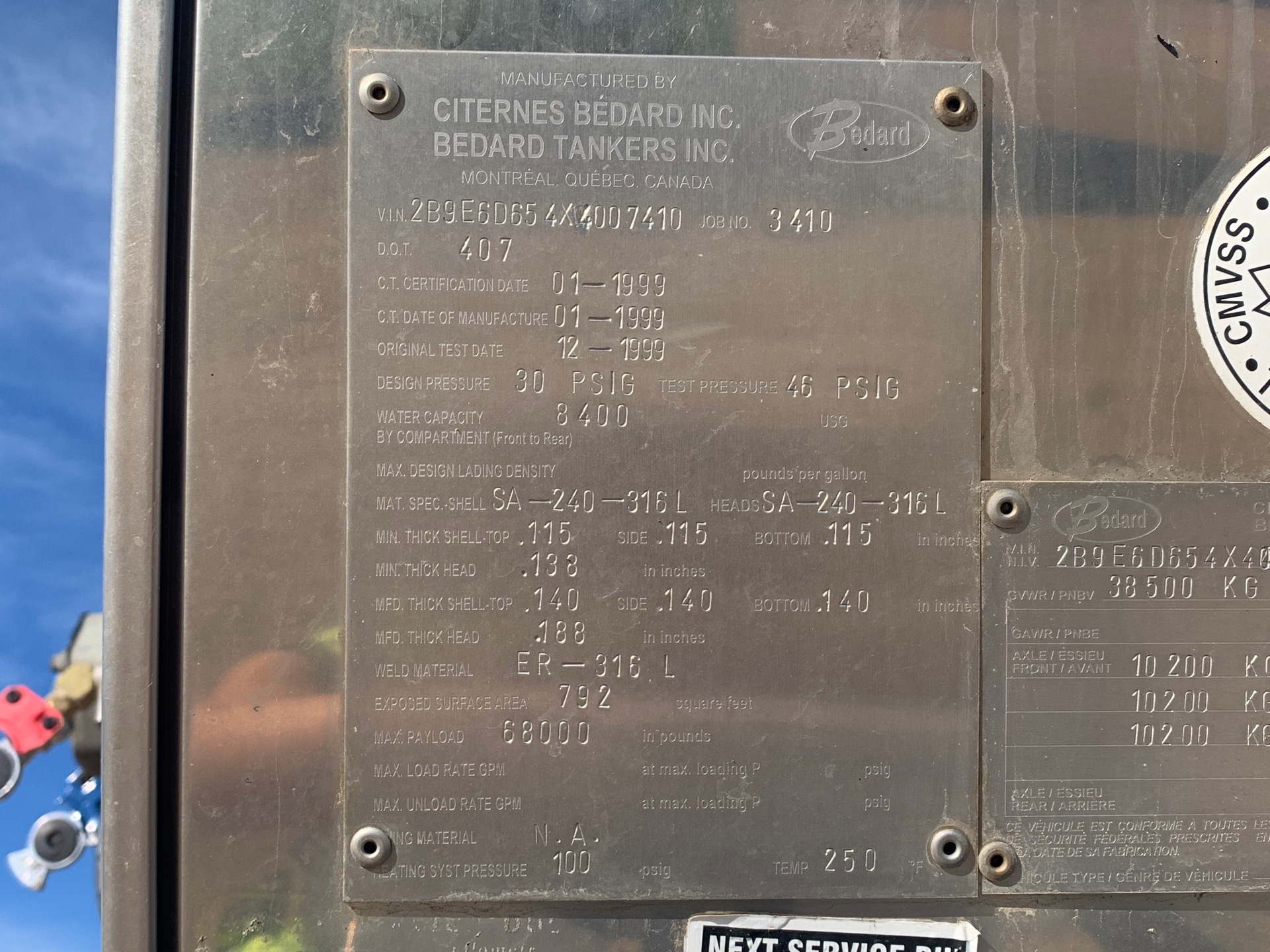

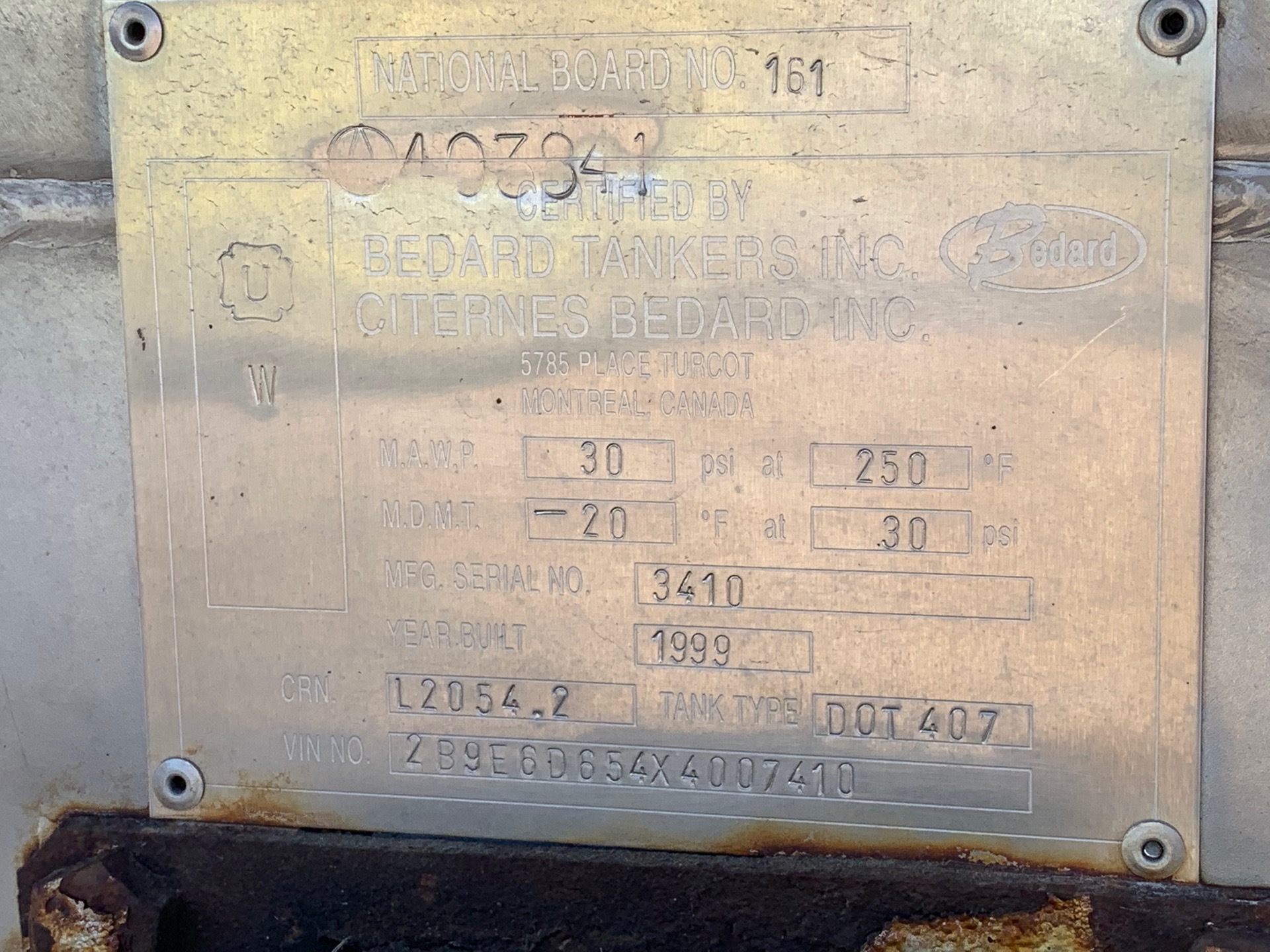

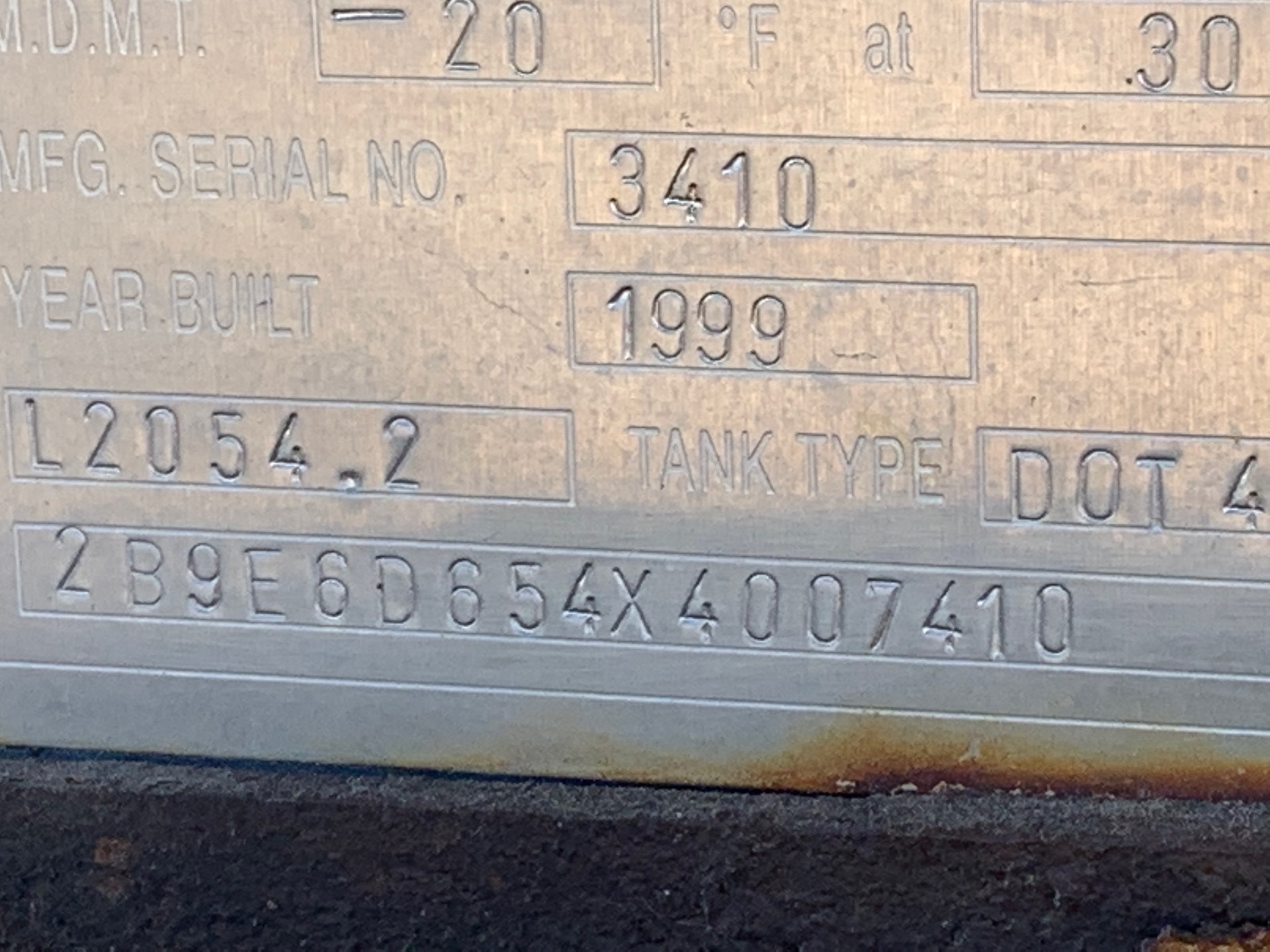

Identification Plate Images
Key Information
- Pic Number
- 517
- Specification
- 407
- Serial Number
- 2B9E6D654X4007410
- Manufacturer
- Bedard
- MFG Year
- 1999
- CRN
- L2054.2
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 30.0 psi
- Test Pressure
- 46.0 psi
- Head Material
- SA-240 316L
- Shell Material
- SA-240 316L
- Weld Material
- ER316L
- Total Volume
- 31797 L
- Max Payload
- 30844 kg
- GVWR
- 84878 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.188 | 0.138 |
| Top Shell | 0.14 | 0.115 |
| Side Shell | 0.14 | 0.115 |
| Bottom Shell | 0.14 | 0.115 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 31797 | 73.6 |
