407 - X1-21449

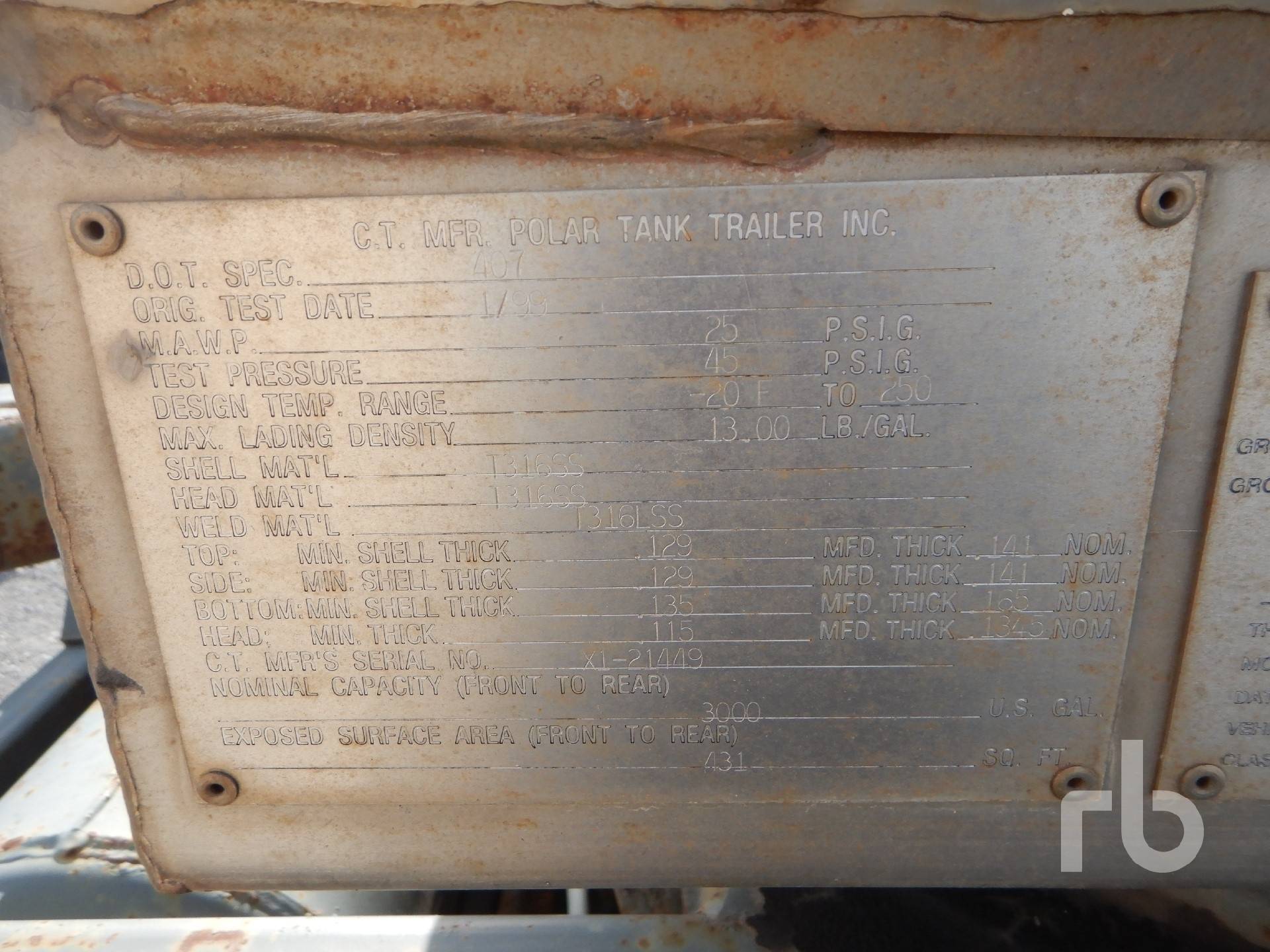

Identification Plate Images
Key Information
- Pic Number
- 518
- Specification
- 407
- Serial Number
- X1-21449
- Manufacturer
- Polar Tank
- MFG Year
- 1999
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 45.0 psi
- Temperature Range
- -20F to 250F
- Head Material
- T316 SS
- Shell Material
- T316 SS
- Weld Material
- T316LSS
- Total Volume
- 11356 L
- Max Payload
- 26308 kg
- Max Density
- 1.56 kg/L
- GVWR
- 68000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.1345 | 0.115 |
| Top Shell | 0.141 | 0.129 |
| Side Shell | 0.141 | 0.129 |
| Bottom Shell | 0.165 | 0.135 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 11356 | 40 |
