407 - X1-21443

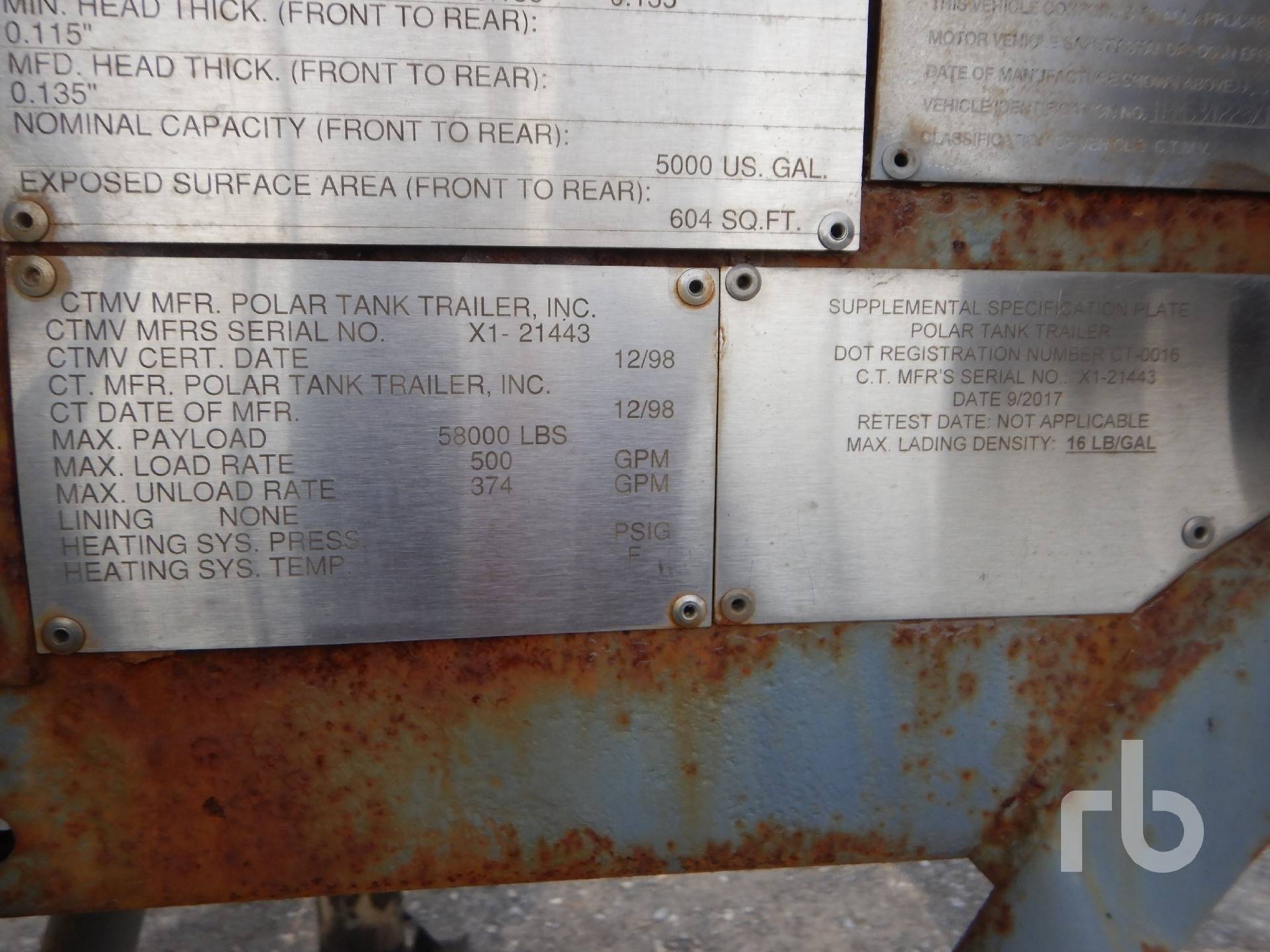

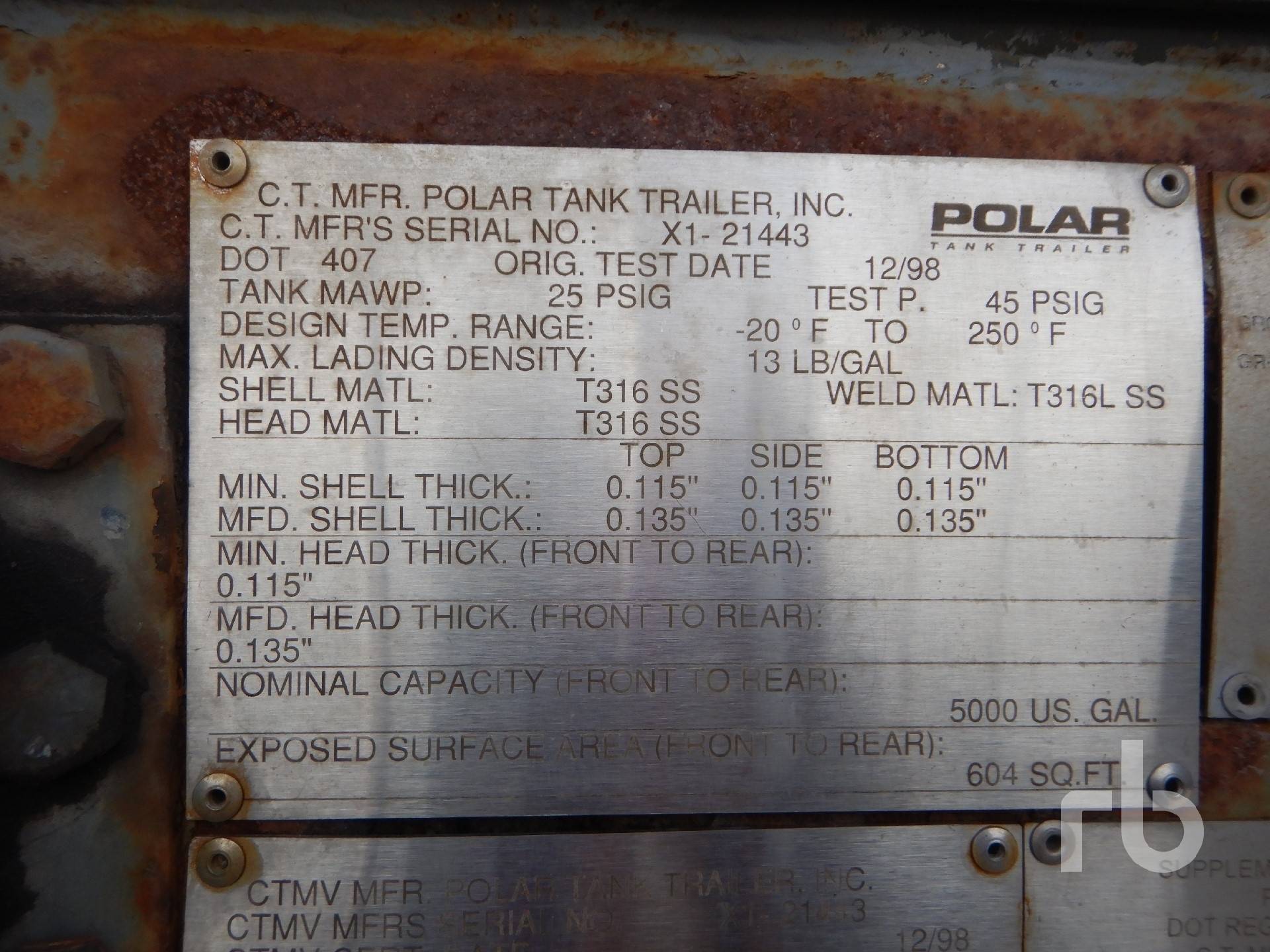

Identification Plate Images
Key Information
- Pic Number
- 519
- Specification
- 407
- Serial Number
- X1-21443
- Manufacturer
- Polar Tank
- MFG Year
- 1998
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 45.0 psi
- Temperature Range
- -20F to 250F
- Head Material
- T316 SS
- Shell Material
- T316 SS
- Weld Material
- T316L SS
- Total Volume
- 18927 L
- Max Payload
- 26308 kg
- Max Density
- 1.92 kg/L
- GVWR
- 68000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.135 | 0.115 |
| Top Shell | 0.135 | 0.115 |
| Side Shell | 0.135 | 0.115 |
| Bottom Shell | 0.135 | 0.115 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 18927 | 56.1 |
