331 - P252-0723-9018-35

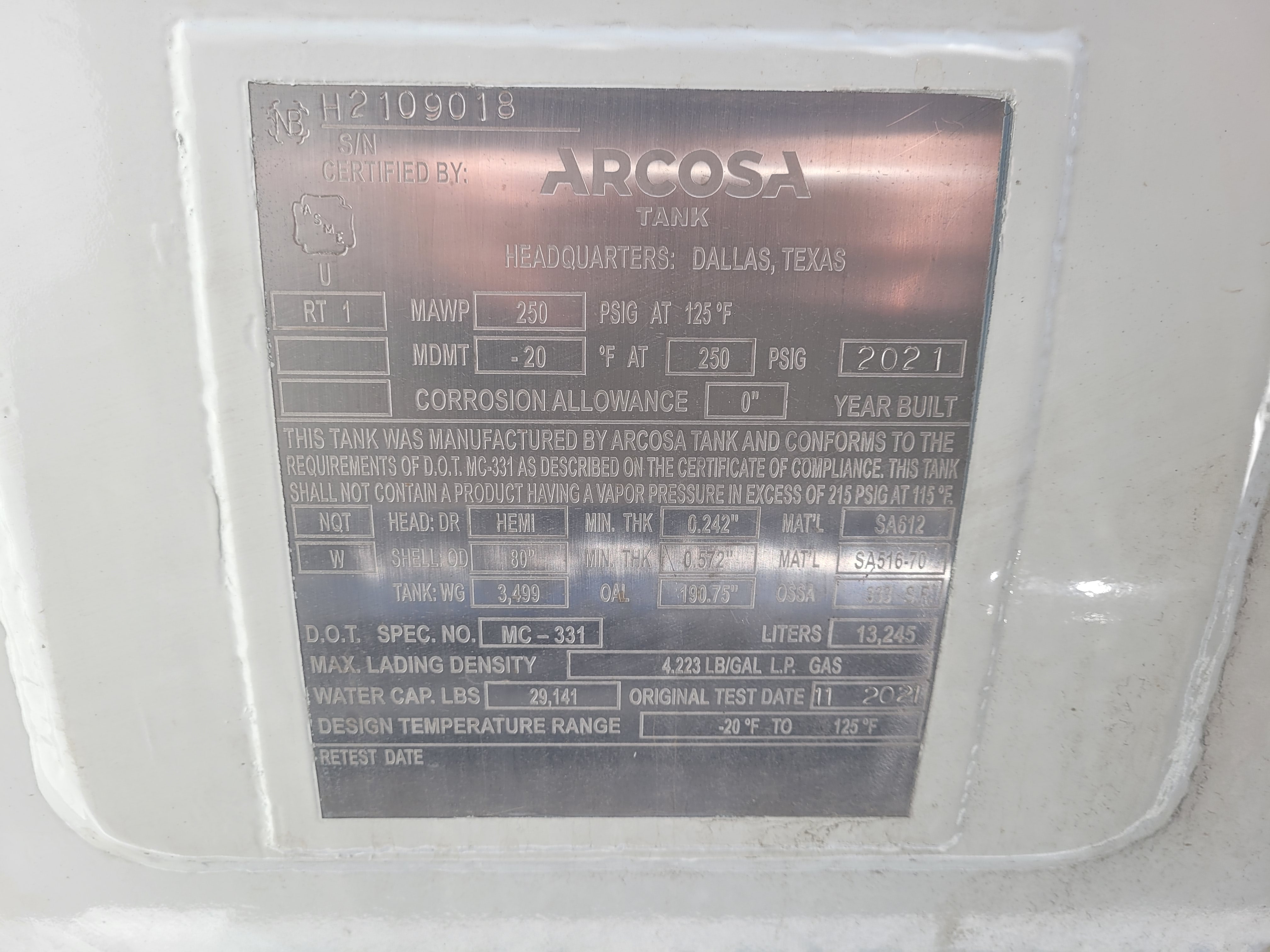

Identification Plate Images
Key Information
- Pic Number
- 563
- Specification
- 331
- Serial Number
- P252-0723-9018-35
- Manufacturer
- Arcosa
- MFG Year
- 2021
- TCRN
- Z-02-0060-18-21
- Tank Configuration
- Single Axle Tank Truck
- # of Compartments
- 1
Technical Specifications
- MAWP
- 250.0 psi
- Test Pressure
- 375.0 psi
- Temperature Range
- -29C to 51C
- Head Material
- SA 612
- Shell Material
- SA 516-70
- Weld Material
- EM12K
- Total Volume
- 13244 L
- Max Payload
- 5720 kg
- Max Density
- 0.51 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.242 | 0.242 |
| Shell | 0.572 | 0.572 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 13244 | 30.9 |
