406 - TT29942-02

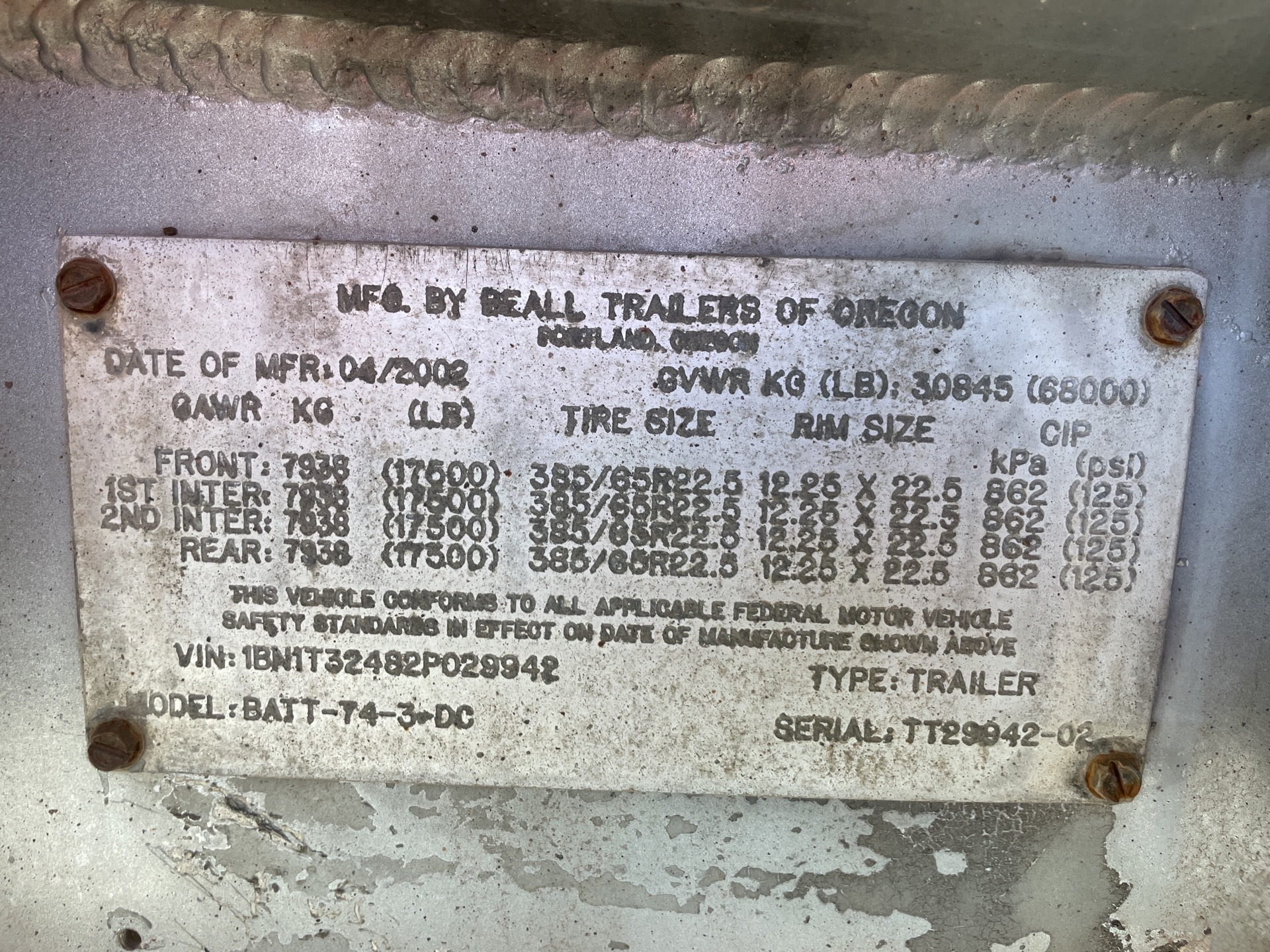

Identification Plate Images
Key Information
- Pic Number
- 568
- Specification
- 406
- Serial Number
- TT29942-02
- Manufacturer
- Beall
- MFG Year
- 2002
- Tank Configuration
- Quad Axle Trailer
- # of Compartments
- 3
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -20F to 150F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 28012 L
- Max Payload
- 25401 kg
- Max Density
- 0.9 kg/L
- GVWR
- 68000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.196 | 0.173 |
| Top Shell | 0.179 | 0.16 |
| Side Shell | 0.179 | 0.16 |
| Bottom Shell | 0.188 | 0.16 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 10599 | 25.4 |
| 2 | 5678 | 11.6 |
| 3 | 11735 | 27.9 |
