407 - 81-33194

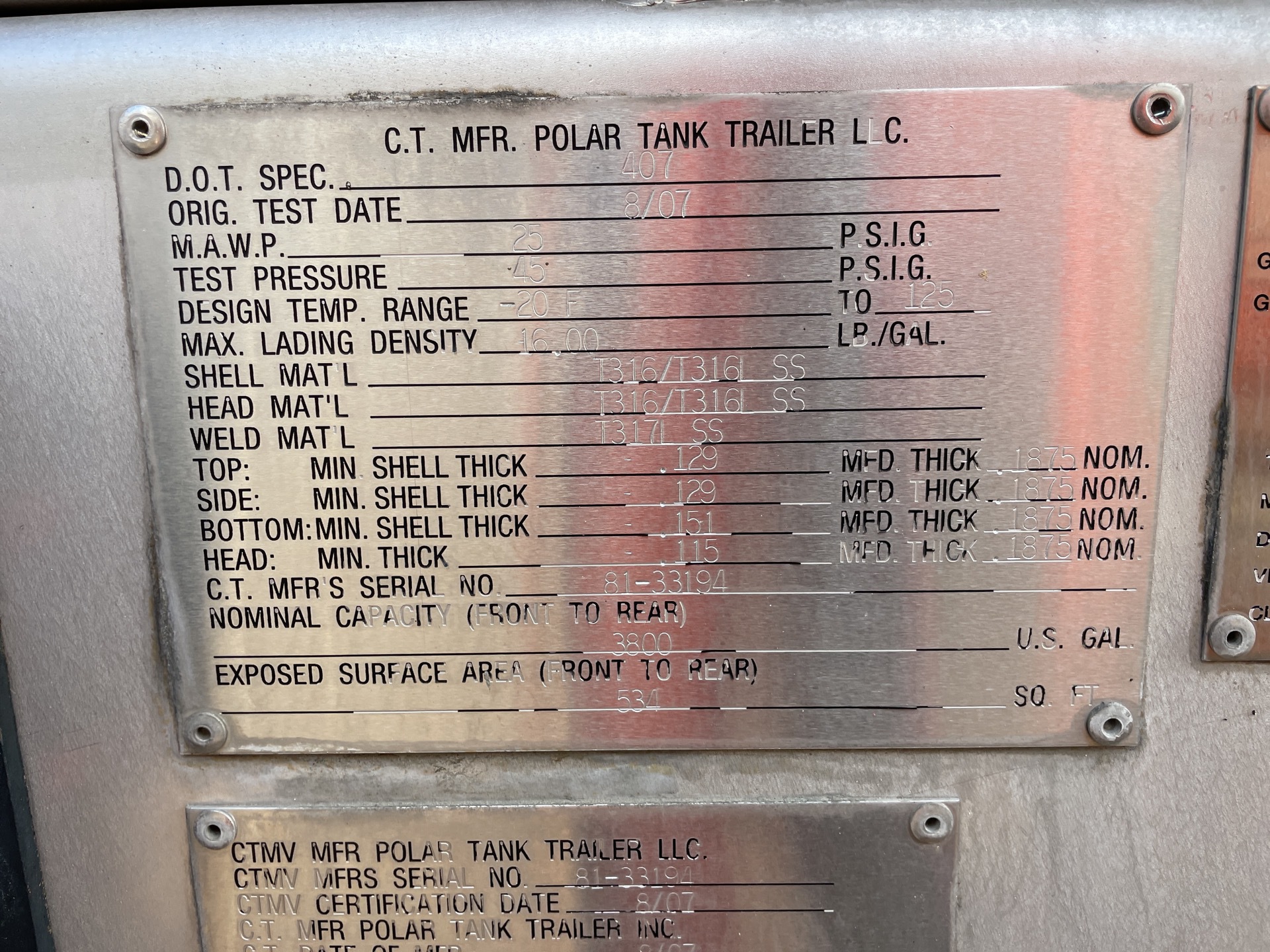

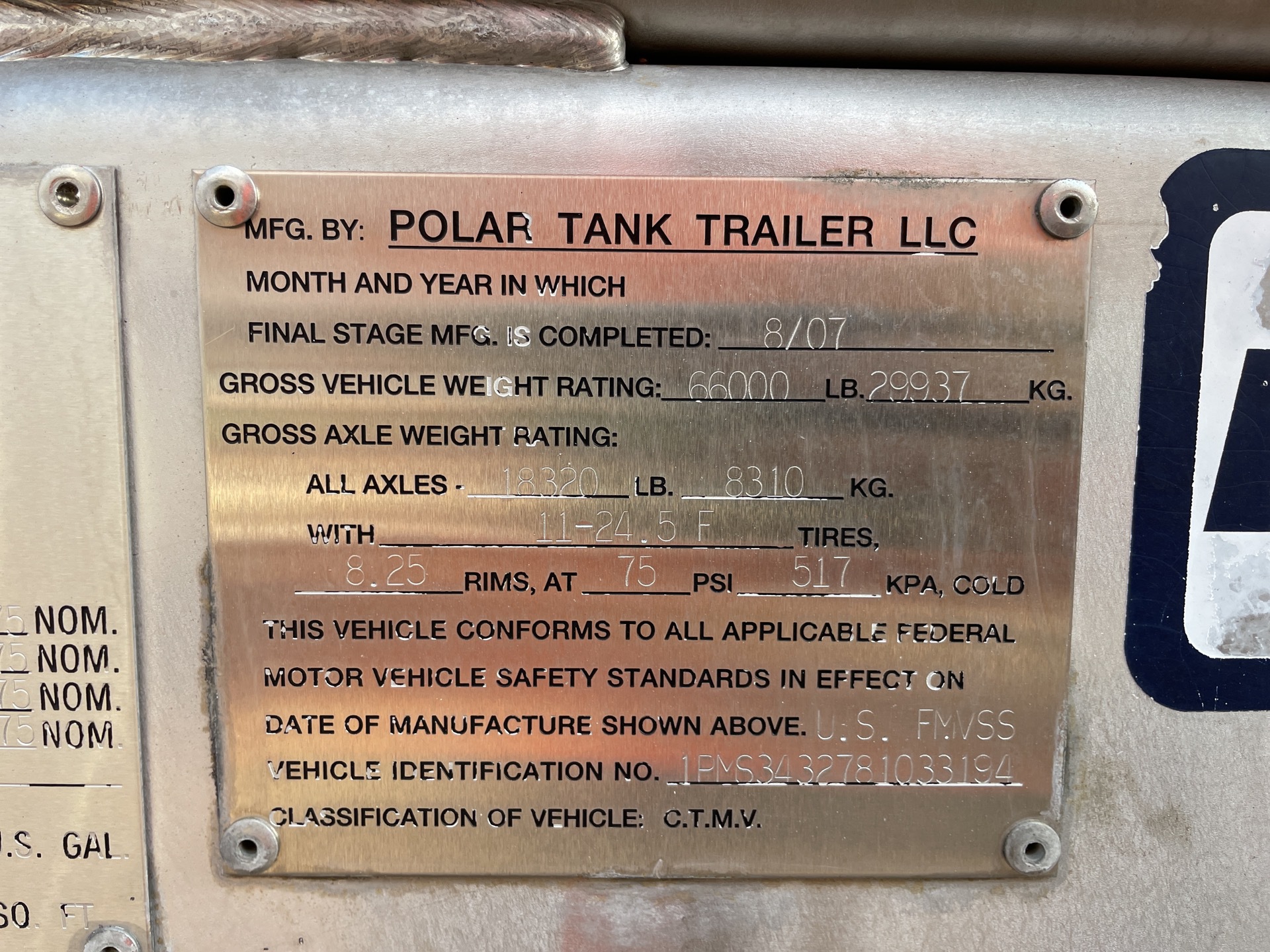

Identification Plate Images
Key Information
- Pic Number
- 576
- Specification
- 407
- Serial Number
- 81-33194
- Manufacturer
- Polar Tank
- MFG Year
- 2007
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 45.0 psi
- Temperature Range
- -20F to 125F
- Head Material
- T316/T316L SS
- Shell Material
- T316/T316L SS
- Weld Material
- T317L SS
- Total Volume
- 14385 L
- Max Payload
- 25174 kg
- Max Density
- 1.92 kg/L
- GVWR
- 66000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.1875 | 0.115 |
| Top Shell | 0.1875 | 0.129 |
| Side Shell | 0.1875 | 0.129 |
| Bottom Shell | 0.1875 | 0.151 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 14385 | 49.6 |
