406 - C-51203

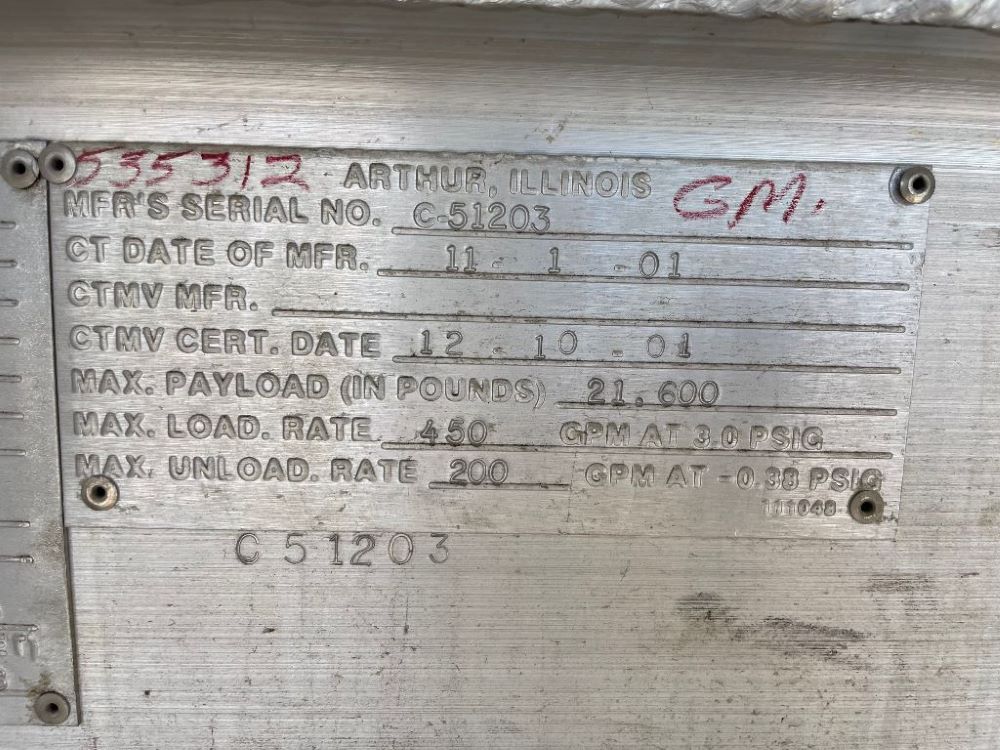

Identification Plate Images
Key Information
- Pic Number
- 587
- Specification
- 406
- Serial Number
- C-51203
- Manufacturer
- Progress Tank
- MFG Year
- 2001
- Tank Configuration
- Single Axle Tank Truck
- # of Compartments
- 4
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40F to 140F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 11356 L
- Max Payload
- 9798 kg
- Max Density
- 0.86 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | - | 0.2 |
| Top Shell | - | 0.2 |
| Side Shell | - | 0.18 |
| Bottom Shell | - | 0.297 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 3785 | 11.1 |
| 2 | 3785 | 8.5 |
| 3 | 2650 | 5.9 |
| 4 | 1136 | 7.2 |
