407 - 652

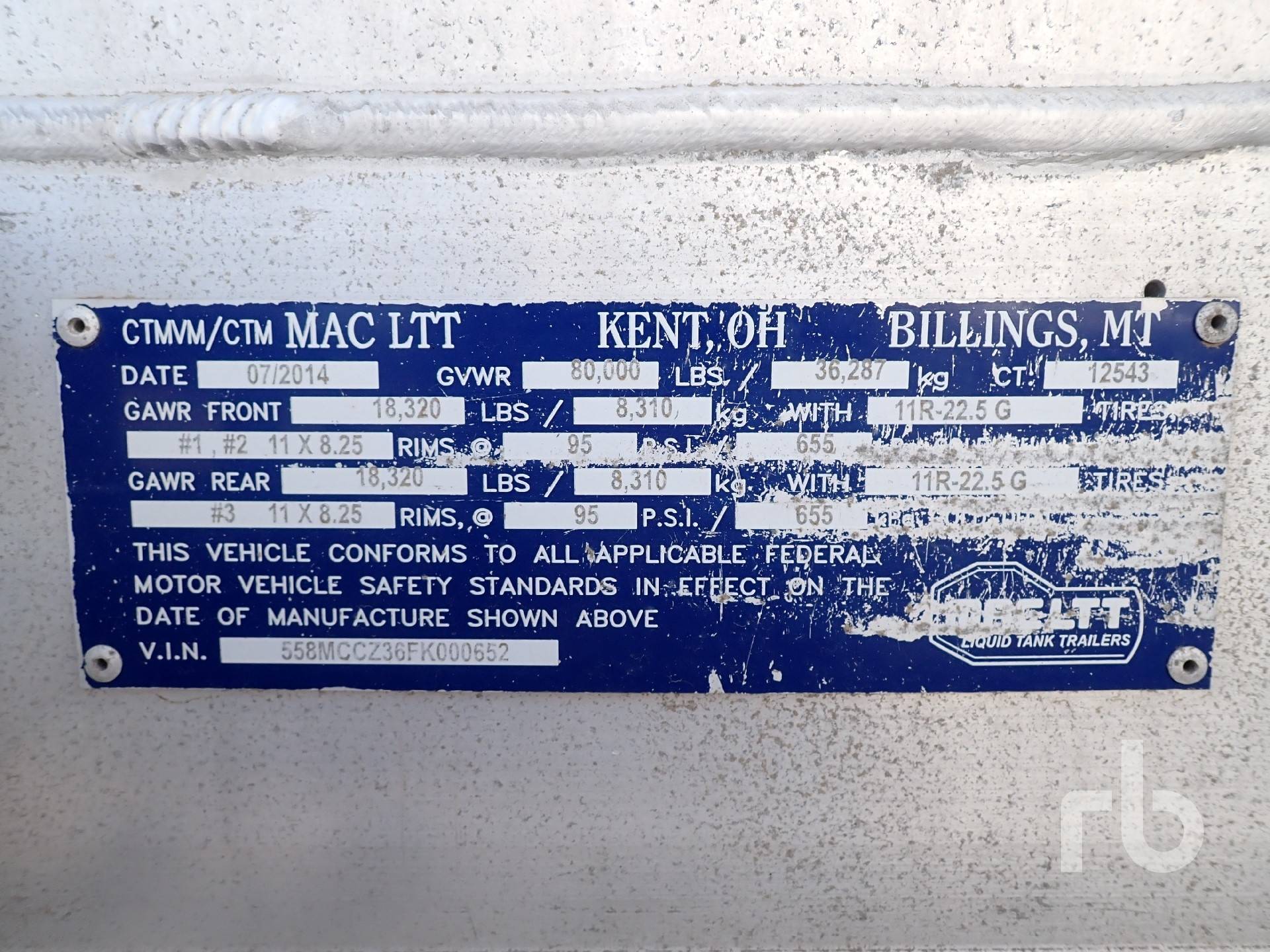

Identification Plate Images
Key Information
- Pic Number
- 612
- Specification
- 407
- Serial Number
- 652
- Manufacturer
- MAC LTT
- MFG Year
- 2014
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 2
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 45.0 psi
- Temperature Range
- -20F to 180F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 39747 L
- Max Payload
- 70000 kg
- Max Density
- 1.56 kg/L
- GVWR
- 80000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.313 | 0.248 |
| Top Shell | 0.25 | 0.204 |
| Side Shell | 0.25 | 0.204 |
| Bottom Shell | 0.25 | 0.238 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 19873 | 51.1 |
| 2 | 19873 | 51.1 |
