407 - E5-13229

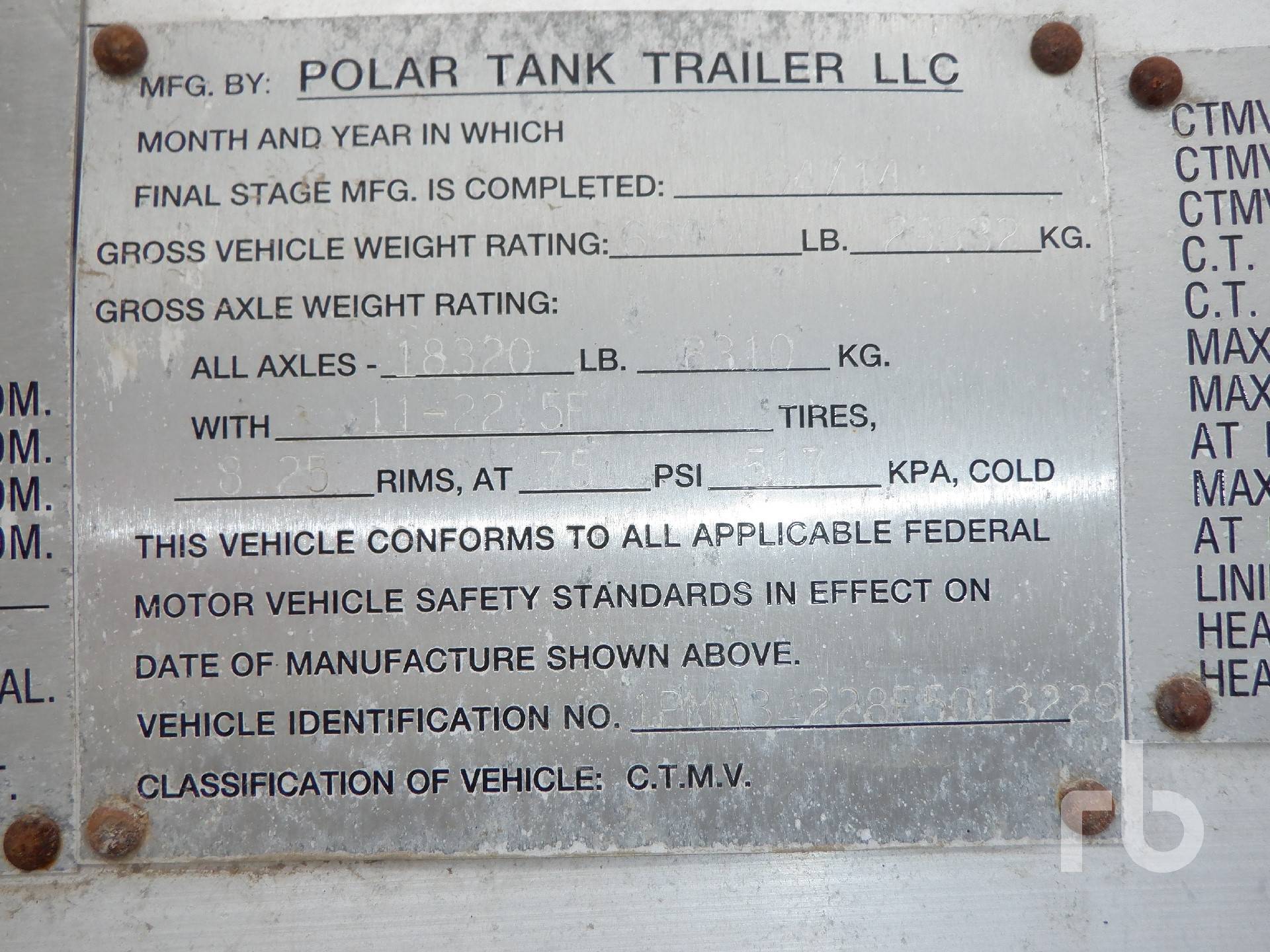

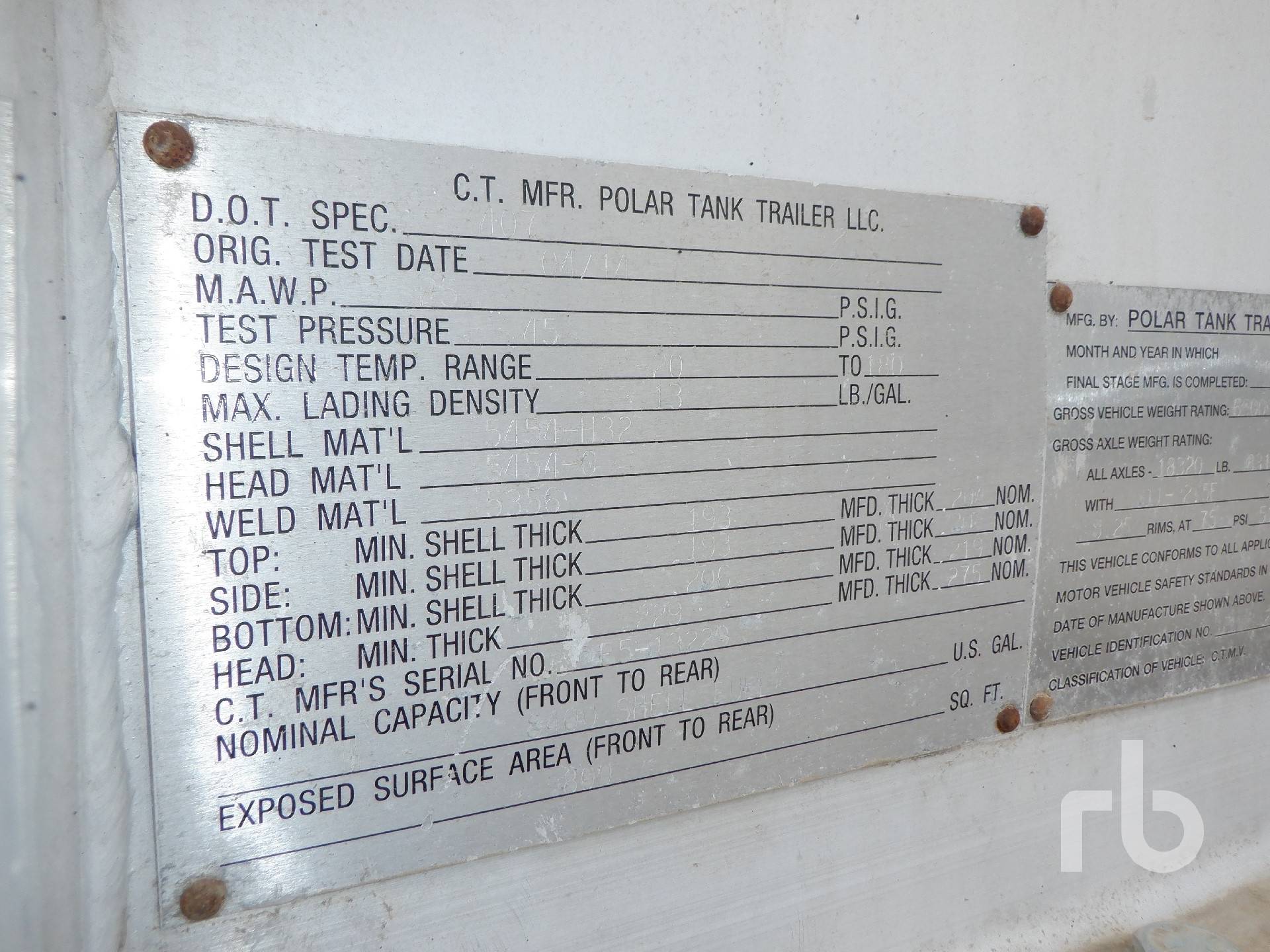

Identification Plate Images
Key Information
- Pic Number
- 617
- Specification
- 407
- Serial Number
- E5-13229
- Manufacturer
- Polar Tank
- MFG Year
- 2014
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 45.0 psi
- Temperature Range
- -20F to 180F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 31797 L
- Max Payload
- 25628 kg
- Max Density
- 1.56 kg/L
- GVWR
- 66000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.275 | 0.229 |
| Top Shell | 0.204 | 0.193 |
| Side Shell | 0.204 | 0.193 |
| Bottom Shell | 0.219 | 0.206 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 31797 | 74.3 |
