407 - E1-43777

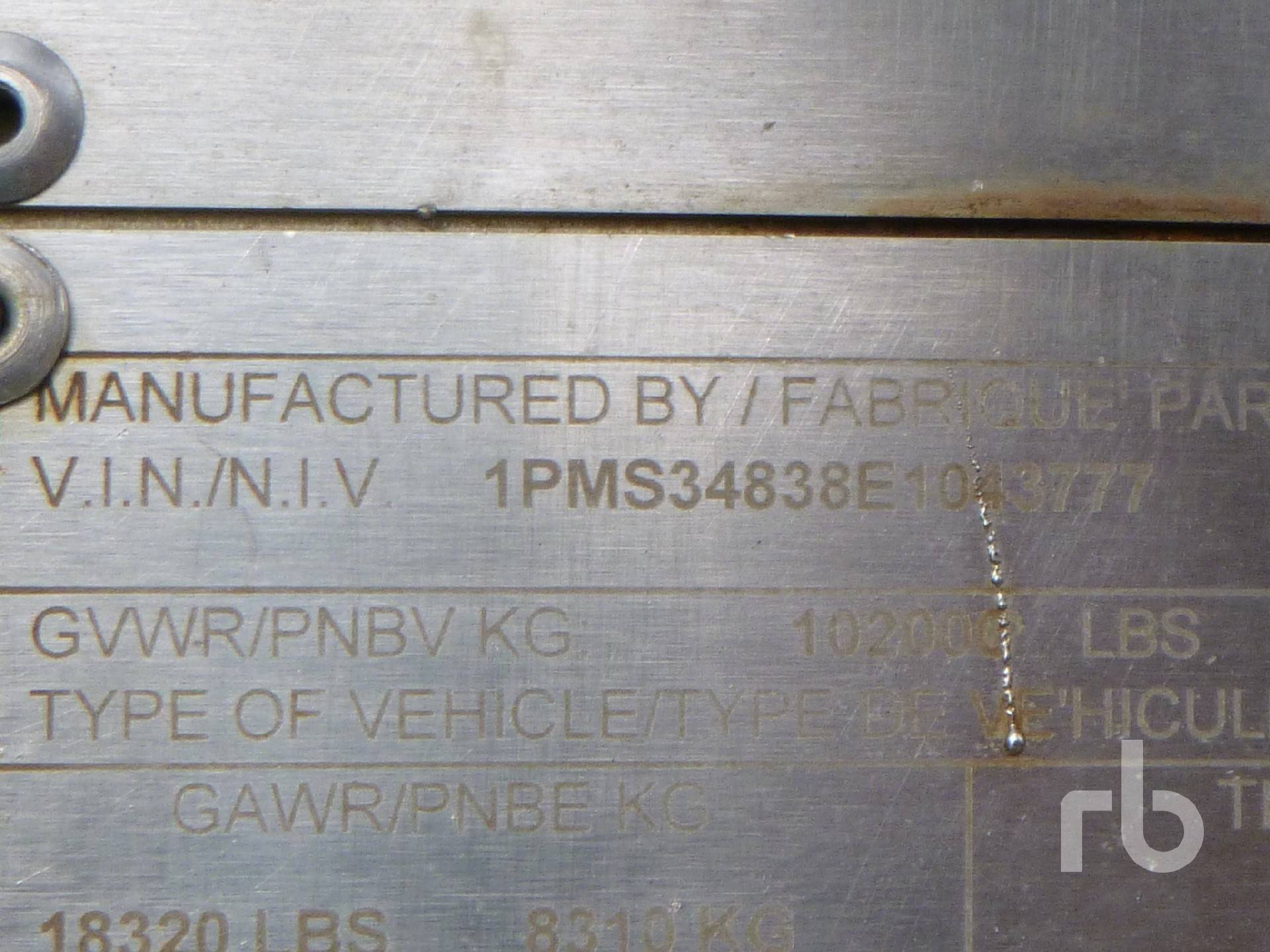

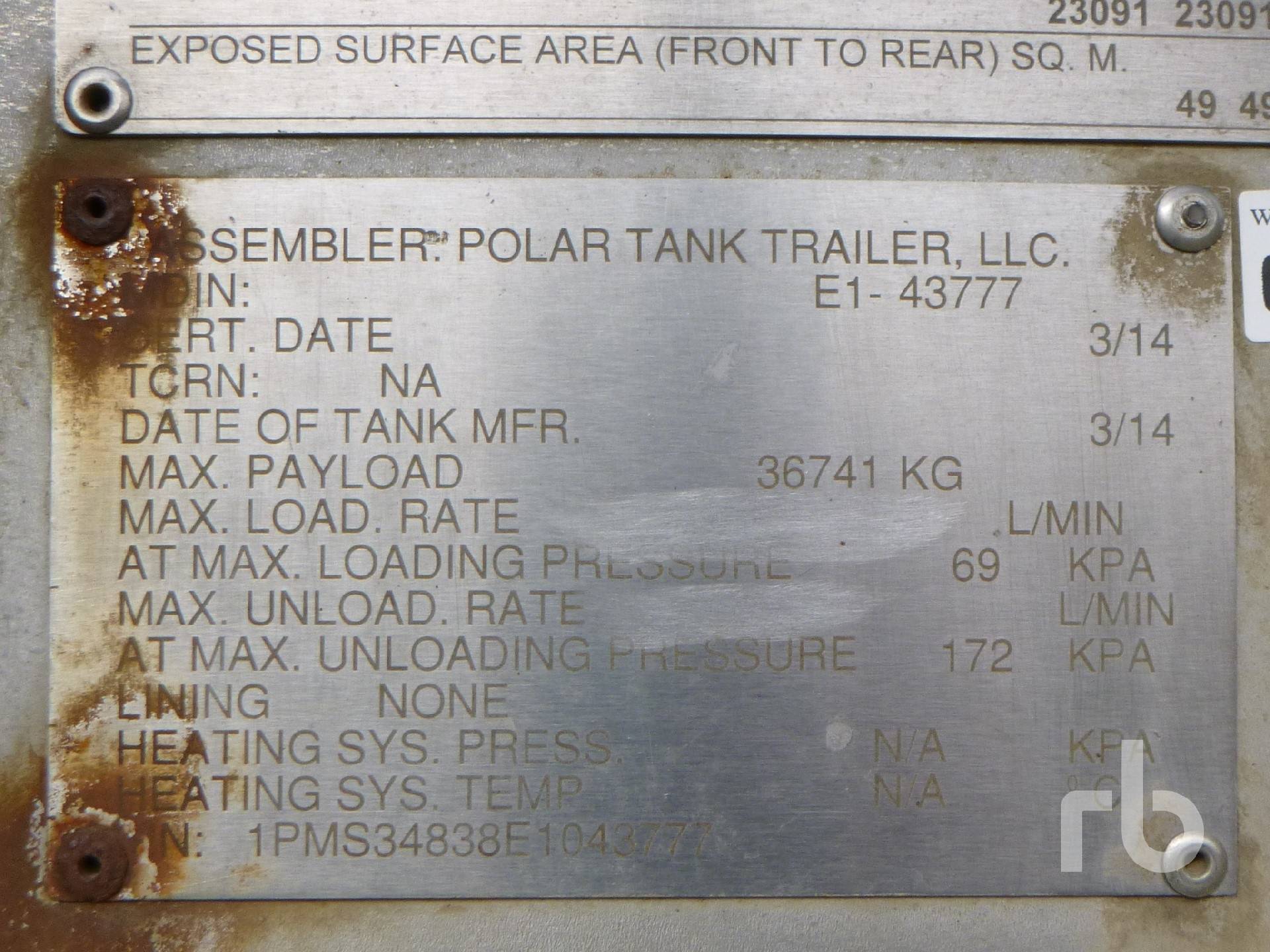

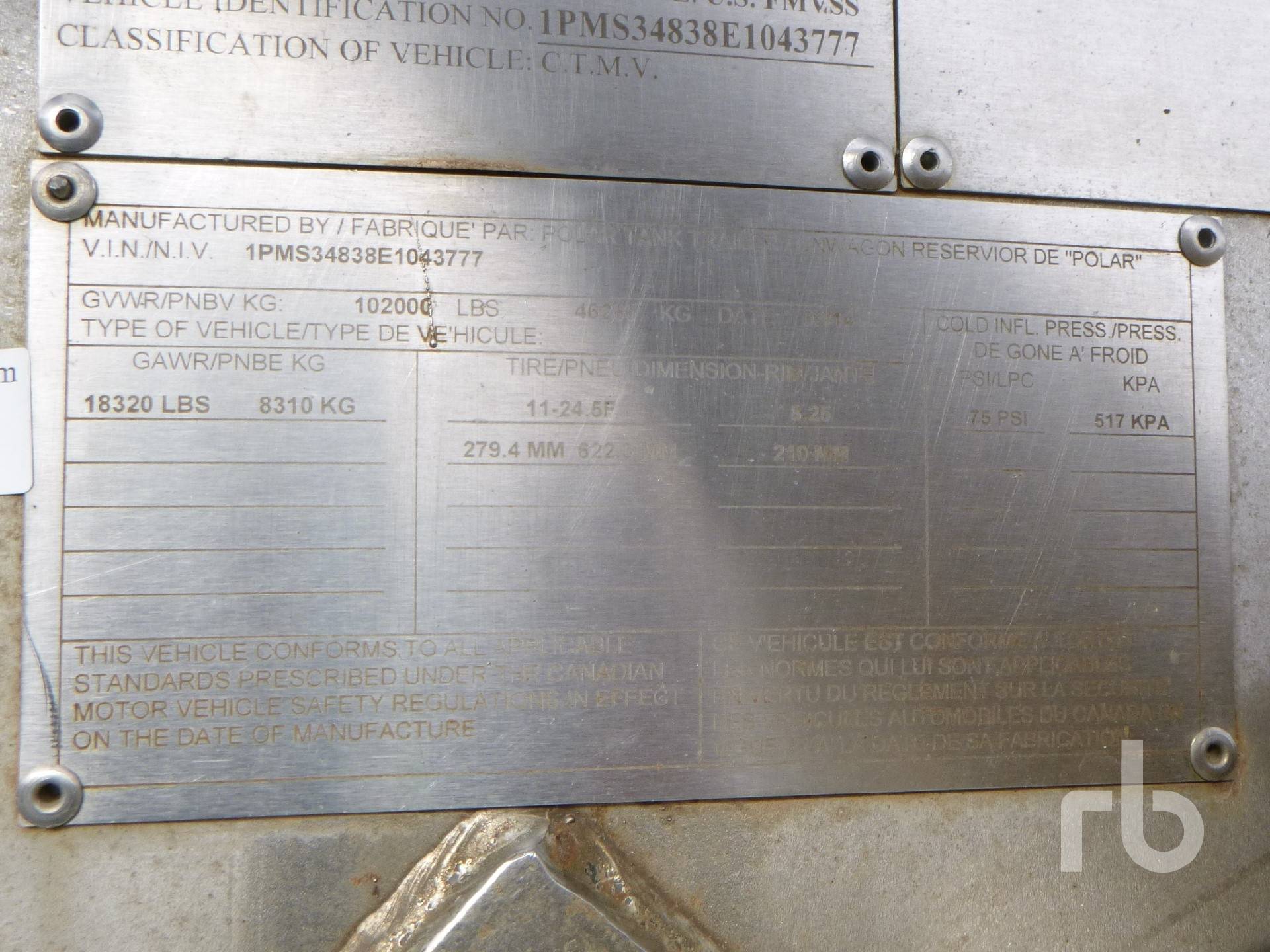

Identification Plate Images
Key Information
- Pic Number
- 619
- Specification
- 407
- Serial Number
- E1-43777
- Manufacturer
- Polar Tank
- MFG Year
- 2014
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 2
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 45.0 psi
- Temperature Range
- -29C to 90C
- Head Material
- T316/T316L SS
- Shell Material
- T316/T316L SS
- Weld Material
- T317L SS
- Total Volume
- 46182 L
- Max Payload
- 36741 kg
- Max Density
- 1.92 kg/L
- GVWR
- 102000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Top Shell | 0.165 | 0.143 |
| Side Shell | 0.165 | 0.143 |
| Bottom Shell | 0.165 | 0.143 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 23091 | 49 |
| 2 | 23091 | 49 |
