412 - 1W9TS3924AL216014
Key Information
- Pic Number
- 622
- Specification
- 412
- Serial Number
- 1W9TS3924AL216014
- Manufacturer
- Worley
- MFG Year
- 2010
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 3

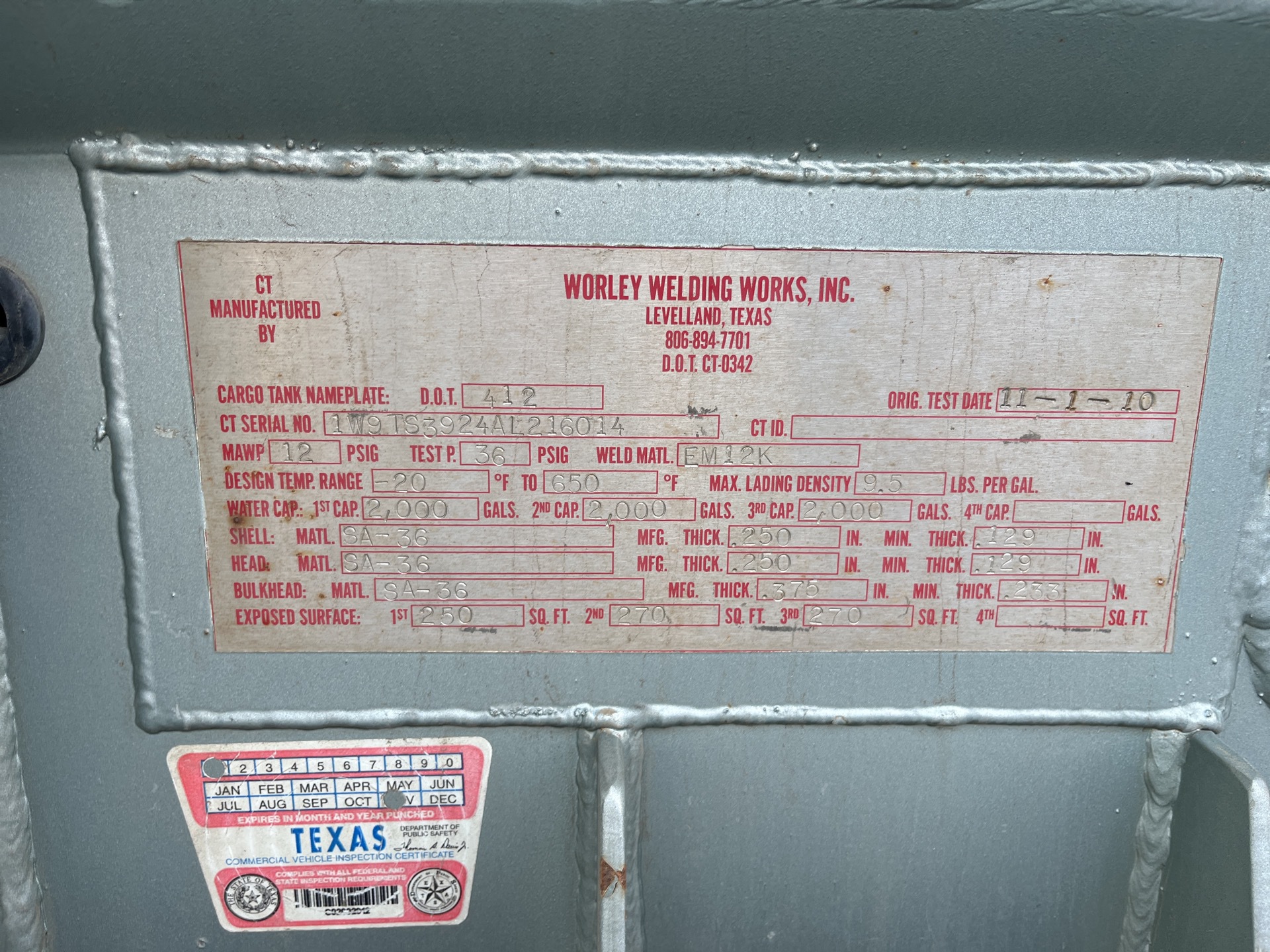

Technical Specifications
- MAWP
- 12.0 psi
- Test Pressure
- 36.0 psi
- Temperature Range
- -20F to 600F
- Head Material
- SA 36
- Shell Material
- SA 36
- Weld Material
- EM12K
- Total Volume
- 22712 L
- Max Payload
- 25855 kg
- Max Density
- 1.14 kg/L

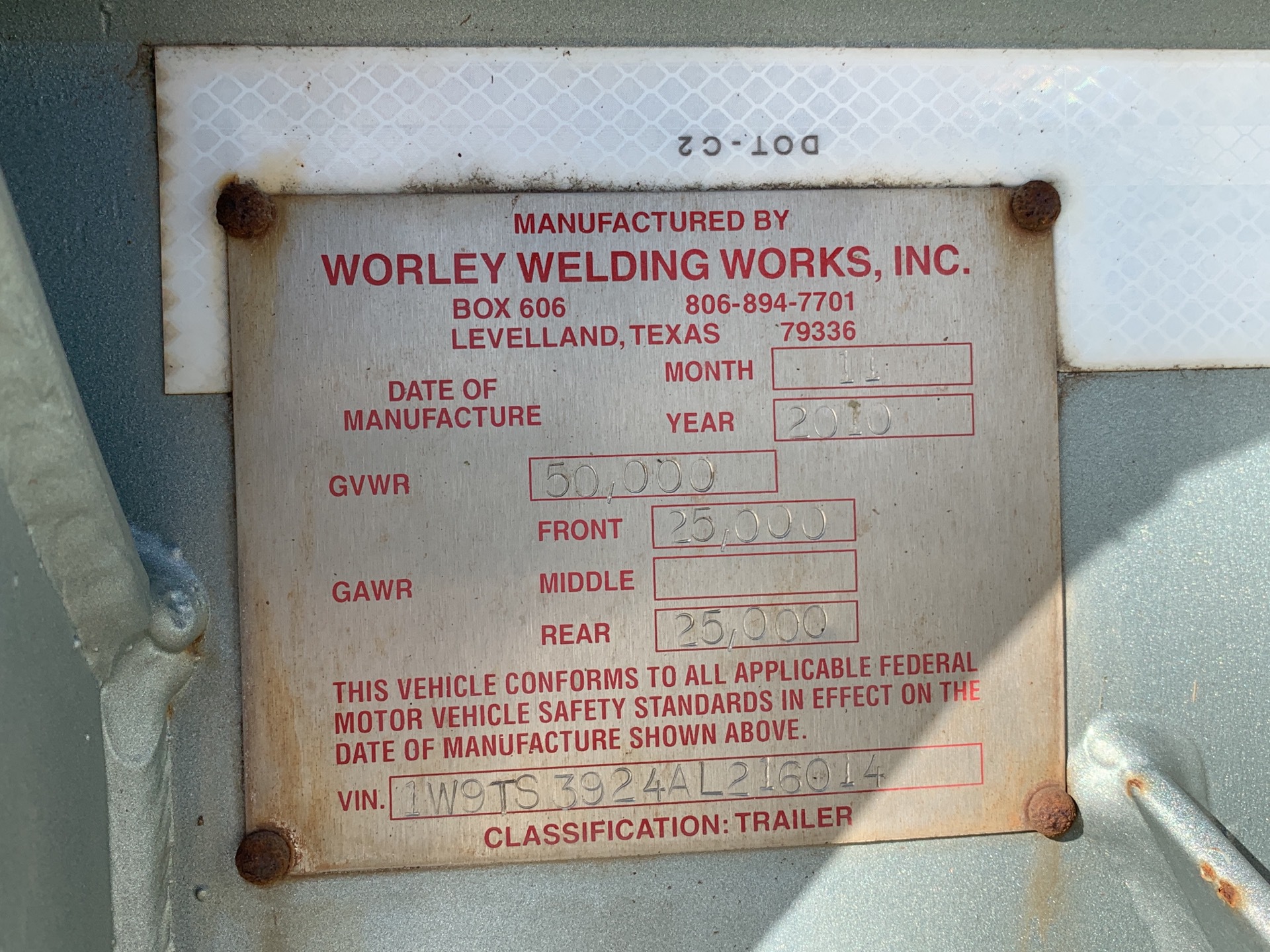

- GVWR
- 50000 lbs
Component Thickness Details
Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
---|---|---|
Head | 0.25 | 0.129 |
Shell | 0.25 | 0.129 |
Compartment Details
Compartment | Volume (L) | Exposed Surface (sq.m) |
---|---|---|
1 | 7571 | 23.2 |
2 | 7571 | 25.1 |
3 | 7571 | 25.1 |
