412 - 10BGB62T6YF0B1589

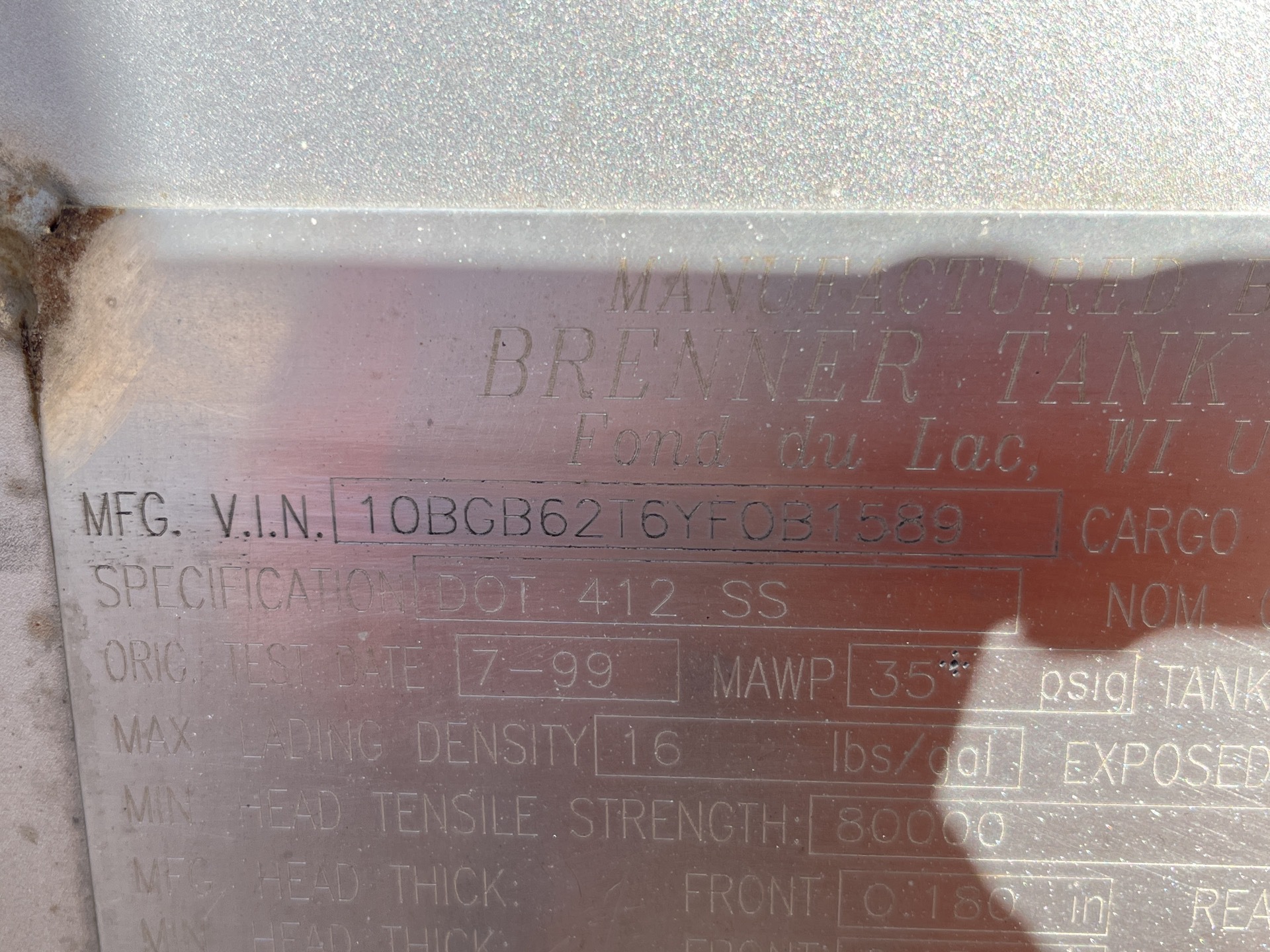

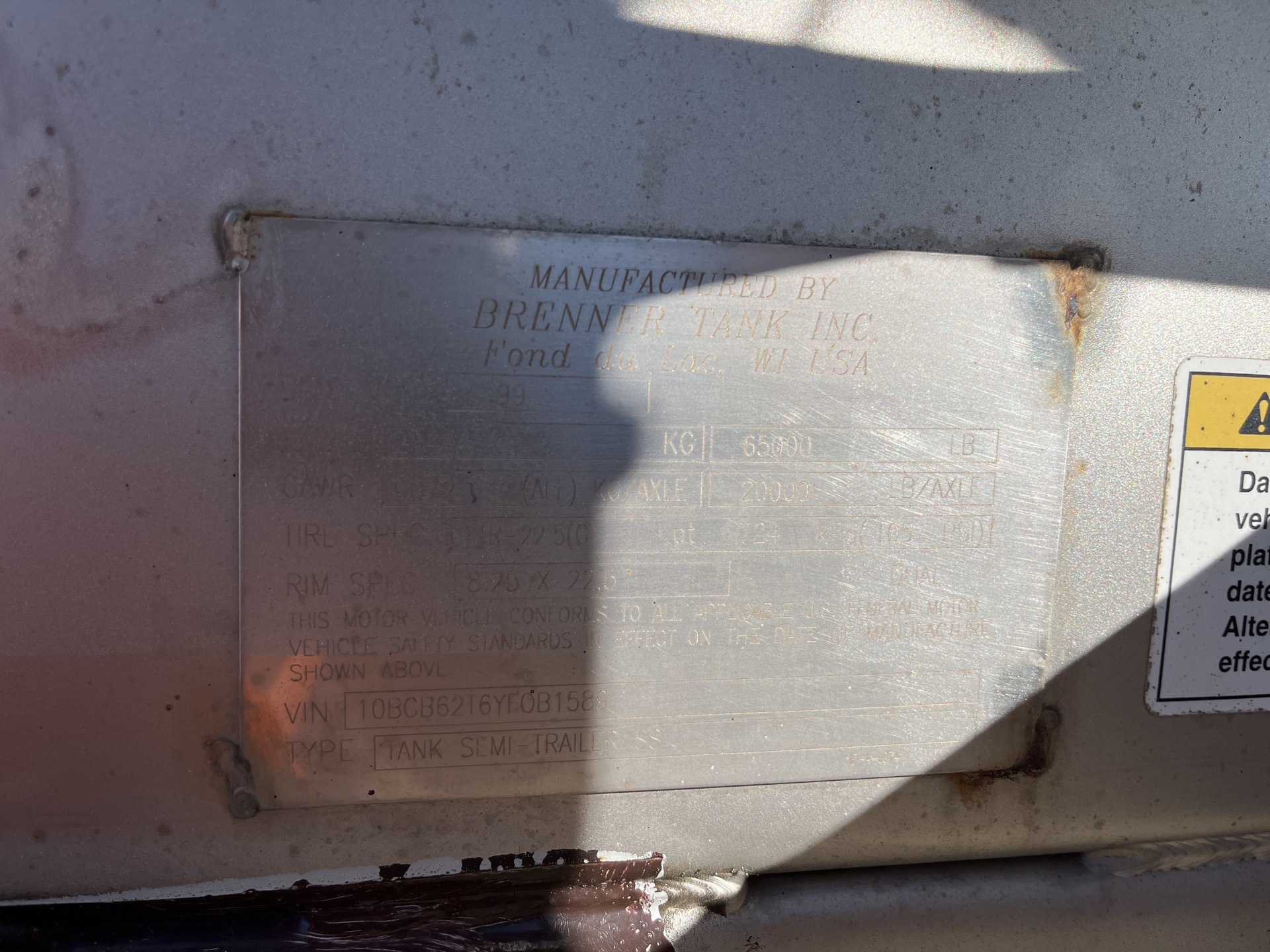

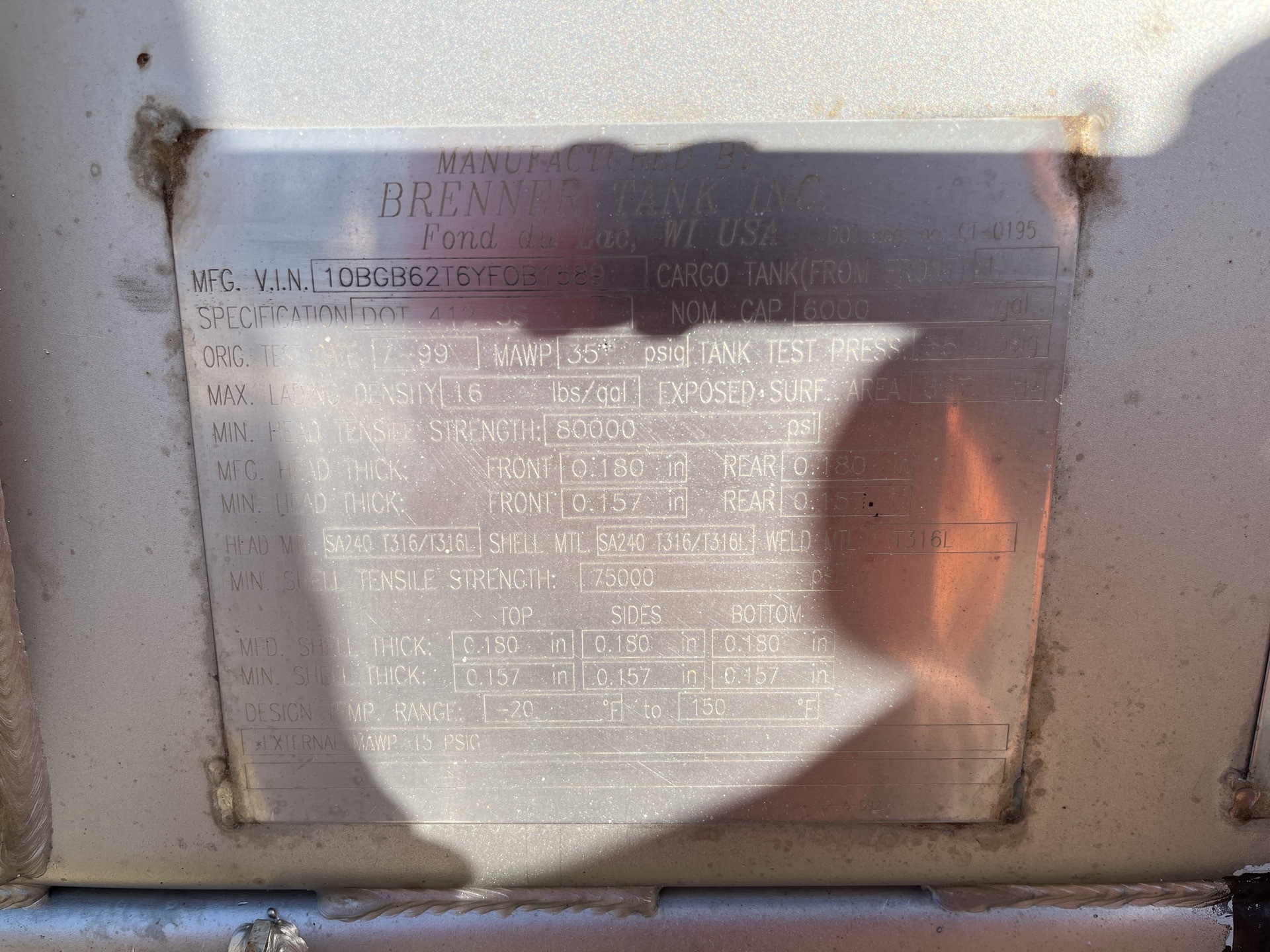

Identification Plate Images
Key Information
- Pic Number
- 623
- Specification
- 412
- Serial Number
- 10BGB62T6YF0B1589
- Manufacturer
- Brenner
- MFG Year
- 1999
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 35.0 psi
- Test Pressure
- 55.0 psi
- Temperature Range
- -20F to 150F
- Head Material
- SA-240 T316/T316L
- Shell Material
- SA-240 T316/T316L
- Weld Material
- T316L
- Total Volume
- 22712 L
- Max Payload
- 21863 kg
- Max Density
- 1.92 kg/L
- GVWR
- 65000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.18 | 0.157 |
| Top Shell | 0.18 | 0.157 |
| Side Shell | 0.18 | 0.157 |
| Bottom Shell | 0.18 | 0.157 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 22712 | 62 |
