412 - 10BGC52U6YM0M2566

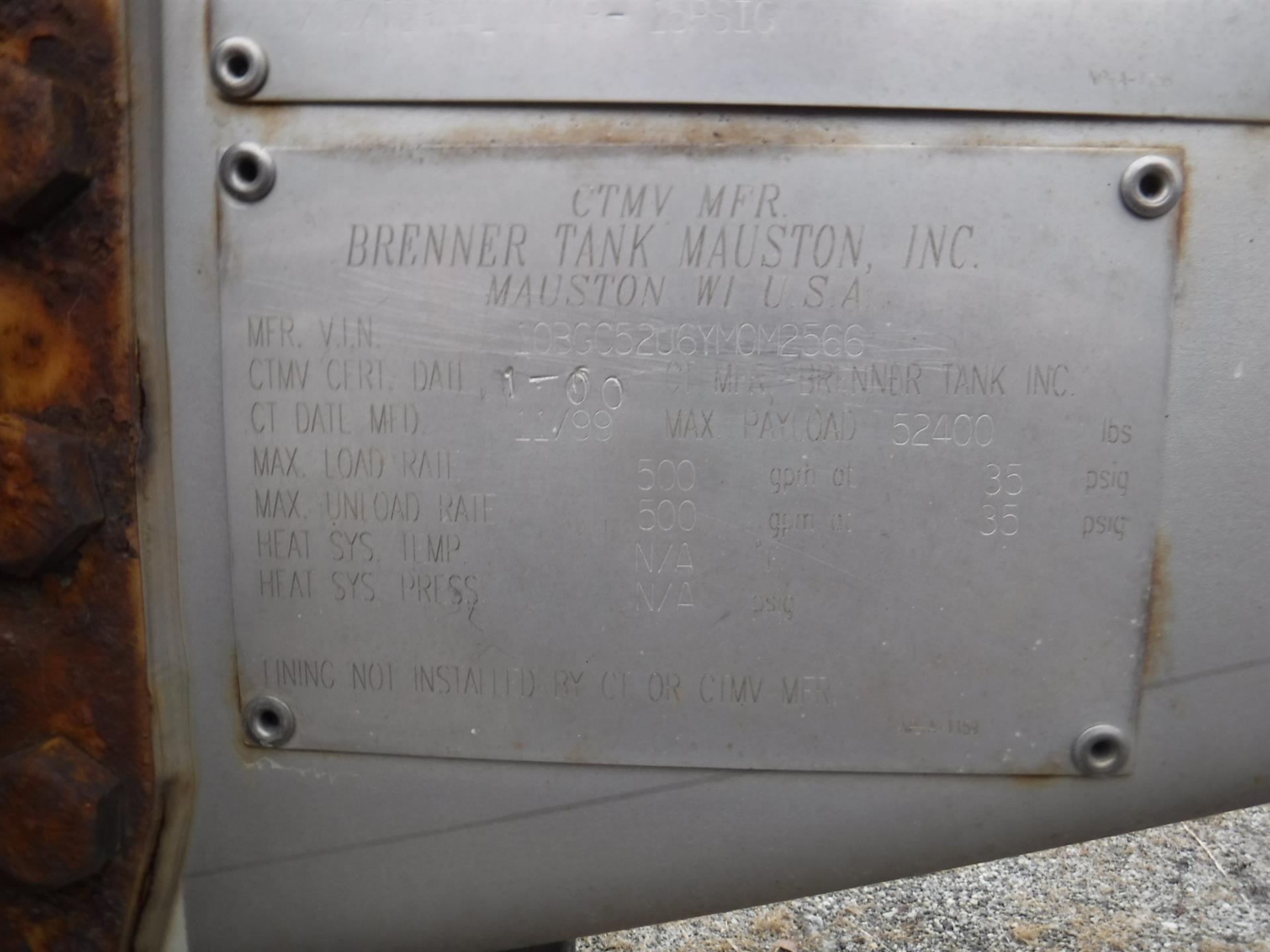

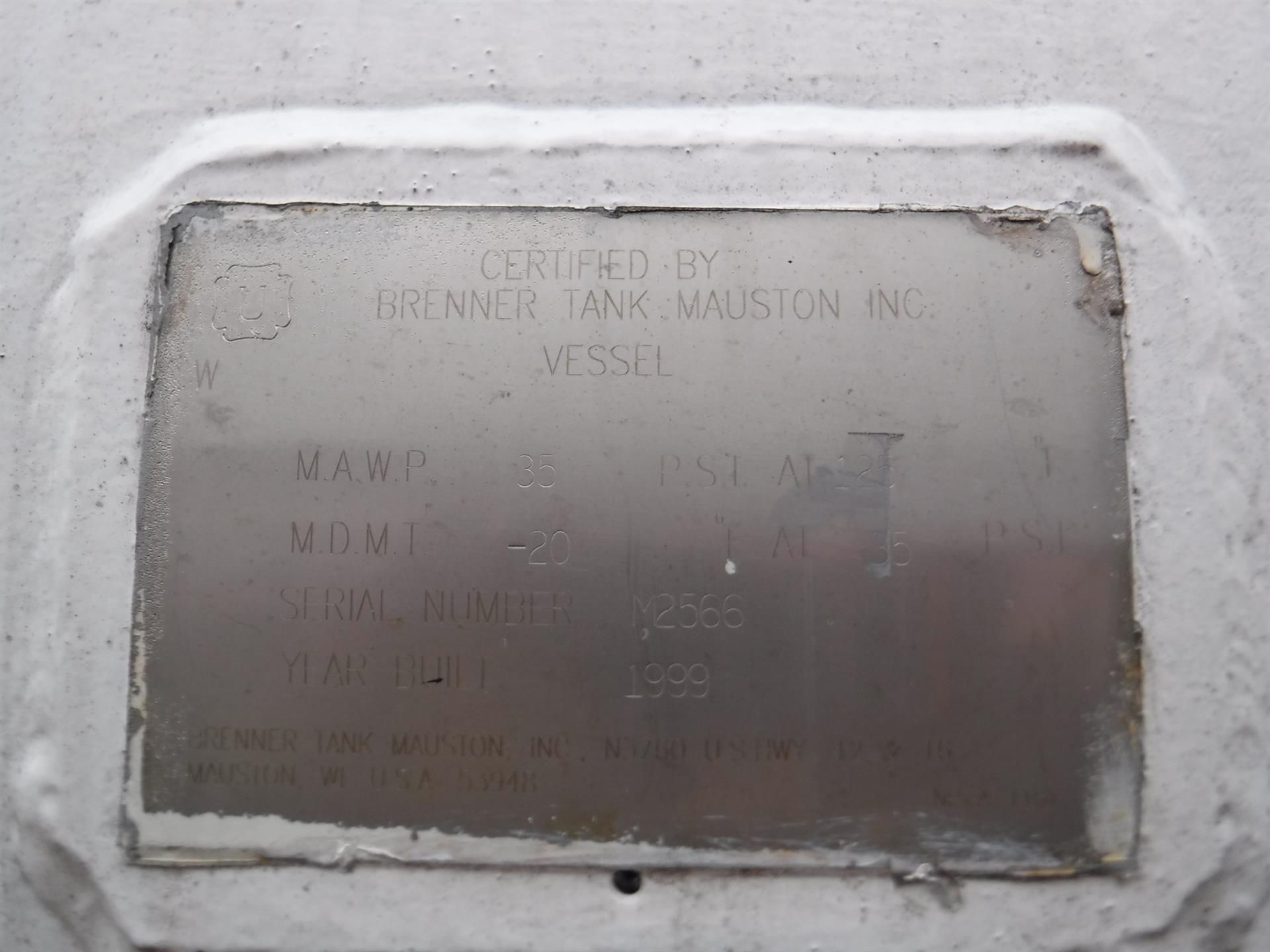

Identification Plate Images
Key Information
- Pic Number
- 624
- Specification
- 412
- Serial Number
- 10BGC52U6YM0M2566
- Manufacturer
- Brenner
- MFG Year
- 1999
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 35.0 psi
- Test Pressure
- 55.0 psi
- Temperature Range
- -20F to 125F
- Head Material
- SA 516-70
- Shell Material
- SA414-G
- Weld Material
- ER70S-6
- Total Volume
- 18927 L
- Max Payload
- 23768 kg
- Max Density
- 1.92 kg/L
- GVWR
- 65000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.22 | 0.187 |
| Top Shell | 0.18 | 0.157 |
| Side Shell | 0.18 | 0.157 |
| Bottom Shell | 0.18 | 0.157 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 18927 | 57.9 |
