412 - 1W9TS39241L216059

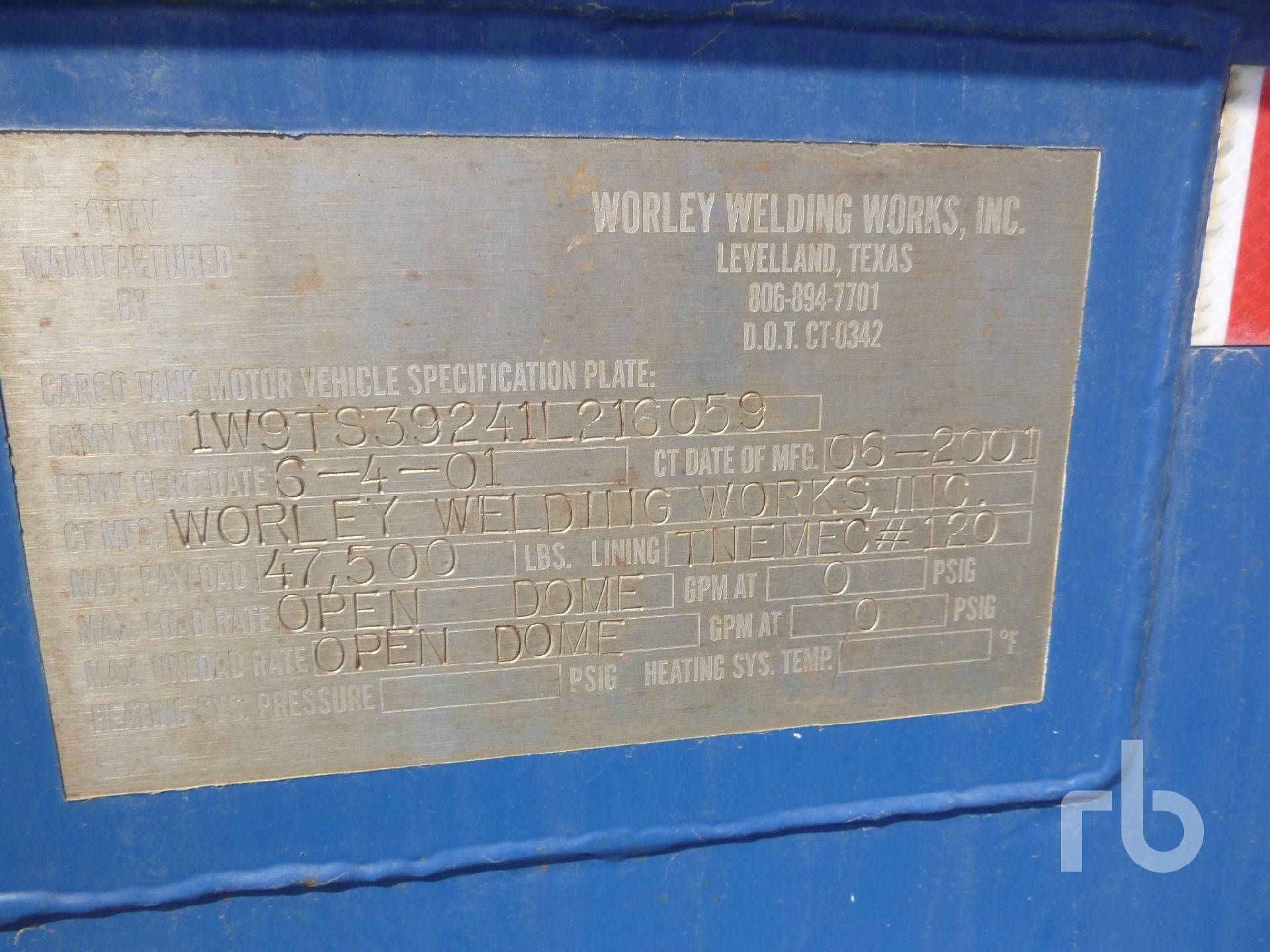

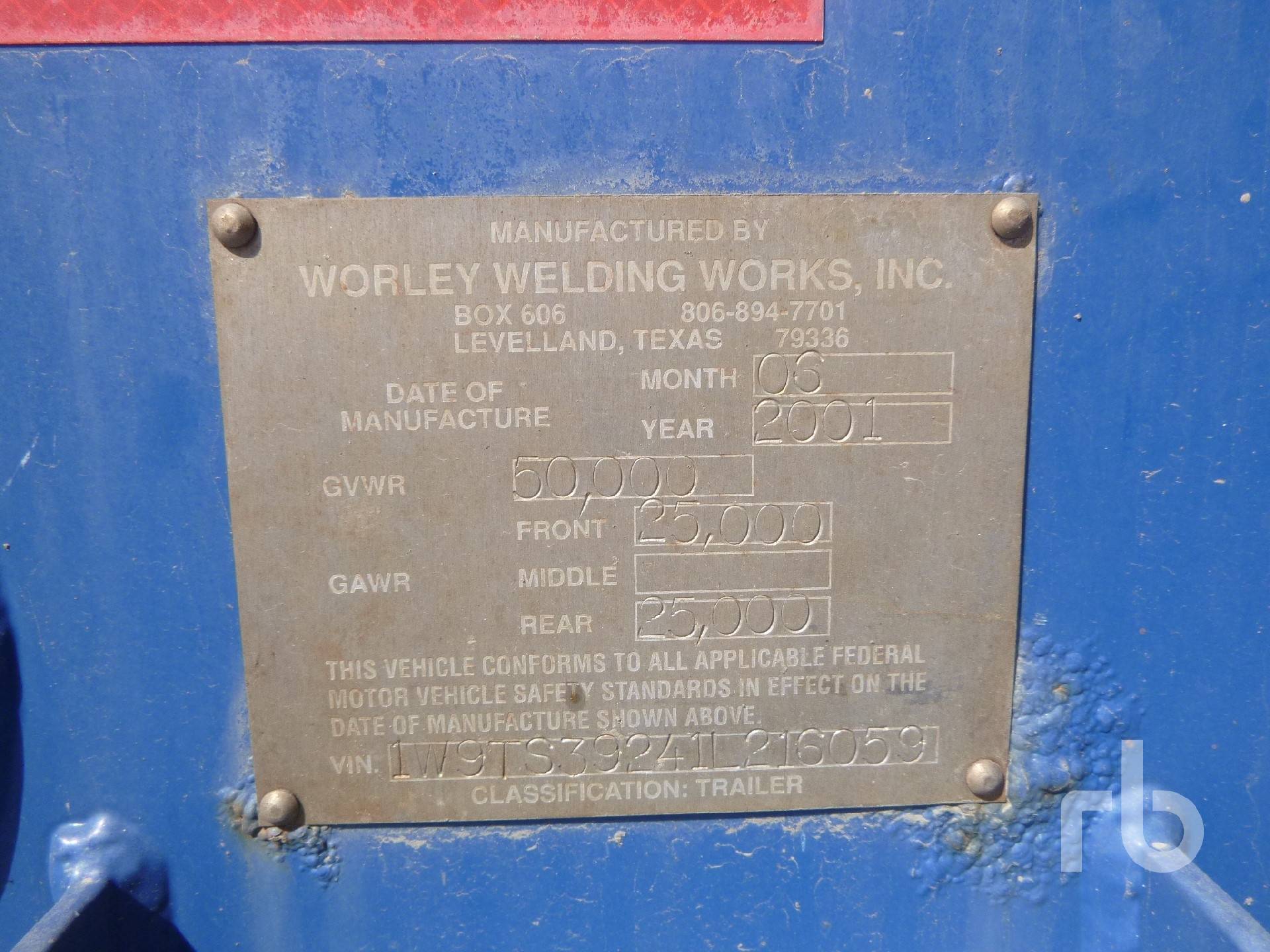

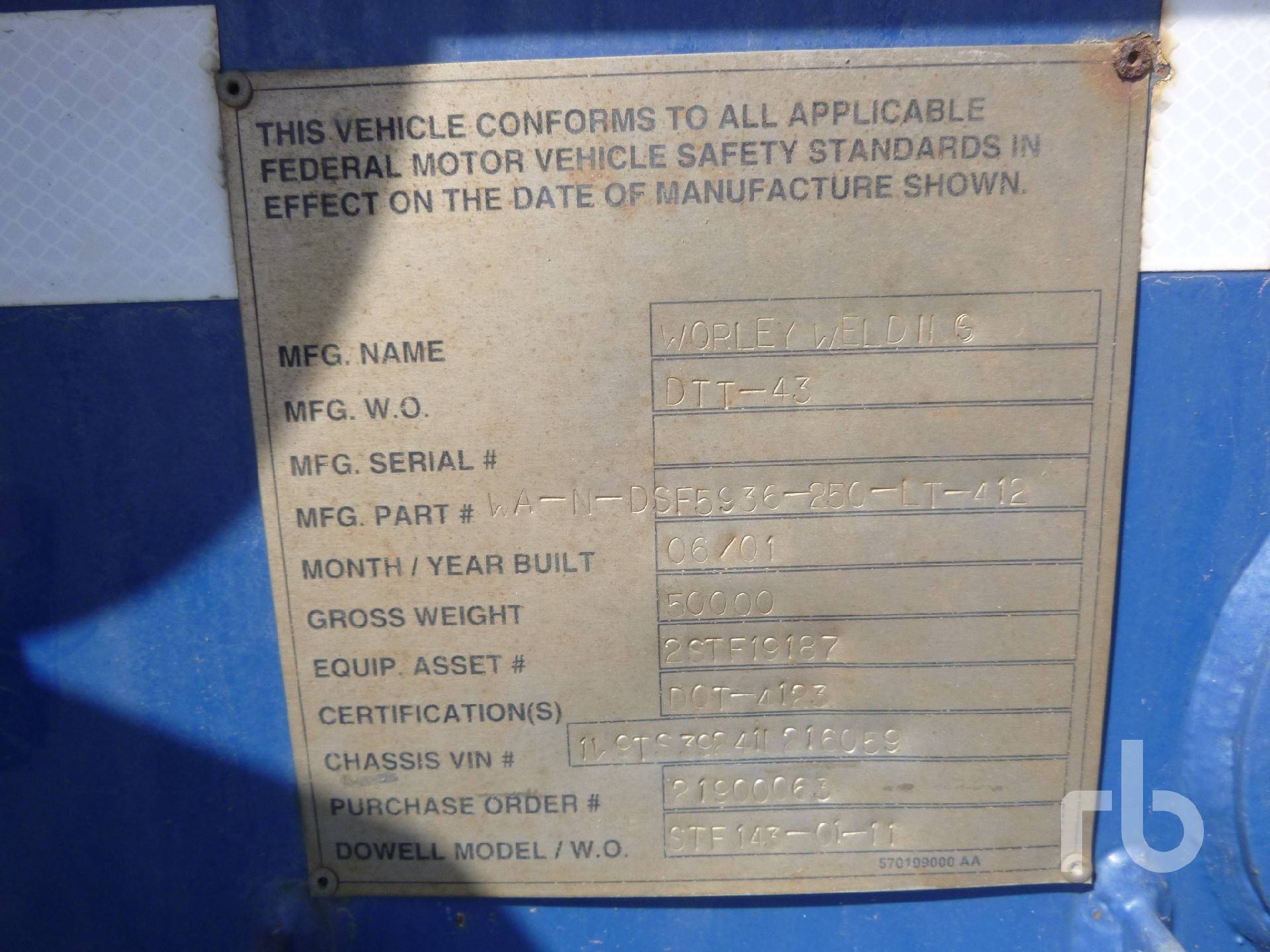

Identification Plate Images
Key Information
- Pic Number
- 625
- Specification
- 412
- Serial Number
- 1W9TS39241L216059
- Manufacturer
- Worley
- MFG Year
- 2001
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 2
Technical Specifications
- MAWP
- 12.0 psi
- Test Pressure
- 36.0 psi
- Temperature Range
- -20F to 650F
- Head Material
- SA 36
- Shell Material
- SA 36
- Weld Material
- EM12K
- Total Volume
- 18927 L
- Max Payload
- 21546 kg
- Max Density
- 1.14 kg/L
- GVWR
- 50000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.129 |
| Shell | 0.25 | 0.129 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 9464 | 30.7 |
| 2 | 9464 | 30.7 |
