412 - 7987

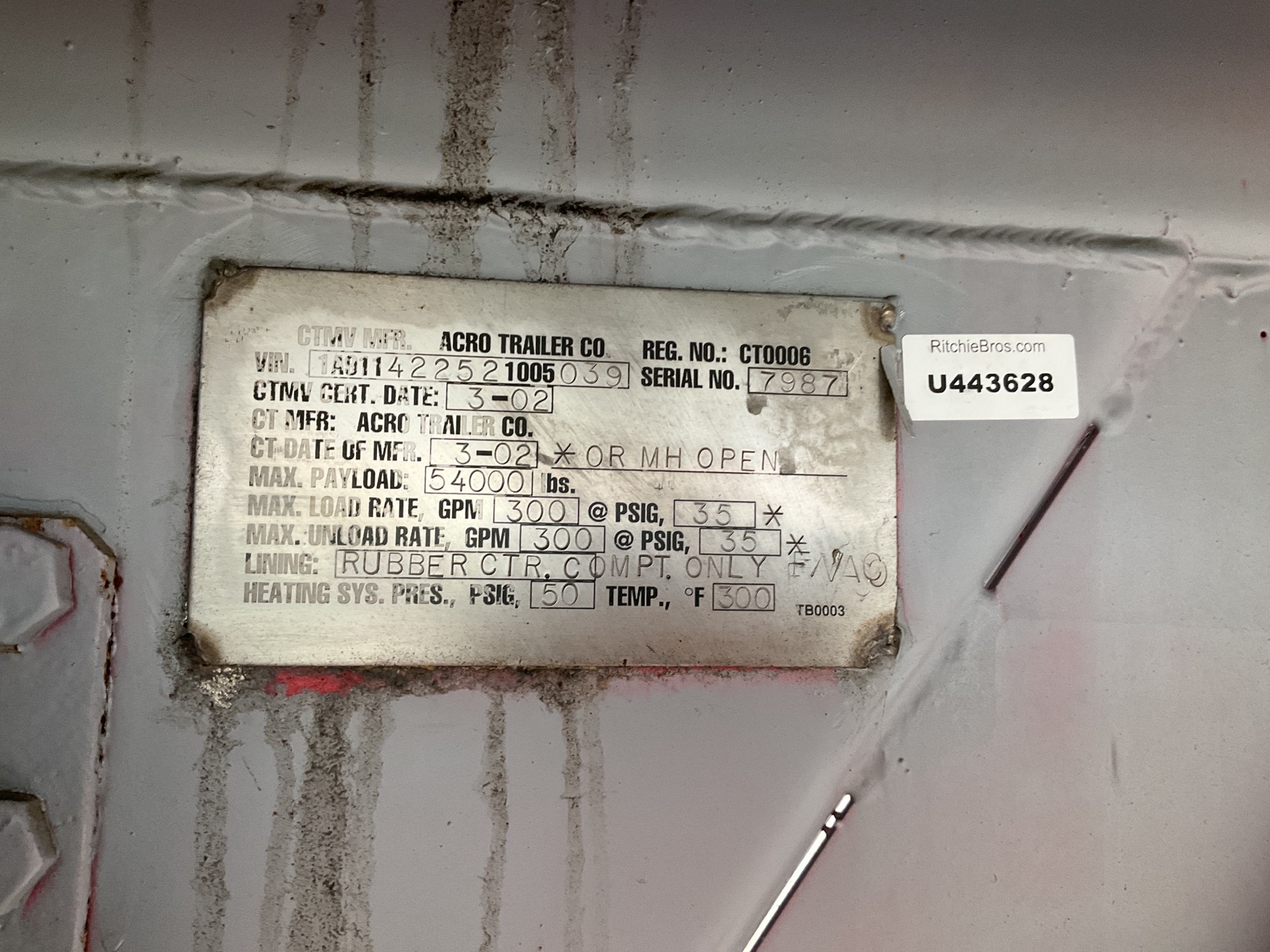

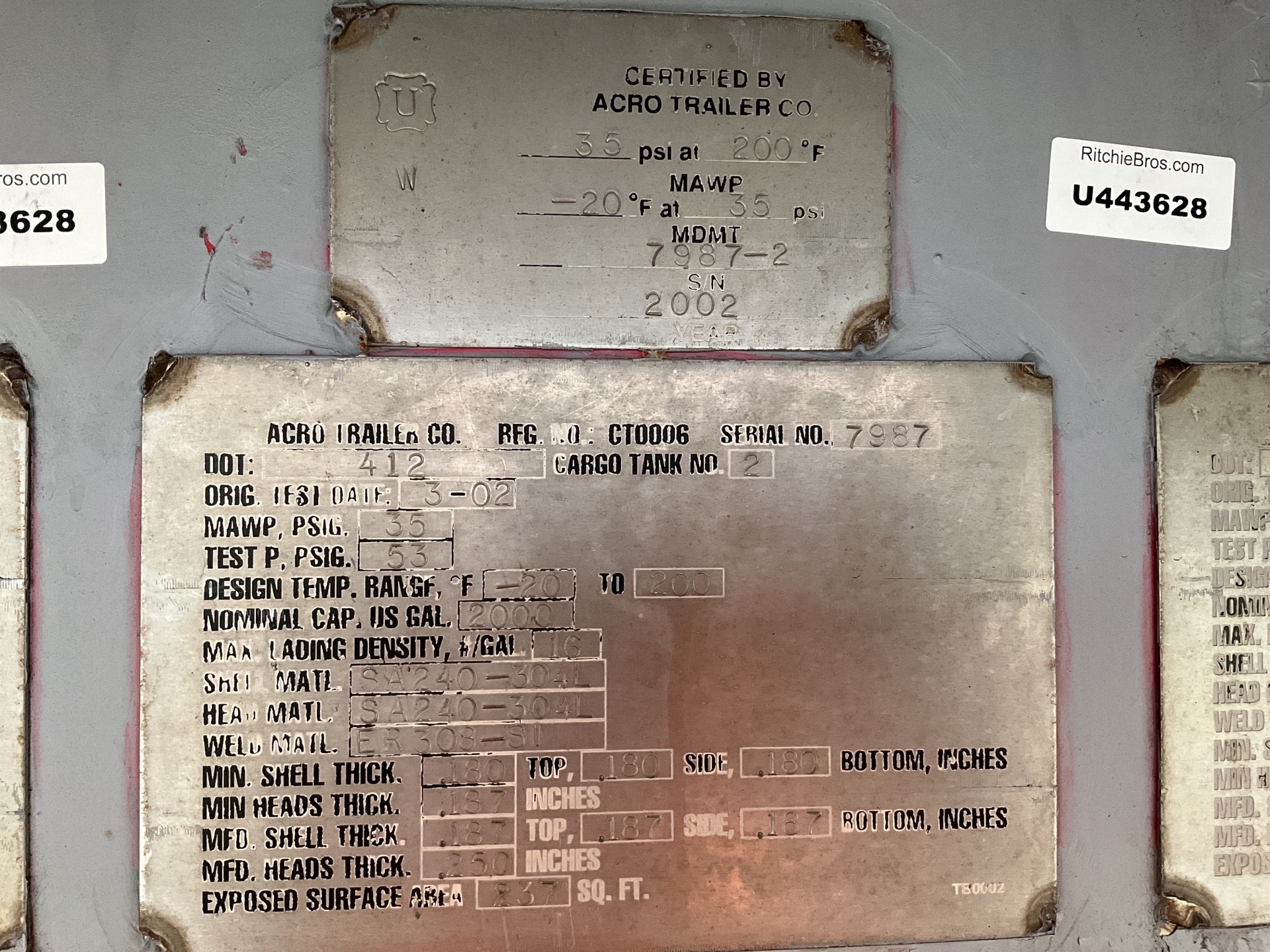

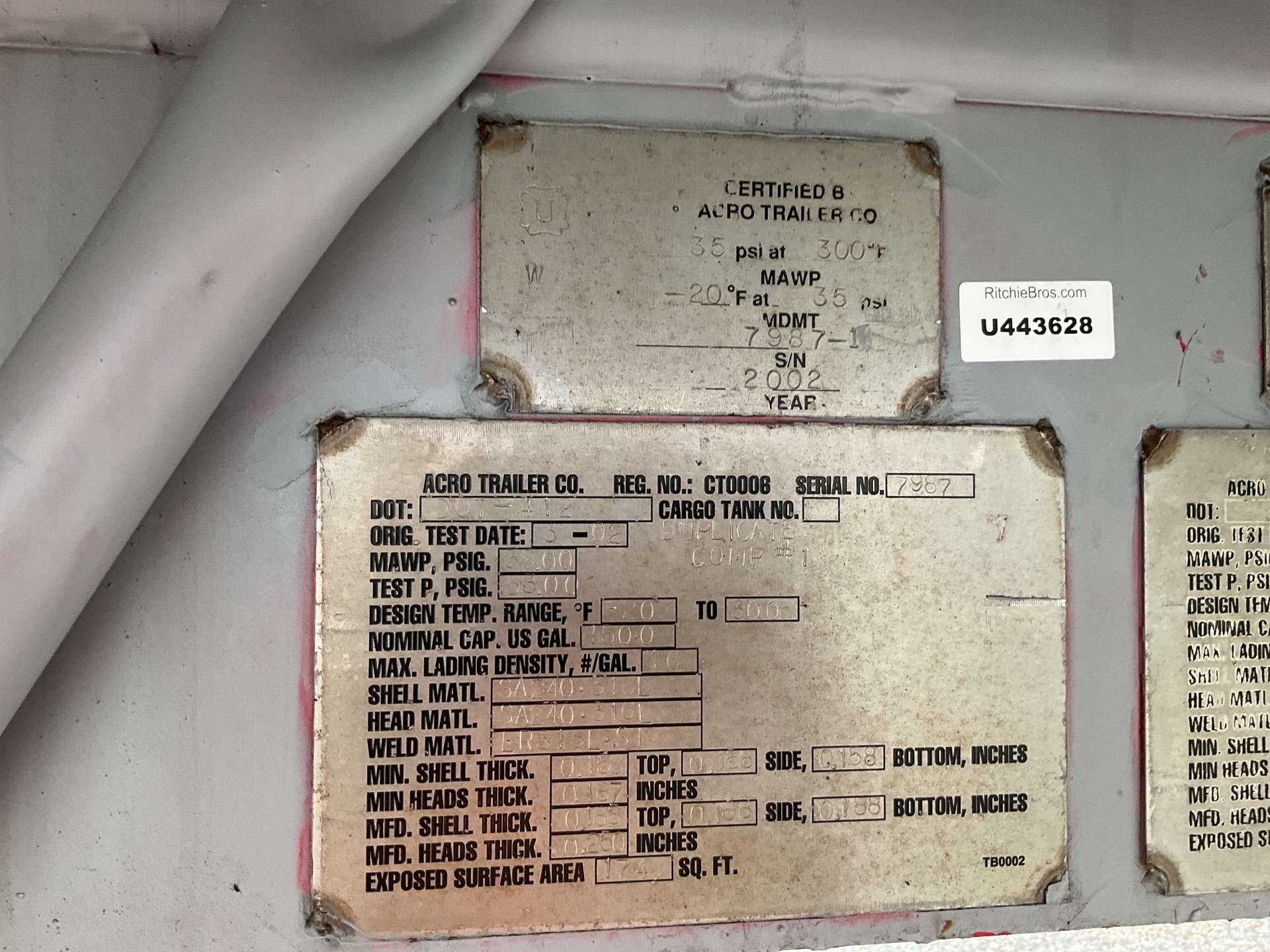

Identification Plate Images
Key Information
- Pic Number
- 626
- Specification
- 412
- Serial Number
- 7987
- Manufacturer
- Acro Trailer Co.
- MFG Year
- 2002
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 3
Technical Specifications
- MAWP
- 35.0 psi
- Test Pressure
- 53.0 psi
- Temperature Range
- -20F to 200F
- Head Material
- SA-240 304L
- Shell Material
- SA-240 304L
- Weld Material
- ER 308 SI
- Total Volume
- 18927 L
- Max Payload
- 24494 kg
- Max Density
- 1.92 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.187 |
| Top Shell | 0.187 | 0.18 |
| Side Shell | 0.187 | 0.18 |
| Bottom Shell | 0.187 | 0.18 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 5678 | 16.2 |
| 2 | 7571 | 22 |
| 3 | 5678 | 16.2 |
